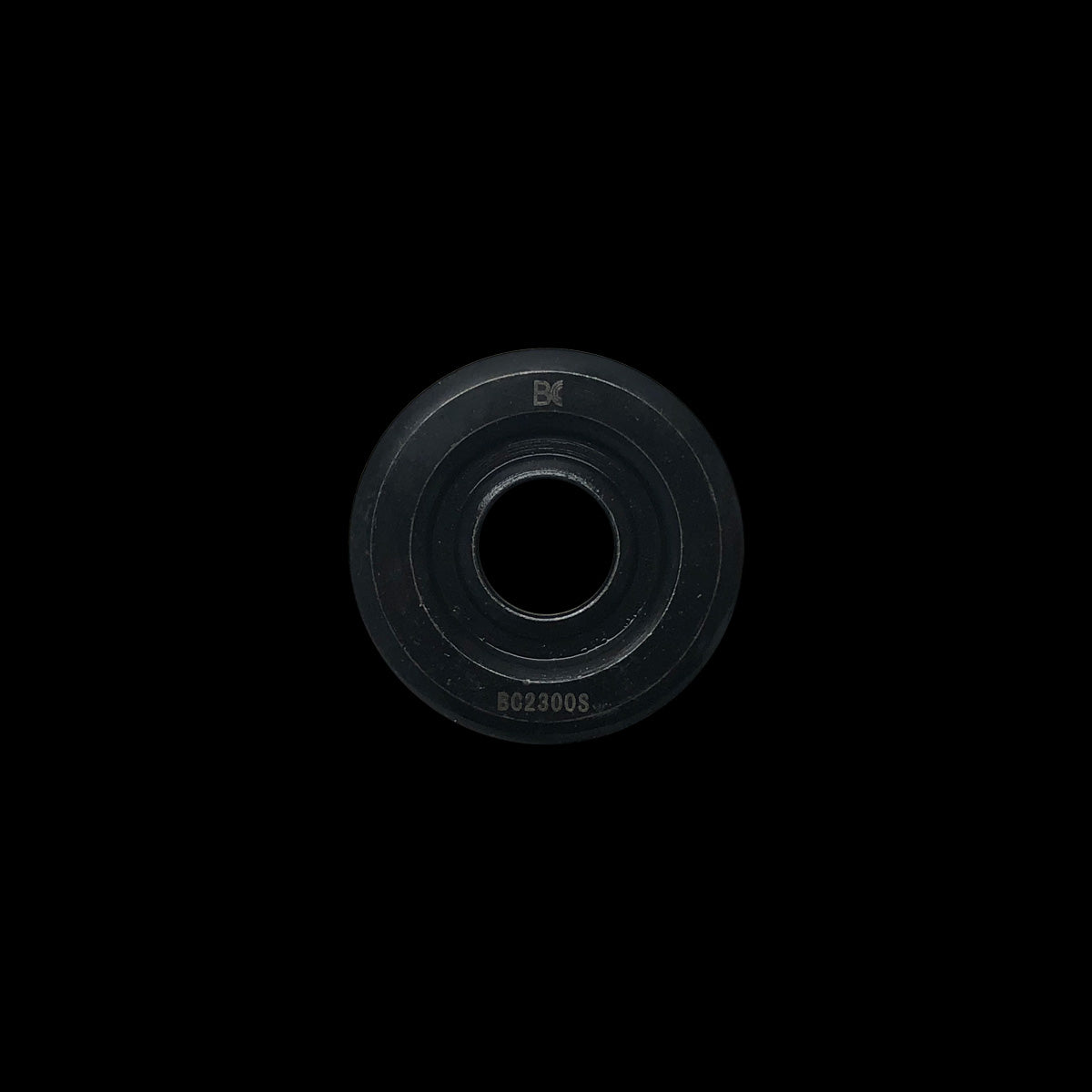

BC2300S-1 – Steel Retainer – (Subaru EJ205-WRX / EJ257-STi, Toyota 3SGTE, 2JZGTE/GE)

In the realm of high-RPM, high-output engine builds, the valvetrain is the critical frontier between contained chaos and catastrophic failure. Every component, from the cam lobe to the valve tip, must operate with absolute precision under immense kinetic stress. The BC2300S-1 Chromoly Steel Valve Retainer Set from Brian Crower is not merely a replacement part; it is a foundational upgrade engineered to transform the valvetrain from a system under duress into a pillar of relentless stability. Designed explicitly for the punishing environments of turbocharged Subaru EJ-series and Toyota inline-six and four-cylinder engines, this retainer set addresses the fundamental limitations of stock and inferior aftermarket components. Its mission is singular: to provide an immutable, lightweight lock for the valve spring, ensuring consistent valve timing, preventing valve float, and safeguarding your entire engine investment when the boost climbs and the tachometer needle sweeps into the redline. This is engineering for those who understand that peak performance is built not on horsepower figures alone, but on the millimeter-perfect reliability of every moving part.

Engineering for Absolute Valvetrain Integrity

Valve retainers are deceptively simple components with a profoundly complex job. They are the final mechanical link in the chain controlling the valve’s motion, responsible for transferring the spring’s closing force to the valve stem. Under high-lift, high-RPM conditions, especially in forced-induction applications, inertial forces attempt to overcome the spring, leading to valve float. When this occurs, the valve fails to follow the cam profile, timing is lost, and in severe cases, piston-to-valve contact can result in total engine destruction. The BC2300S-1 is engineered to combat this through a combination of superior material science and precision machining. Its design focuses on minimizing mass—reducing the inertial load on the spring—while maximizing tensile strength and fatigue resistance. This allows your valve springs to perform their job more effectively, controlling the valve aggressively at higher RPM limits than stock retainers can reliably permit, thereby unlocking the true potential of aggressive camshaft profiles and elevated rev limits.

The Superiority of 8640 Chromoly Steel

The choice of material is what separates a performance component from a genuine competition-grade part. Brian Crower selects SAE 8640 chromoly steel for the BC2300S-1 retainers. This alloy, a staple in aerospace and motorsports, offers an exceptional strength-to-weight ratio. The inclusion of chromium and molybdenum enhances hardenability, core strength, and resistance to fatigue and impact—properties paramount in a component subjected to billions of load cycles. Unlike brittle titanium or softer materials, 8640 chromoly provides a perfect balance: it is significantly stronger and more durable than stock pressed-steel or powder-metal retainers, yet it maintains the ductility to withstand shock loads without fracturing. Each retainer is precision CNC-machined from solid bar stock, not cast or forged, ensuring grain structure integrity and perfect dimensional consistency from batch to batch. This machining process guarantees that the critical lock groove geometry and seating surface for the spring are flawless, providing uniform load distribution and eliminating potential points of stress concentration that could lead to failure. For a deeper dive into the metallurgy behind performance engine components, consider this resource on the role of chromoly steel in motorsports.

Definitive Benefits of the BC2300S-1 Retainer Set

• Unmatched Strength & Durability: Manufactured from SAE 8640 chromoly steel, these retainers exhibit superior tensile strength and fatigue resistance compared to OEM or cheaper aftermarket alternatives, providing peace of mind in extreme operating conditions.
• Optimized Lightweight Design: Precision CNC machining removes unnecessary mass, reducing valvetrain inertia. This allows valve springs to respond faster, helping to control valve float at higher engine speeds and extending spring life.
• Precision Engineered for Fitment: Each retainer is machined to exacting tolerances, ensuring a perfect snap-ring fit in the valve stem groove and a flat, consistent seating surface for the valve spring. This eliminates wobble and ensures uniform load transfer.
• Enhanced RPM Capability: By pairing these retainers with appropriate high-performance valve springs, you effectively raise the engine’s practical RPM ceiling, safely enabling more aggressive tuning and cam profiles for increased power.
• Direct, No-Hassle Application: Designed as a direct replacement for OEM retainers, the BC2300S-1 set requires no machining or modification for correct installation on the specified valve stems, making it a cornerstone upgrade for any serious build.

Vehicle Fitment: Precision Application for Legendary Engines

The BC2300S-1 is not a universal part; it is specifically engineered for compatibility with the valve stem diameters and lock groove configurations of some of the most iconic performance engines. Correct fitment is critical for safety and performance. Below is the definitive application list. It is the installer’s responsibility to verify valve stem diameter and lock type before installation.

Subaru EJ-Series Turbo Applications

EJ205 (WRX): 2002-2005 USDM Subaru Impreza WRX (non-STi). Critical for builds targeting increased boost and RPM.
EJ255 & EJ257 (STi): 2004-2021 USDM Subaru Impreza WRX STi, Forester XT, and Legacy GT models. Essential for supporting big turbo, high-lift cam, and high-RPM builds where valvetrain stability is non-negotiable.

Toyota & Lexus Inline-Six and Turbo-Four Applications

2JZ-GE & 2JZ-GTE: The legendary Toyota Supra (1993-1998 2JZ-GTE; 1993-2002 2JZ-GE) and Lexus SC300/GS300/IS300 engines. A fundamental upgrade for NA-T conversions, single turbo upgrades, and any build pushing the limits of the 2JZ platform.
3S-GTE: The turbocharged heart of the Toyota MR2 (1991-1995 SW20) and Celica All-Trac (1988-1993). Vital for modernizing the valvetrain in high-power, rev-happy 3S-GTE builds.

Technical Specifications & Installation Notes

Critical Installation Advisory: Valve retainers are a safety-critical component. Installation must be performed by a qualified mechanic using proper valve spring compressor tools. Always inspect valve stem grooves and matching locks (e.g., Brian Crower BC-1600 series locks) for wear or damage before assembly. These retainers are designed to be used with high-performance valve springs matched to your camshaft profile. Using stock springs with these retainers negates their performance benefit and is not recommended for modified engines. Torque cylinder head bolts to factory specifications after valvetrain assembly and always perform a proper break-in procedure.
