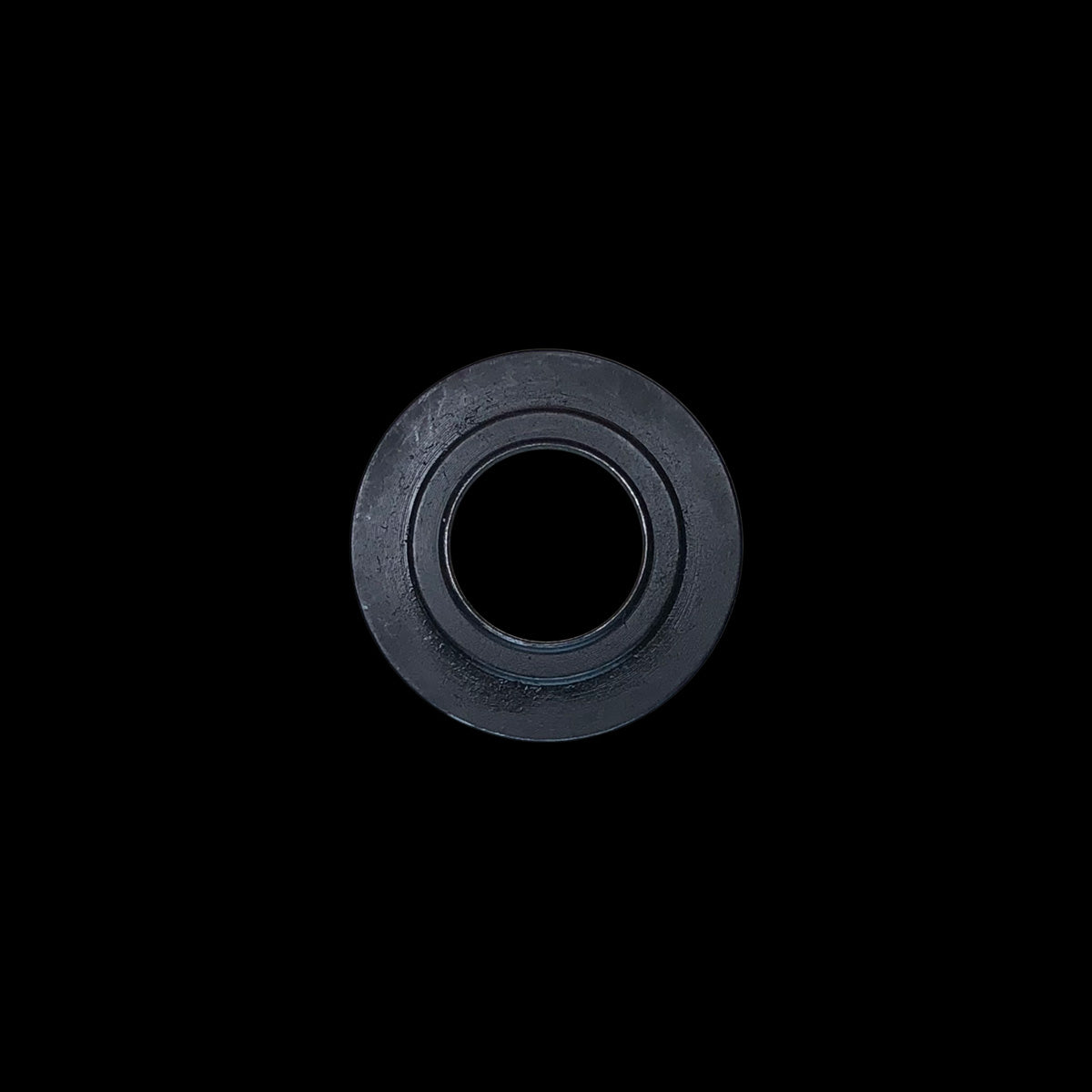

BC2939-1 – Spring Seat – (Subaru FA20/Toyota 4UGSE for Dual Spring Kit) – 1 only

In the relentless pursuit of engine performance, where every revolution counts and valve float is the enemy of power, the valve train stands as a critical frontier. For builders of the high-revving Subaru FA20 DIT and Toyota 2UR-GSE (4UGSE) engines, achieving stable, reliable valve control at elevated RPMs necessitates a fundamental upgrade: the dual valve spring kit. At the heart of this upgrade’s integrity lies a component often overlooked—the spring seat. The Brian Crower BC2939-1 Spring Seat is not a mere spacer; it is a precision-machined, chromoly steel foundation engineered to transform your dual spring kit from a simple parts collection into a fully realized, harmonic valve train system. This single component ensures the immense forces of your upgraded springs are distributed evenly and transmitted correctly into the cylinder head, preventing seat wear, maintaining alignment, and safeguarding your investment in high-performance valvetrain components. For the discerning builder who understands that durability is the true measure of performance, the BC2939-1 is an essential, non-negotiable piece of the puzzle.

Engineering the Foundation: The Role of the Spring Seat

To appreciate the BC2939-1, one must first understand the mechanical forces at play within a performance valve train. A dual spring kit replaces the single factory spring with a nested set—a primary inner spring and a secondary outer spring. This design provides superior valve closing force with less coil bind risk, critical for preventing valve float at high RPM. However, this introduces a new interface challenge. The concentrated load from two springs must be transferred through a single, stable platform to the machined surface of the aluminum cylinder head. A weak or improperly sized seat will deform under cyclic loading, leading to spring misalignment, rapid wear on both the seat and the cylinder head, and a consequent loss of spring pressure and valvetrain stability. The BC2939-1 is engineered as the solution to this precise problem.

Material Science: Chromoly Steel for Unyielding Strength

Brian Crower selects 4140 chromoly steel for the BC2939-1, a material revered in motorsports for its optimal blend of strength, toughness, and machinability. The addition of chromium and molybdenum creates a finer grain structure that responds excellently to heat treatment, resulting in a component with a high yield strength. This means the seat resists permanent deformation under the tremendous, cyclical loads generated by high-lift, high-RPM camshaft profiles and their corresponding stiff springs. Unlike mild steel or inferior alloys, this chromoly construction ensures the seat’s critical mating surfaces remain perfectly flat and parallel, maintaining consistent installed height and spring pressure throughout the engine’s operational envelope. It is a material choice that speaks directly to longevity and reliability under duress.

Technical Specifications and Precision Fitment

The BC2939-1 is a model of specific engineering. It is designed as the lower spring seat for use exclusively with Brian Crower’s dual spring kits, such as those paired with their renowned BC1010-1 camshaft sets for the FA20 and 2UR-GSE platforms. Its dimensions are calculated to provide the correct installed height for the springs while ensuring full, flush contact with the cylinder head machining.

Performance Benefits and System Integration

Installing the BC2939-1 spring seat transforms the valvetrain upgrade from a component swap into a systems-integrated solution. Its benefits are fundamental to achieving the performance and reliability goals of any serious build.

• Prevents Cylinder Head Damage: Acts as a sacrificial, hardened interface, absorbing wear and protecting the softer aluminum of the cylinder head from being gouged or eroded by the spring.
• Maintains Critical Spring Alignment: The precision-machined outer diameter pilots the outer spring, ensuring perfect coaxial alignment with the valve stem and guide. This eliminates side-loading, reducing guide wear and ensuring consistent valve seal.
• Ensures Consistent Installed Height: A uniform seat thickness is vital for setting accurate installed spring height, which directly controls spring pressure and valve timing dynamics. The BC2939-1 guarantees this consistency across all cylinders.
• Maximizes Spring Life and Performance: By providing a flat, stable, and hard mounting surface, the seat prevents spring “dig-in” and allows the springs to work as designed, maintaining their rate and preventing premature fatigue.
• Essential for High-RPM and Forced Induction Reliability: In applications with aggressive cam profiles, increased rev limits, or high cylinder pressures from turbocharging/supercharging, the valvetrain is under extreme stress. The BC2939-1 is the robust foundation required for this environment.

Understanding the interplay between spring dynamics, material science, and component geometry is key to engine building. For a deeper dive into valvetrain physics and the importance of harmonic control, refer to this authoritative resource on high-performance valvetrain geometry basics from a leading technical publication.

Vehicle Fitment and Installation Notes

The BC2939-1 is engineered for a specific and critical purpose within defined parameters. Correct fitment is paramount.

Primary Vehicle & Engine Fitment:

Subaru:

• 2015-2021 Subaru WRX (with FA20DIT engine)
• 2015-2021 Subaru Forester XT (FA20DIT)

Toyota / Lexus:

• 2008-2020 Lexus IS F (with 2UR-GSE 5.0L V8 engine)
• 2010-2020 Lexus RC F (2UR-GSE)
• 2015-2020 Lexus GS F (2UR-GSE)

Note on Compatibility: This spring seat is specifically designed for use with Brian Crower dual valve spring kits intended for the above engines (e.g., kits that include BC springs, retainers, and locks). It is a critical replacement for the stock lower seat when performing this upgrade. It is not a universal part and will not function correctly with single spring setups or dual spring kits from other manufacturers without verification of dimensional compatibility. Always verify you have the correct Brian Crower spring kit (such as the BC1010-1 valvetrain kit) before purchasing this seat.

Installation Procedure Overview:

Installation requires complete disassembly of the valve train (camshafts, lifters, springs). The cylinder head must be clean and free of debris. The old lower spring seats are removed. Each BC2939-1 seat is placed into the machined recess in the cylinder head, ensuring it sits perfectly flat. The dual springs, retainer, and locks are then assembled on top. Critical Step: Installed spring height must be measured and shimmed as necessary using appropriate shims to achieve the exact specification called for in the Brian Crower spring kit instructions. Never assume the seat alone provides the final height. Professional assembly and valve spring pressure testing are strongly recommended.

The Indispensable Component for the Serious Builder

In performance engine building, the devil is in the details, and the difference between a successful, reliable build and a problematic one often rests on the smallest, hardest-working components. The Brian Crower BC2939-1 Spring Seat epitomizes this philosophy. It represents a focused investment in the structural integrity of your valve train. By choosing this precision-machined chromoly foundation, you are not just buying a part; you are ensuring that the significant investment in high-performance camshafts, springs, and retainers is fully protected and can perform at its designed potential. For the Subaru FA20 or Toyota/Lexus 2UR-GSE engine builder leaving nothing to chance, specifying the BC2939-1 is a mark of technical understanding and a commitment to uncompromising quality. It is the definitive lower spring seat for your dual spring kit installation.
