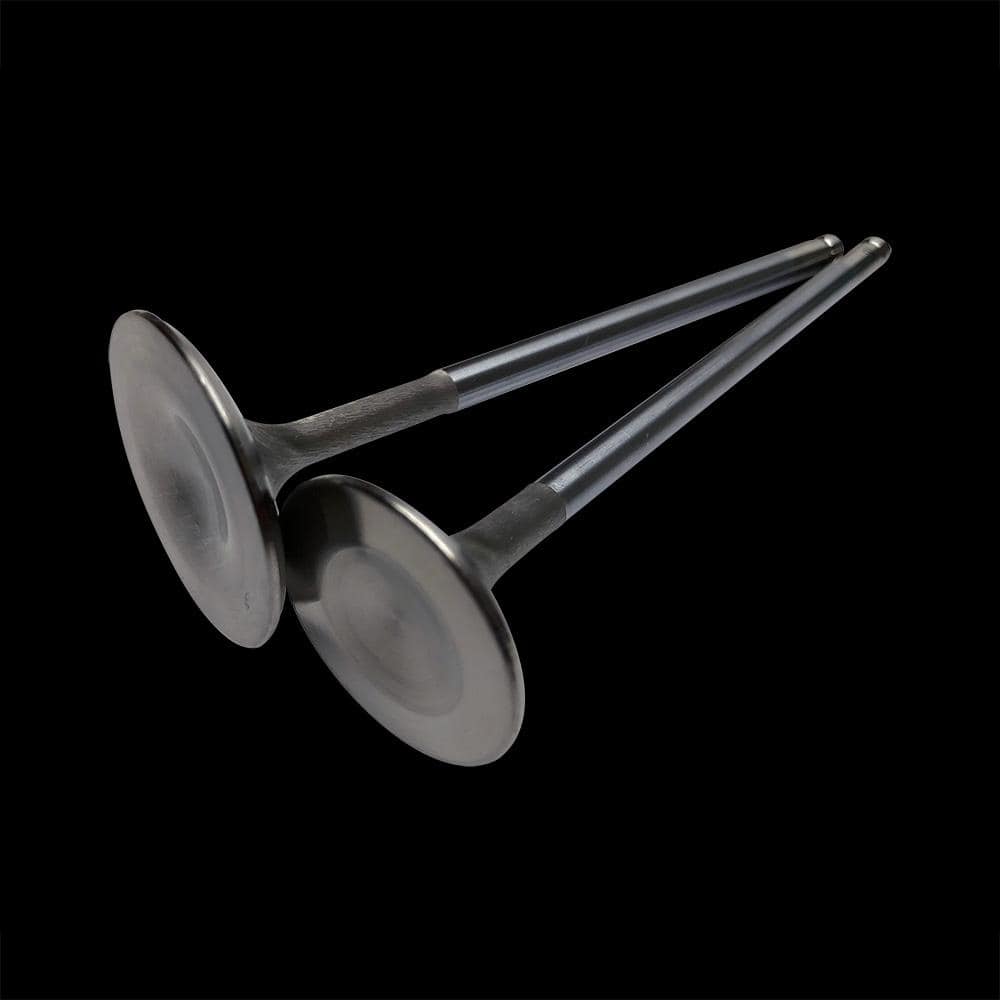

BC3071 – Honda D16Y8/D16Z6 Exhaust Valves (26mm / STD) – set/8

Engineering Precision for Honda’s Legendary D-Series: The BC3071 Exhaust Valve Set

For the performance builder seeking uncompromising reliability and flow in the heart of Honda’s D-Series platform, the Brian Crower BC3071 exhaust valve set represents the definitive upgrade from stock components. Engineered as a direct, standard-size (26mm) replacement for the Honda D16Y8 (EX) and D16Z6 (Si/VTEC) engines, this set of eight valves is machined from a proprietary EV8+ stainless steel alloy. This material selection is not arbitrary; it is a calculated decision to provide a significant increase in tensile strength and thermal fatigue resistance over OEM valves, which is critical for engines subjected to sustained high-RPM operation, forced induction, or aggressive nitrous oxide use. The BC3071 is not merely a part; it is a foundational component for building a durable, high-output D16 engine that retains factory-like drivability with race-proven resilience.

Design & Manufacturing: The Anatomy of Reliability

Every aspect of the BC3071 valve is scrutinized to meet the demands of performance engines. This is precision engineering applied to a critical valvetrain component.

Proprietary EV8+ Stainless Steel Alloy

The core of the BC3071’s advantage lies in its material construction. Brian Crower’s EV8+ stainless steel is specifically formulated for exhaust valve duty. It offers superior high-temperature yield strength compared to common 21-2N or 21-4N alloys, resisting the “stretching” or deformation that can occur under extreme cylinder pressure and heat. This translates directly to maintained valve lash and consistent seal over the engine’s lifespan. The alloy’s enhanced chromium and nickel content also provides exceptional corrosion resistance, combating the corrosive byproducts of combustion—a key factor in longevity for street-driven vehicles that see short-trip cycles.

CNC Machined for Consistency & Flow

Each valve is manufactured using state-of-the-art CNC machining processes, ensuring dimensional accuracy and mirror-finish surface consistency that far surpasses cast OEM equivalents. The underhead radius and stem transition are meticulously profiled to reduce flow restriction and promote smoother charge evacuation from the cylinder. This precise machining ensures perfect concentricity, which is vital for even seat contact and heat transfer to the cylinder head. The consistent weight (<±2 grams per set) is critical for valvetrain stability, allowing for higher, safer rev limits without the need for extensive re-balancing when used as a matched set.

Hardened Tips & Precision Lock Grooves

The valve tips undergo a specialized hardening process to withstand the constant impact from rocker arms or followers, preventing mushrooming that can lead to lash lock-up. The lock grooves are machined with sharp, defined edges to ensure a positive, secure retention with valve locks, eliminating the risk of valve drop—a catastrophic failure mode. This attention to detail in areas beyond the sealing surface exemplifies the comprehensive engineering approach taken.

Performance Benefits & Application Rationale

• Enhanced High-Temperature Strength: EV8+ alloy resists elongation and deformation under thermal load, preserving valve lash and sealing integrity in boosted or high-RPM applications.
• Superior Durability & Fatigue Resistance: Outlasts OEM valves significantly in demanding environments, providing peace of mind for performance builds and extended track sessions.
• Optimized Exhaust Flow: The precise CNC machining of the valve head and backside profile improves flow characteristics, helping to scavenge cylinders more efficiently for potential power gains.
• Direct OEM Replacement: Maintains the standard 26mm diameter and OEM installed height, allowing for a drop-in installation with existing valve springs, retainers, and seals (for stock applications).
• Foundational for Forced Induction: The increased material strength makes these valves a mandatory upgrade for any D16Y8 or D16Z6 engine planning for turbocharging or supercharging, where exhaust gas temperatures soar.
• Weight-Matched Set: Minimizes valvetrain imbalance, contributing to smoother operation and reduced harmonic stress at elevated engine speeds.

Vehicle Fitment: Engine-Specific Compatibility

The BC3071 is engineered as a direct-fit component for specific Honda D-Series engines known for their performance potential. Correct fitment is paramount to engine function and safety. Always verify engine code and specifications prior to purchase and installation.

Technical Specifications

Selecting the correct valve size is a critical aspect of cylinder head design that influences flow, compression, and piston-to-valve clearance. For a deeper technical understanding of valve sizing and its effects on engine performance, refer to this authoritative resource on valve basics and performance sizing principles at EngineLabs. The BC3071, by maintaining the OEM 26mm diameter, ensures a safe, compatible upgrade that focuses on material science and durability without altering the fundamental geometry of the Honda D16Y8/D16Z6 combustion chamber.
