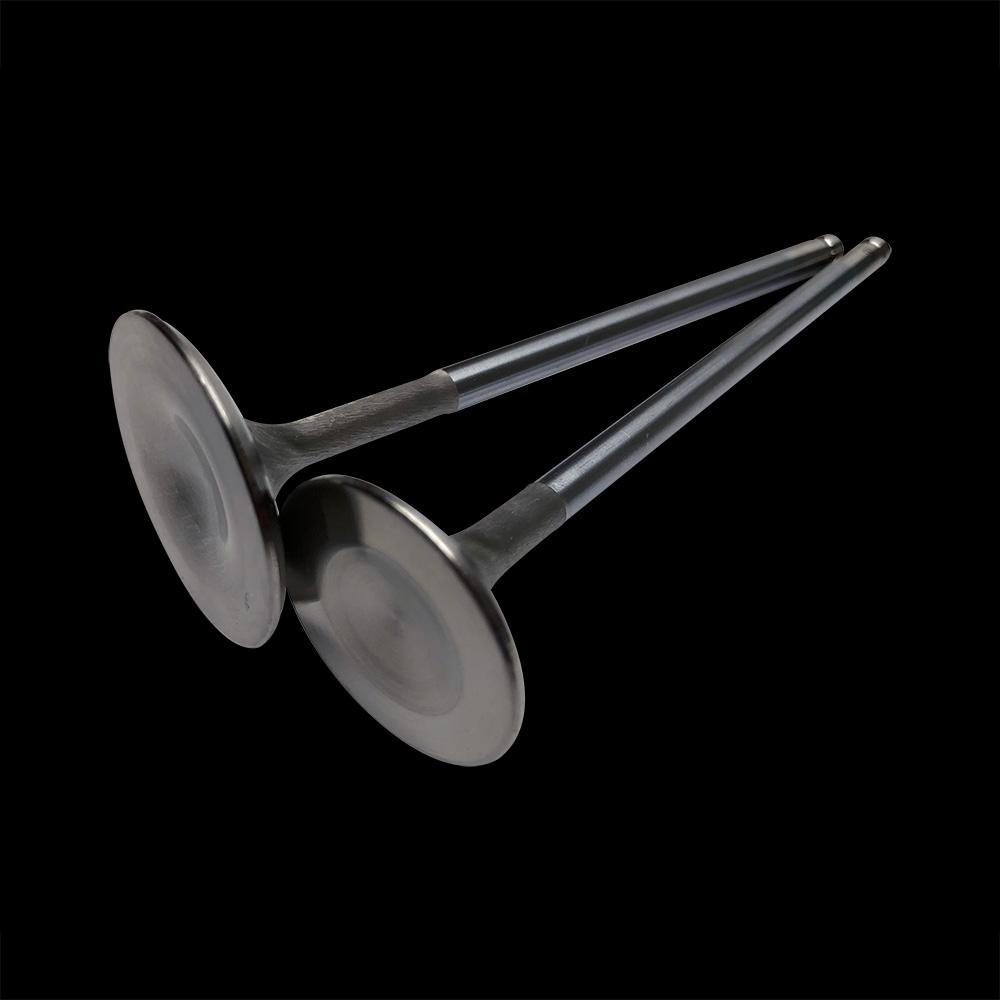

BC3074 – Honda D16Y8/D16Z6 Intake Valves (31mm / +1mm) – set/8

In the relentless pursuit of horsepower and reliability within the Honda D-series community, every component’s contribution is scrutinized. The intake valve stands as a critical gatekeeper, dictating the volume and velocity of the air-fuel mixture entering the combustion chamber. For the revered D16Y8 (EX/Si) and D16Z6 (VTEC) engines, the stock 30mm intake valve represents a tangible bottleneck to performance, especially in applications where increased displacement, aggressive camshaft profiles, and forced induction are employed. The Brian Crower BC3074 Intake Valve Set directly addresses this limitation. This is not a mere replacement part; it is a precision-engineered upgrade, moving to a 31mm (+1mm oversized) head diameter to unlock significant airflow gains. Engineered for the mechanic who understands that real power is built from the valve seat up, this set provides the foundational hardware for transforming a potent 1.6L into a truly responsive and high-revving powerplant.

Material Science & Construction: Beyond OEM Limitations

OEM Honda intake valves are typically constructed from a martensitic stainless steel, a material chosen for its cost-effectiveness and adequate performance within factory stress and thermal envelopes. The BC3074 valves are forged from EV8+ Inconel, a nickel-chromium superalloy. This represents a fundamental shift in material hierarchy. Inconel’s primary advantage is its exceptional resistance to heat fatigue and creep—the tendency for a material to deform under prolonged exposure to high temperature and stress. In a high-RPM, high-compression, or boosted D16, exhaust gas temperatures (EGT) can skyrocket, and the intake valve, particularly on the back side of its head, is subjected to intense radiant heat from the combustion event and adjacent exhaust valves. Where a stock or lower-grade stainless valve may soften, stretch, or tulip over time, the Inconel construction of the BC3074 valves maintains its tensile strength and dimensional integrity, directly translating to long-term valve train stability and consistent sealing at the valve seat.

Precision Machining & Flow-Optimized Design

Brian Crower doesn’t just supply a larger diameter valve; they supply a intelligently designed one. The valve stem is precision ground to a consistent 5.5mm diameter, ensuring perfect, drag-free travel within the guide. The critical transition from the stem to the underside of the valve head—where airflow is most turbulent—is meticulously radiused. This radiused undercut is a performance-centric feature often absent from stock valves (which may use a simple undercut or sharp transition). This smooth radius guides the incoming charge more efficiently onto the back of the valve head and into the chamber, reducing flow separation and improving overall port efficiency. When paired with a professional multi-angle valve job and ported cylinder head, the flow bench results are undeniable, often showing gains of 5-8% in mid-lift flow numbers at the tested valve lift points common to performance D16 camshafts.

Performance Benefits & Application Synergy

Installing the BC3074 valve set is a strategic move in any serious D16 build. The benefits are cumulative and interact directly with other modifications.

• Increased Airflow Capacity: The +1mm oversize increases the total available curtain area for airflow. This directly supports higher volumetric efficiency, allowing the engine to breathe more deeply, especially in the mid-to-high RPM range (5000-7500+ RPM) where the stock valve becomes a choke point.
• Enhanced Thermal & Structural Margin: The Inconel construction provides a massive safety buffer for forced induction (turbocharger, supercharger) and high-compression naturally aspirated builds. It mitigates the risk of valve failure, which is a catastrophic mode of engine destruction.
• Foundation for Aggressive Camshafts: Performance camshafts increase lift and duration, demanding more from the valve and port. The larger 31mm head and flow-optimized profile ensure the valve can keep pace with the cam’s aggressive timing, fully realizing the cam’s potential rather than becoming the next bottleneck.
• Improved Velocity & Mixture Motion: When combined with a properly shaped combustion chamber and intake port, the optimized valve design can help maintain beneficial charge velocity, supporting better fuel atomization and combustion stability.

For a deeper technical dive into the metallurgical advantages of Inconel in valvetrain applications, refer to this analysis on engine valve materials and high-temperature performance.

Vehicle Fitment & Critical Installation Notes

Vehicle Fitment: This BC3074 set is engineered specifically for the Honda D16Y8 and D16Z6 cylinder heads. It is also typically compatible with other single-cam D-series engines utilizing the same head casting and valve train geometry, such as the D16A6, D16Y7, and D16Y5, but confirmation of chamber and pocket clearance is mandatory. They are not designed for B-series, K-series, or any other engine family.

Installation is Not a Direct Bolt-On: This is a crucial technical point. The installation of +1mm oversize valves is a professional machine shop operation. It necessitates a dedicated “multi-angle valve job” performed on a Serdi or equivalent machine to precisely recut the valve seats in the cylinder head to match the new, larger 31mm valve diameter. Furthermore, the intake valve pockets in the piston crowns must be checked for clearance, especially if using aftermarket pistons or higher-lift camshafts. Fly-cutting the pistons for additional pocket depth is a common and required practice. Failure to perform these steps will result in valve-to-piston contact and immediate, catastrophic engine failure.

Technical Specifications & Compatibility

The Brian Crower BC3074 intake valve set is a definitive component for the builder who refuses to compromise. It replaces a stock-scale part with a motorsport-derived component, offering quantifiable gains in airflow and immeasurable gains in durability. By understanding the required machine work and pairing these valves with complementary components—performance springs, retainers, camshafts, and precision machining—you are constructing a D-series valvetrain that is not just repaired, but genuinely engineered for elevated performance.
