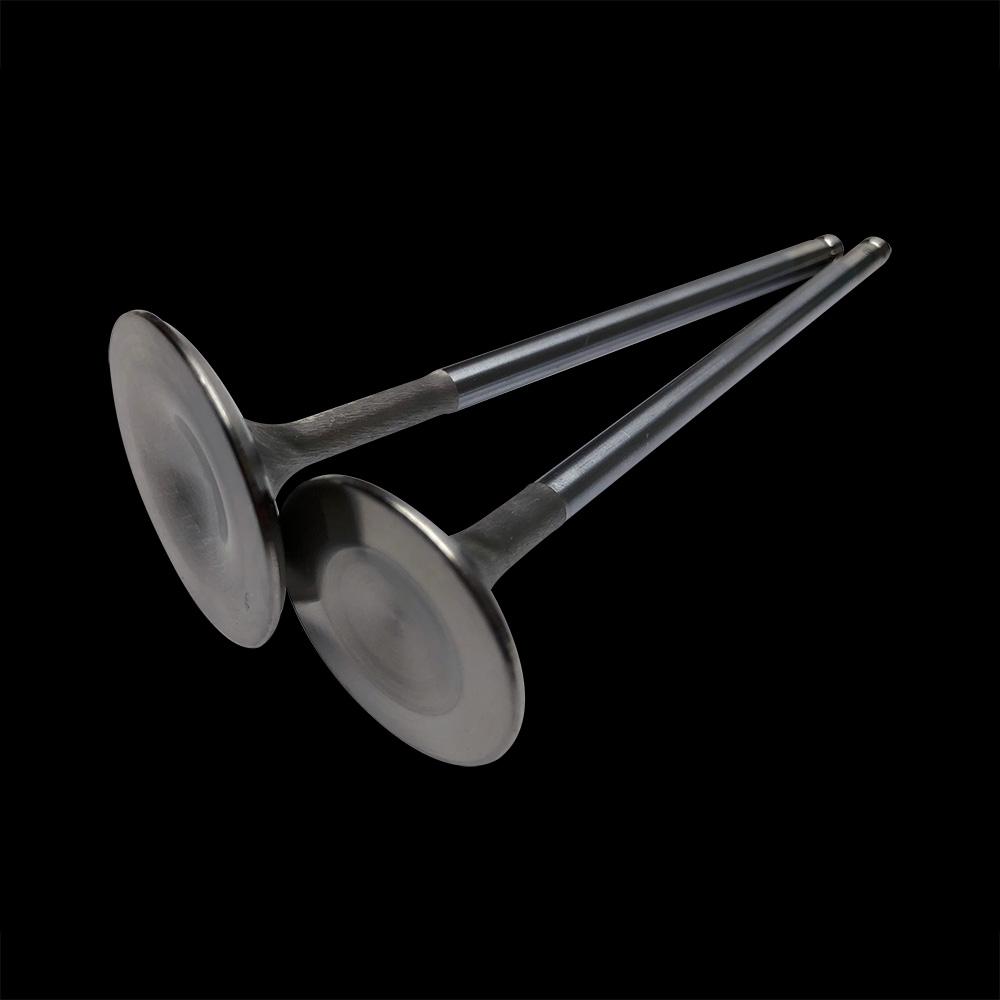

BC3169 – Dodge SRT-4 Exhaust Valves (29.5mm / +1mm – Triple Groove Keeper) – set/8

In the relentless pursuit of power and durability within the 2.4L turbocharged heart of the Dodge SRT-4, the valvetrain stands as a critical frontier. Factory components, while adequate for stock outputs, become the definitive weak link when boost pressures rise and RPM limits are pushed. The Brian Crower BC3169 Exhaust Valve Set is not an upgrade; it is a fundamental re-engineering of this crucial component. Engineered specifically as a direct-fit, performance-critical replacement, this set of eight 29.5mm (+1mm oversize) valves with a triple groove keeper design is the calculated solution for builders demanding absolute reliability and enhanced flow from their forced induction powerplant. This is hardware designed to withstand the thermal and mechanical abuse of competitive use, transforming a potential failure point into a pillar of engine integrity.

Material Science & Precision Engineering: The BC3169 Blueprint

Beyond the simple specification of “oversize valves” lies a depth of engineering critical for survival in a high-output, turbocharged environment. The BC3169 valves are machined from a proprietary EV8+ stainless steel alloy, a material selected for its exceptional balance of high-temperature strength, corrosion resistance, and thermal fatigue life. Unlike ordinary stainless steels, this formulation maintains its tensile strength and resists “guttering” – the erosion of the valve seat contact area – under extreme heat and detonation, a common killer in high-boost applications.

The +1mm oversize (29.5mm) head diameter is a precisely calculated gain. It provides a measurable increase in exhaust port flow, allowing the engine to evacuate spent combustion gases more efficiently. This reduces pumping losses, lowers cylinder temperatures, and directly supports the use of larger turbochargers and more aggressive camshaft profiles by mitigating backpressure. Each valve features a precision-machined 45-degree lock angle, ensuring perfect concentricity and seal against the valve seat for optimal combustion chamber integrity and heat transfer.

The Triple Groove Keeper: A Foundation for Stability

The valve stem’s apex is where the dynamic forces of the valvetrain are ultimately transmitted. The BC3169 employs a triple groove keeper design, a significant upgrade over stock single or double-groove configurations. This design provides a vastly increased surface area for the valve locks (collets) to engage, distributing the immense opening and closing forces more evenly across the stem. The result is a drastic reduction in the risk of groove roll-over or keeper failure, the catastrophic events that lead to valve drop. This feature is non-negotiable for engines seeing sustained high RPM or the use of high-pressure valve springs, common in builds utilizing aggressive camshaft profiles and valvetrain components.

Performance Benefits: Measurable Gains in Strength and Flow

• Unmatched Durability: EV8+ alloy construction offers superior resistance to heat fatigue, corrosion, and stem galling compared to OE or generic stainless valves, ensuring long-term reliability under boost.
• Increased Exhaust Flow: The 29.5mm (+1mm) head diameter reduces exhaust restriction, supporting higher horsepower levels by improving volumetric efficiency and reducing backpressure.
• Enhanced Valvetrain Security: The triple groove keeper system virtually eliminates the risk of valve lock failure, providing peace of mind for high-RPM and high-spring pressure applications.
• Direct, No-Hassle Fitment: Engineered as a direct replacement for the factory SRT-4 exhaust valves, requiring no unusual machining or modification when installed by a qualified technician.
• Optimized Heat Management: Improved material and seat contact promotes better heat transfer from the valve head to the cylinder head, lowering overall valve temperature and preventing hot spots.

Exact Vehicle Fitment & Application Notes

The Brian Crower BC3169 valve set is engineered with laser-focused application. It is a direct-fit component for the following platform:

Primary Application:
2003-2005 Dodge Neon SRT-4 (2.4L Turbocharged DOHC Engine) – Exhaust Valves Only.

Critical Installation Note: While these valves are a direct dimensional replacement, their installation is not a casual task. The +1mm oversize absolutely requires a corresponding +1mm oversize valve seat cut in the cylinder head to match the new flow profile and establish the correct seal. This is a machine shop operation that must be performed by a professional with experience in performance valve jobs. Furthermore, the use of matching Brian Crower valve springs, retainers, and locks (such as those from the BC-0250 kit) is highly recommended to form a complete, balanced, and reliable high-performance valvetrain system. Always verify clearances after assembly.

Technical Specifications at a Glance

For the SRT-4 enthusiast transitioning from a stock configuration to a built, high-horsepower setup, the exhaust valves are not a component to overlook. The Brian Crower BC3169 set provides the essential margin of safety and performance needed to harness increased boost and RPM. Its specification—from the robust EV8+ alloy to the fault-tolerant triple groove design—represents a deliberate investment in bottom-end engine security. When paired with professional installation and a complementary valvetrain, these valves form the reliable, high-flowing exhaust gatekeeper necessary for a potent and durable forced-induction build.
