Engineering Precision for the KA24DE: An In-Depth Look at the BC3210 Intake Valve Set
For the dedicated builder or performance enthusiast seeking to extract every ounce of potential from the venerable Nissan KA24DE engine, valvetrain integrity is non-negotiable. The BC3210 Intake Valve Set represents a critical, precision-engineered component upgrade designed to address the limitations of stock components under increased thermal and mechanical stress. This set of eight intake valves, sized at 37.10mm (+0.5mm oversize), is not merely a replacement part; it is a calculated intervention to improve volumetric efficiency, enhance durability, and support significant power gains. Manufactured to exacting tolerances from high-grade materials, these valves are the cornerstone for any serious KA24DE rebuild, whether targeting reliable daily-driven performance, forced induction applications, or high-RPM naturally aspirated builds. The decision to install oversized valves is a fundamental step in cylinder head porting and airflow optimization, directly influencing the engine’s ability to breathe efficiently—a principle thoroughly explored in resources like this technical article on valve geometry and airflow. The BC3210 set provides the exact hardware needed to execute this performance theory with precision.
Anatomy of a Performance Valve: Materials and Design

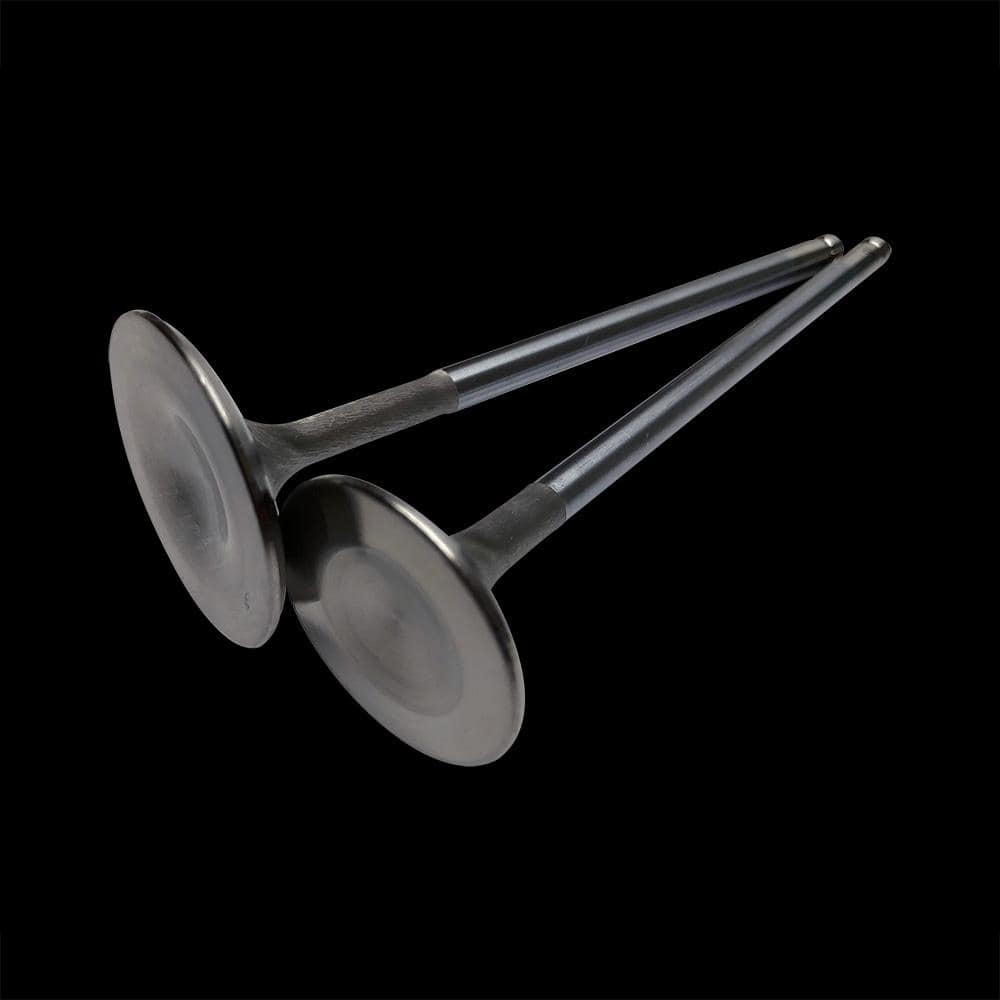

The BC3210 valves are engineered with a specific focus on the demanding environment of a modified KA24DE combustion chamber. The stock intake valves, while adequate for OEM specifications, can become a liability when cylinder pressures and exhaust gas temperatures rise. The BC3210 set addresses this through a multi-faceted design approach centered on material science and aerodynamic profiling.
Forged Chromoly Steel Construction
Each valve in the BC3210 set is forged from high-strength chromoly steel (typically SAE 8640 or similar alloy). This process aligns the metal’s grain structure, resulting in superior tensile strength and fatigue resistance compared to cheaper, cast alternatives. The forged body can withstand the relentless cyclical loading of valve spring pressure and the intense heat of combustion, particularly critical in turbocharged or high-compression applications where valve float and heat saturation are primary concerns. The material’s inherent strength allows for a robust yet optimally weighted valve, a key factor in maintaining valvetrain stability at elevated RPM.
Optimized Stem and Margin Geometry
Precision machining ensures the 8mm stem diameter maintains a perfect, consistent fit within the valve guide, minimizing oil consumption and providing stable, friction-reduced travel. The valve margin—the flat surface at the edge of the valve head—is machined to a precise thickness. This is crucial for heat dissipation; a proper margin acts as a heat sink, drawing thermal energy away from the hottest part of the valve (the face) and up through the stem. An inadequate margin can lead to localized overheating, warping, and premature valve failure. The BC3210’s specification guarantees this critical thermal path is maintained even after multiple valve job sessions.
Performance Benefits of the +0.5mm Oversize Design
Upgrading to the 37.10mm (+0.5mm) intake valves is a targeted modification with measurable returns. The increase in valve diameter is a strategic choice, offering significant flow improvement without the extreme complications and costs associated with larger, “max-effort” valve sizes that require extensive chamber and port reshaping.
- Increased Airflow Capacity: The primary benefit. The larger valve head presents a greater curtain area for airflow during the intake cycle. This reduces intake charge velocity and resistance, allowing the cylinder to fill more completely, especially in the mid-to-high RPM range where time for air intake is limited. This directly translates to increased volumetric efficiency and power.
- Supports Head Porting Work: These valves are the ideal partner for a professionally ported cylinder head. The port and bowl work can be shaped to efficiently feed the larger valve, creating a synergistic effect. Installing oversized valves in an un-ported head still yields gains, but the full potential is realized when the entire intake path is optimized.
- Enhanced Durability Under Stress: The superior material and forging process provide a much higher safety margin than OEM valves. They are far more resistant to elongation, tuliping (warping of the valve head), and fatigue cracking under the increased thermal loads of performance tuning, nitrous oxide, or forced induction.
- Improved Valve Sealing Consistency: The precision machining of the 45-degree lock groove and the stem ensures consistent engagement with valve keepers and springs. This promotes uniform valve rotation and seating, leading to better long-term seal with the valve seat, stable compression, and reduced risk of burn.
- Foundation for Forced Induction: For turbo or supercharger builds, a strong, heat-resistant intake valve is essential. The BC3210 set is a foundational upgrade that helps manage the increased intake charge temperatures and cylinder pressures, providing reliability to support higher boost levels.
Vehicle Fitment & Application Notes
The BC3210 Intake Valve Set is engineered specifically for the Nissan KA24DE dual-overhead-cam (DOHC) 2.4-liter inline-4 engine. Precise fitment is critical, and these valves are confirmed for the following applications:
- Nissan 240SX (S13 & S14 Chassis): 1991-1994 (S13) and 1995-1998 (S14) models equipped with the KA24DE engine.
- Nissan Hardbody Truck (D21): 1990-1997 models with the KA24E or KA24DE engine (verify cylinder head is DOHC KA24DE).
- Nissan Pathfinder (WD21): 1990-1995 models equipped with the KA24DE engine.
- Nissan Frontier (D22) / Xterra (Early): 1998-2004 models with the KA24DE engine.
Critical Installation Requirements: Installing +0.5mm oversized valves is not a direct “drop-in” procedure. It requires precision machine shop work. The cylinder head must have the intake valve seats carefully re-cut or replaced to match the new 37.10mm valve diameter. Furthermore, the valve pockets in the piston crowns must be checked for clearance, especially in high-compression or non-stock piston applications. A professional clay or clearance check is mandatory during assembly to prevent catastrophic piston-to-valve contact. Always use matching high-performance valve springs and retainers designed to handle the specific mass and intended RPM range of these valves.
Technical Specifications & Dimensions
The following table details the exact specifications for the BC3210 Nissan KA24DE Intake Valve Set. These dimensions are critical for machine shops and builders to verify compatibility and plan the necessary cylinder head work.
| Specification | Measurement / Detail |
|---|---|
| Part Number | BC3210 |
| Valve Type | Intake |
| Head Diameter | 37.10 mm (1.461 in) |
| Oversize | +0.5 mm (+0.020 in) |
| Stem Diameter | 8.00 mm (0.315 in) |
| Overall Length | Approx. 108.5 mm (4.272 in) *Verify against OEM spec for your year |
| Lock Groove Style | Single (3-Groove OEM style is common; confirm keeper compatibility) |
| Face Angle | 45 degrees |
| Material | Forged Chromoly Steel |
| Set Quantity | 8 Valves |
In summary, the BC3210 Intake Valve Set is a professionally oriented component for the serious KA24DE builder. Its +0.5mm oversize design offers a practical and effective boost in airflow, backed by the durability required for performance use. By investing in these valves and the requisite precision machining, you are fundamentally upgrading the engine’s breathing apparatus, laying a reliable foundation for increased horsepower and torque across the powerband. This is a modification that prioritizes measurable results and long-term engine integrity.
