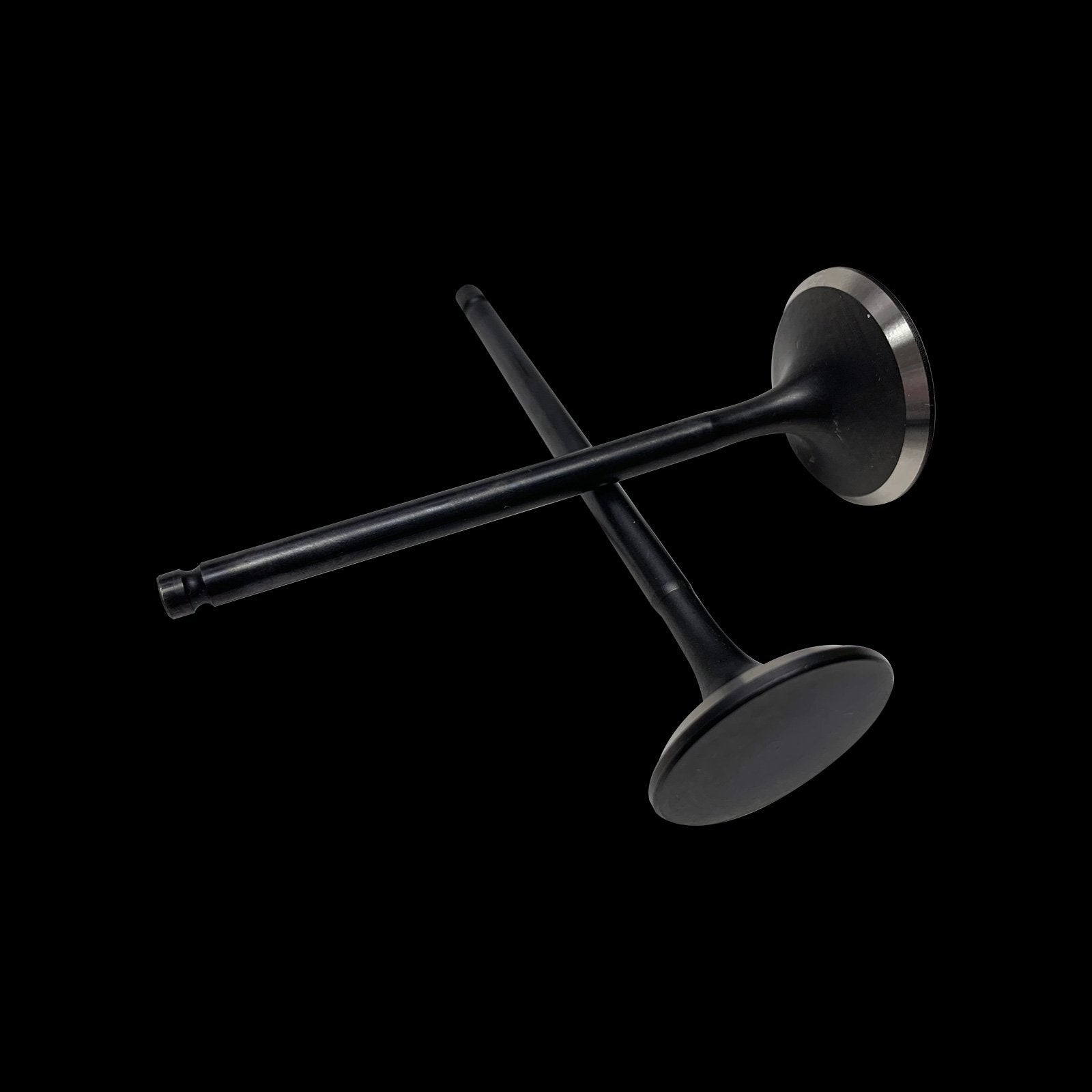

BC3210S-8 – Nissan KA24DE Intake Valves (37.10mm / +.5mm) – set/8

For the dedicated Nissan KA24DE engine builder seeking uncompromising volumetric efficiency and durability, the valve train is a critical battlefield. Standard components often represent the ceiling for a stock rebuild, but true performance gains demand precision-engineered upgrades. The BC3210S-8 intake valve set is not merely a replacement part; it is a calculated performance modification engineered to unlock the latent potential of the KA24DE head. This set of eight, featuring a strategically oversized 37.10mm head diameter (+0.5mm over stock), is designed for builders targeting increased airflow, enhanced combustion efficiency, and robust reliability under elevated stress. It embodies a philosophy where meticulous material science and exacting dimensional tolerances converge to create a foundational component for NA, turbocharged, or high-RPM applications.

Engineering Analysis: Material & Dimensional Precision

At the core of the BC3210S-8’s performance is a sophisticated material specification. These valves are forged from EV8+ alloy steel, a grade selected for its superior high-temperature tensile strength and fatigue resistance compared to common OEM materials. The forging process aligns the grain structure of the metal, resulting in a component that can withstand the repeated thermal cycling and mechanical shock inherent in performance use. The critical wear surfaces—the stem and the margin—receive dedicated treatment. The stem is micro-finished to a mirror-like surface and often treated with a specialized coating, such as a chromium nitride or diamond-like carbon (DLC) derivative, to minimize friction and wear against the valve guide, reducing parasitic loss and extending service life. The 45-degree lock groove is machined with absolute precision to ensure secure and consistent retention by the locks and retainers, a non-negotiable for valvetrain stability.

The defining feature is the 37.10mm head diameter, representing a +0.5mm oversize. This is not a random increase but a calculated enlargement designed to maximize intake port flow without compromising valve-to-valve or valve-to-piston clearance in a properly configured engine. The backside of the valve head is carefully profiled—often with a radiused or undercut stem—to improve flow characteristics as air transitions from the port into the combustion chamber. This design works synergistically with porting and polishing work, allowing the engine to breathe more deeply, particularly in the mid-to-high lift range of the camshaft profile. As noted in technical discussions on engine airflow principles, such as those explored by authoritative sources like Engine Labs on valvetrain science, precise valve geometry is paramount for achieving efficient charge motion and cylinder filling.

Primary Performance Benefits & Applications

The installation of the BC3210S-8 valve set transitions the KA24DE’s cylinder head from a stock air-handling component to a performance-oriented system. The primary benefit is a measurable increase in intake airflow, which directly translates to greater volumetric efficiency. This provides a broader torque curve and increased horsepower potential, whether the engine remains naturally aspirated or is supplemented by forced induction. The oversize valve, when paired with a matching valve seat job and potentially enlarged ports, reduces intake charge restriction, allowing the engine to ingest air more freely.

Furthermore, the enhanced material properties offer critical reliability upgrades. The improved high-temperature strength reduces the risk of valve tuliping (thermal deformation) or head margin erosion, common failure points in stressed engines. The wear-resistant stem treatment preserves vital stem-to-guide clearance over extended periods, maintaining proper oil control and preventing the guide wear that can lead to oil consumption and compromised valve sealing. This makes the valves ideal for a range of applications: from a street-driven 240SX seeking reliable power gains, to a competition S-chassis build, to a high-boost KA-T setup where exhaust gas temperatures can be punishing on the intake side due to reversion.

Key Benefits Summary

• Increased Airflow: 37.10mm (+0.5mm) head diameter maximizes intake port flow potential for greater volumetric efficiency.
• Enhanced Durability: Forged EV8+ alloy steel construction provides superior high-temperature strength and fatigue resistance versus OEM.
• Reduced Friction & Wear: Micro-finished stem with specialized coating minimizes guide wear and valvetrain friction losses.
• Optimized Flow Profile: Precision-machined backside radius improves charge transition from port to combustion chamber.
• Foundation for Forced Induction: Robust material spec is engineered to withstand the thermal loads of turbocharged or supercharged applications.
• Stable Valvetrain Interface: Precisely machined 45-degree lock groove ensures secure retention for consistent valve motion.

Vehicle Fitment & Compatibility Notes

The BC3210S-8 valves are engineered specifically for the Nissan KA24DE dual-overhead-cam (DOHC) 4-cylinder engine. Direct fitment includes vehicles such as the Nissan 240SX (S13 & S14 chassis from 1991-1998), D21 Hardbody Truck (1990-1997), and the Pathfinder WD21 (1990-1995). It is critical to understand that installing +0.5mm oversize valves is not a direct “drop-in” operation. The cylinder head must undergo a professional valve seat machining process to match the new, larger valve diameter. This typically involves a three-angle or concentric seat cut to ensure perfect sealing and optimal flow. Additionally, valve-to-piston clearance must be verified, especially if using higher-lift camshafts or if the engine has been decked or rebuilt with different compression height pistons. Consultation of the service manual and precise measurement during assembly are mandatory.

Technical Specifications

Installation Advisory: These performance valves are a core component in a system. Their full potential is realized only when paired with matching valve springs, retainers, and seals designed for the target RPM and lift profile. Always perform a complete valvetrain geometry check and verification of all clearances during assembly. The BC3210S-8 set provides the precision and strength required to build a KA24DE that performs reliably at the limit of its design.
