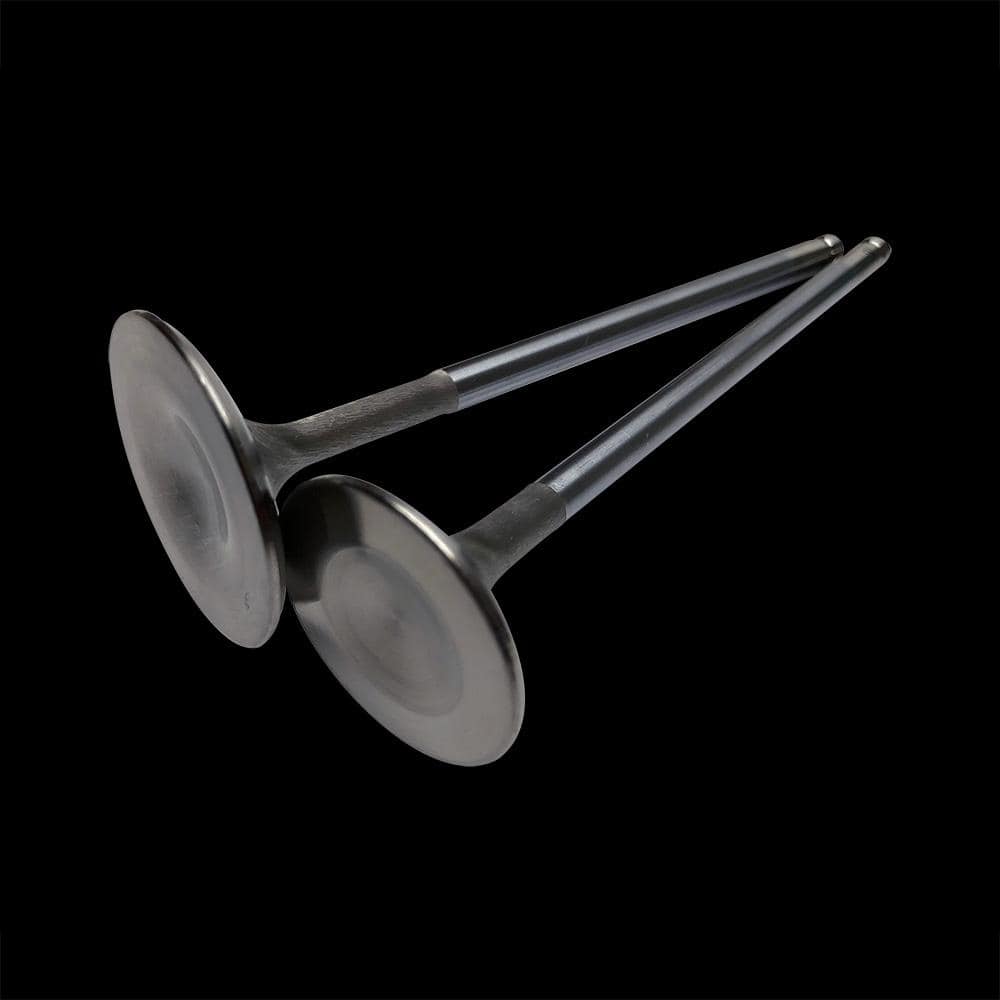

BC3212 – Nissan KA24DE Intake Valves (36.60mm / STD) – set/8

For the builder seeking uncompromising reliability and factory-plus performance from a Nissan KA24DE engine, valve specification is not a place for compromise. The Brian Crower BC3212 Intake Valve Set represents the definitive solution for OEM replacement and performance refurbishment. Engineered to exacting 36.60mm standard diameter specifications, this set of eight valves is manufactured from premium austenitic stainless steel, offering a significant upgrade in tensile strength and thermal fatigue resistance over stock components. Whether you’re overhauling a high-mileage KA24DE for a dependable daily driver or building a foundation for forced induction, the BC3212 set delivers the metallurgical integrity and precise tolerances required for optimal cylinder head function. Brian Crower’s commitment to precision CNC machining ensures perfect seal geometry and consistent valve weight, critical for maintaining stable valvetrain dynamics and achieving target power curves. This is not merely a replacement part; it is a core component engineered to restore and enhance the volumetric efficiency and longevity of the legendary 2.4-liter dual-overhead-cam platform.

Technical Analysis & Material Science

The performance ceiling of any engine is ultimately dictated by the strength of its most stressed components. The intake valves in a naturally aspirated or turbocharged KA24DE are subjected to intense thermal cycling and mechanical load. The BC3212 valves are forged from a proprietary EV8+ austenitic stainless steel alloy, a material selected for its superior performance envelope. Compared to OE-style valves, this alloy provides a dramatically improved yield strength, directly translating to reduced stem stretch under high RPM load and increased resistance to valve float. Furthermore, the austenitic structure offers exceptional corrosion resistance and retains its material properties at sustained high temperatures, a common challenge in turbocharged applications where intake charge temperatures can be elevated. Each valve is meticulously CNC-machined to a mirror finish on the critical stem and lock groove areas, minimizing friction against the valve guide and ensuring positive retention by the locks. The 45-degree lock groove is cut with surgical precision to eliminate stress risers that could lead to catastrophic failure. The underhead radius is optimized for both flow characteristics and mechanical strength, providing a robust transition from the stem to the head that withstands the relentless pounding of valve closure.

Precision Engineering for the KA24DE Platform

Direct application specificity separates a generic valve from a performance component. The BC3212 is engineered exclusively for the Nissan KA24DE’s intake side, with dimensional integrity that guarantees seamless integration. The 8mm valve stem diameter is held to a tolerance of ±0.0005″, ensuring perfect clearance within OEM or performance valve guides without excessive oil consumption or binding. The overall length and installed height are precisely matched to the factory specification, preserving original valvetrain geometry. This allows builders to utilize the valves with stock or aftermarket springs, retainers, and camshafts without requiring complex shimming or machining adjustments. The use of a standard 36.60mm head diameter is intentional; it maintains the stock port velocity and combustion chamber characteristics, making these valves ideal for builds where reliability and broad torque are prioritized over extreme peak horsepower numbers. For those delving into head porting, the consistent material quality and thickness of the valve head provide a perfect, predictable canvas for back-cutting or tulip profiling to unlock additional airflow. The precision of this set ensures that all eight valves act as a uniform assembly, a non-negotiable requirement for balanced cylinder pressure and smooth engine operation.

Performance Benefits & Build Applications

Integrating the BC3212 valve set into your KA24DE build addresses multiple failure points while setting the stage for increased performance. The core benefits are rooted in material superiority and manufacturing consistency.

• Enhanced Durability: EV8+ stainless steel provides far greater resistance to valve seat wear, pitting, and tulip cracking compared to stock material, extending service intervals and engine life.
• Superior Heat Management: The alloy’s high-temperature stability prevents annealing and deformation under thermal stress, a critical advantage in turbo, supercharged, or high-compression NA builds.
• Consistent Valvetrain Control: CNC-machined stems and lock grooves ensure minimal variance in valve weight and perfect lash cap/rocker arm interface, promoting stable RPM limits and reducing harmonic vibrations.
• Optimized for OEM+ Upgrades: The standard diameter allows for a direct, drop-in installation that works flawlessly with popular aftermarket camshafts from manufacturers like Brian Crower, Tomei, and Jim Wolf Technology, supporting power gains without compatibility issues.
• Foundation for Forced Induction: The increased tensile strength directly combats valve float and stem deflection caused by high cylinder pressures, making this set a mandatory upgrade for any KA24DE destined for boost.

Vehicle Fitment & Compatibility

The Brian Crower BC3212 Intake Valve Set is engineered specifically for the Nissan KA24DE dual-overhead-cam engine. This engine was deployed in several iconic Nissan vehicles from the late 1980s through the early 2000s. Correct fitment is paramount for any performance installation. This set is confirmed to be compatible with, but not limited to, the following applications:

Primary Vehicle Applications: Nissan 240SX (S13, S14 chassis, 1991-1998), Nissan Hardbody Truck/D21 Pickup (1990-1997 with KA24E/KAE not compatible), Nissan Pathfinder WD21 (1990-1995). It is crucial to verify your engine is the KA24DE (Dual Overhead Cam) and not the KA24E (Single Overhead Cam). The valves are also directly compatible with KA24DE swaps into other chassis, such as the Nissan 510, 610, 710, S30 (240Z), and later model Nissan Frontiers/Xterras that retained this engine. Always confirm engine identification via the factory stamp on the block before purchase.

Technical Specifications

For a deeper technical understanding of valvetrain dynamics and material selection in performance engines, we recommend reading this authoritative resource on valvetrain technology and metallurgy from Engine Builder Magazine.
