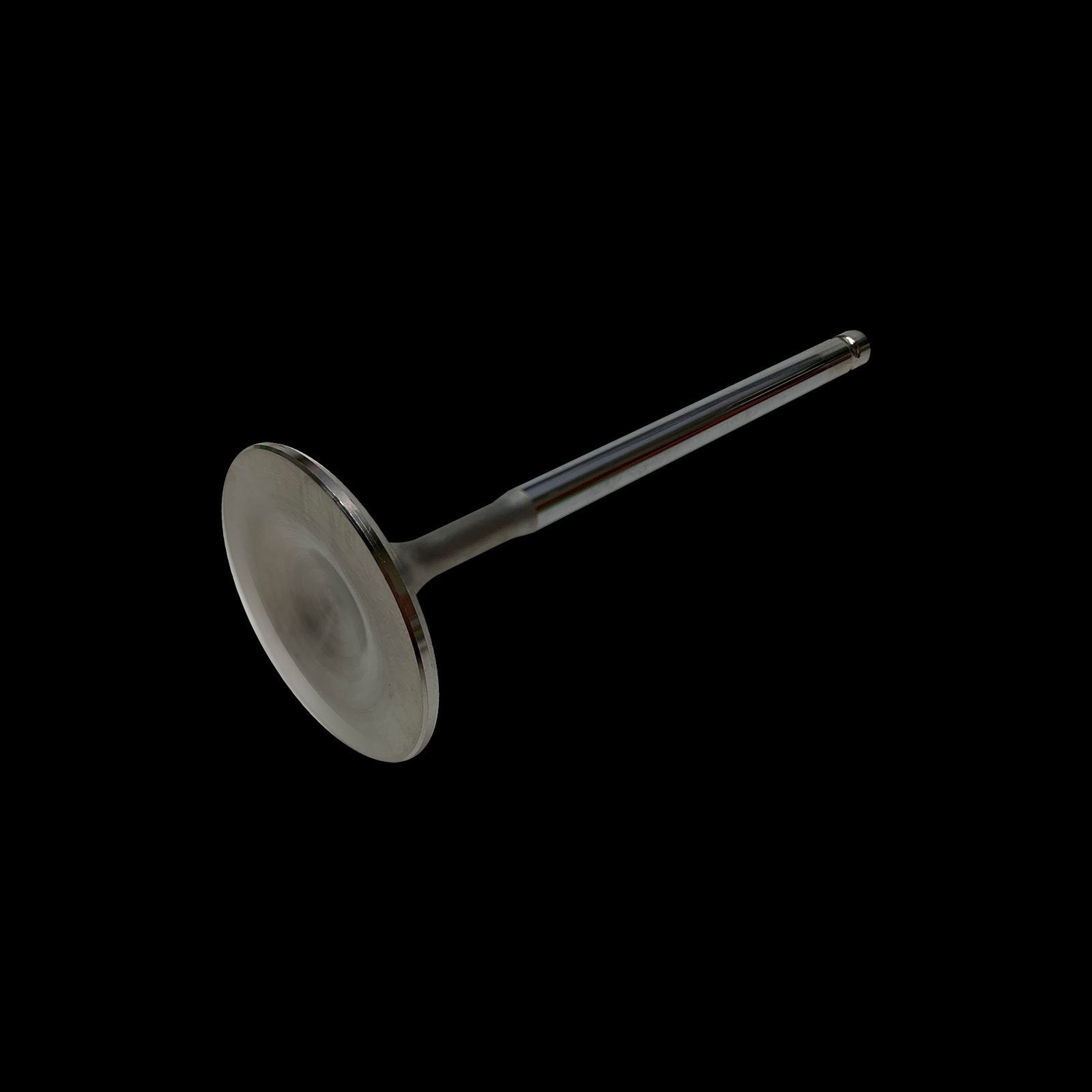

BC3224-1 – Individual Nissan VQ35DE Intake Valves (38.15mm / +1mm) – 1 only valve

In the relentless pursuit of volumetric efficiency and elevated power potential for the venerable Nissan VQ35DE, the valve train represents a critical frontier. The Brian Crower BC3224-1 Individual Intake Valve is not a mere replacement part; it is a precision-engineered component designed for the engine builder and serious enthusiast who understands that power is made in the details. This is a single, high-flow 38.15mm (+1mm oversize) stainless steel intake valve, engineered to replace the OE 37mm valve, offering a calculated increase in intake port flow and combustion chamber efficiency. For builds targeting elevated RPM operation, forced induction, or aggressive NA tuning, the BC3224-1 valve provides the foundational upgrade needed to support increased airflow demands while maintaining the structural integrity required for high-stress environments. Its specification is deliberate: 38.15mm head diameter, a 6.5mm stem, and a design philosophy centered on durability and performance gain without compromise.

Engineering for Flow: The BC3224-1 Design Philosophy

Brian Crower’s approach with the BC3224-1 valve is a masterclass in targeted airflow management. The +1mm oversize (38.15mm vs. OE 37mm) head diameter is a strategic increase. It provides a larger curtain area for airflow during valve lift events, directly impacting the engine’s ability to breathe, especially at high RPM where time for air to enter the cylinder is minuscule. However, BC Engineering does not simply make a larger valve. The backside of the valve head and the transition to the stem are meticulously machined and contoured to reduce flow restriction and turbulence. This aerodynamic profiling ensures that the gains from the increased diameter are fully realized, translating into measurable improvements in intake charge velocity and volumetric efficiency. This design is critical for overcoming the inherent flow limitations of the VQ35DE’s intake ports at elevated power levels.

Material Science: 21-4N Stainless Steel and Hardened Tips

The choice of material is where the BC3224-1 separates itself from stock and inferior aftermarket components. It is forged from EV8+ 21-4N Austenitic Stainless Steel. This alloy is the industry standard for high-performance stainless valves due to its exceptional combination of high-temperature strength, corrosion resistance, and thermal fatigue life. It retains its tensile strength and resists deformation under the extreme heat and pressure of combustion far better than OE materials. Furthermore, the valve stem tips are hardened to withstand the constant impact from rocker arms or followers, preventing premature wear and valve stem tip mushrooming—a common failure point in aggressive camshaft applications. This material specification ensures long-term dimensional stability and reliability, which is non-negotiable for any performance or competition engine. For a deeper dive into valvetrain metallurgy, refer to this technical resource on valve materials and design from industry experts.

Critical Installation & Machining Considerations

Installing the BC3224-1 valve is not a direct “drop-in” operation for a stock VQ35DE head. The +1mm oversize necessitates precise machine work to the cylinder head to accommodate the larger valve. This process is mandatory and requires the services of a competent machinist. The valve seats must be cut, blended, and lapped to match the new valve’s 45-degree seat angle and larger diameter. Concurrently, pocket porting of the combustion chamber around the new seat is often required to unshroud the valve and prevent it from contacting the chamber wall, which would be catastrophic. Additionally, depending on the target lift of your camshaft profile, valve spring pocket machining may be necessary to prevent coil bind with the upgraded springs that must accompany this valve. Failure to perform these machining steps will result in poor sealing, lost performance, or immediate engine damage.

• Increased Airflow & Volumetric Efficiency: The 38.15mm diameter provides a larger intake port opening, directly supporting higher horsepower outputs, especially in boosted or high-RPM applications.
• Superior High-Temperature Strength: Forged from EV8+ 21-4N Stainless Steel to resist deformation, oxidation, and fatigue under extreme combustion heat.
• Enhanced Durability & Wear Resistance: Hardened stem tip prevents wear from aggressive cam profiles, ensuring long-term valvetrain stability.
• Precision Engineered for Performance: Machined profiles and strict tolerances ensure optimal airflow characteristics and consistent sealing.
• Foundation for Forced Induction & High-Compression Builds: Provides the airflow capacity and material strength required for significant power increases over stock.
• Individual Valve Solution: Allows for replacement of damaged valves or custom building of a set to exact specifications without being locked into a pre-packaged kit.

Vehicle Fitment & Application Notes

The Brian Crower BC3224-1 Intake Valve is engineered specifically for the Nissan VQ35DE engine family. This engine is renowned for its use in a variety of performance-oriented vehicles. Primary applications include, but are not limited to:

Nissan 350Z (Z33) (2003-2006 models with VQ35DE), Infiniti G35 (Coupe and Sedan, 2003-2006 with VQ35DE), and the Nissan Pathfinder / Infiniti QX4 (with the VQ35DE engine). It is critical to verify your engine’s specific variant. This valve is designed for the standard VQ35DE, not the later VQ35HR (which uses a different, smaller stem diameter). Always confirm your cylinder head casting and engine model before purchasing. This valve is ideal for rebuilds, performance upgrades, and race engines where the stock 37mm intake valve is a bottleneck to achieving target power levels.

Technical Specifications: BC3224-1
