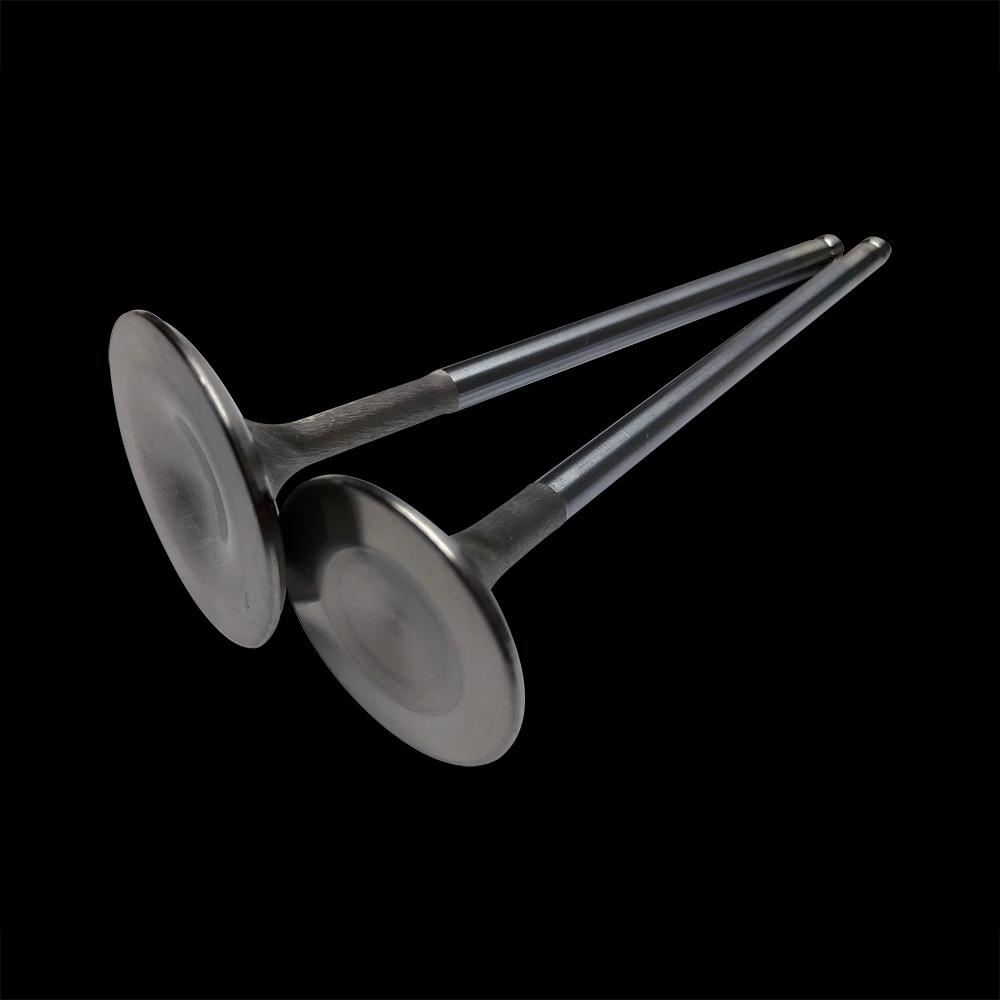

BC3303 – Toyota 2JZ Exhaust Valves (30mm / +1mm) – set/12

In the realm of high-performance Toyota 2JZ engines, the quest for reliable power is won and lost in the details of airflow and thermal management. The factory exhaust valves, while robust for OEM applications, become a critical bottleneck when targeting elevated horsepower figures, forced induction pressures, and sustained high-RPM operation. The Brian Crower BC3303 30mm (+1mm Oversize) Exhaust Valve Set is engineered as a direct, precision-forged solution to this constraint. Representing a fundamental upgrade for the 2JZ-GE and 2JZ-GTE platforms, this set of twelve SST EV8 stainless steel valves is not merely a replacement part; it is a calculated component in a system-wide strategy for enhanced exhaust scavenging, reduced back-pressure, and superior heat dissipation. By increasing the exhaust valve diameter, Brian Crower provides a tangible increase in the engine’s volumetric efficiency, a parameter essential for unlocking the full potential of turbocharger upgrades, aggressive camshaft profiles, and increased displacement. For the builder who understands that power is a function of flow, the BC3303 set is a non-negotiable foundation for any serious 2JZ performance build, a fact supported by fundamental principles of internal combustion engine design as discussed in authoritative resources on engine airflow dynamics.

Engineering Analysis: The +1mm Oversize Advantage

The decision to move from the stock 29mm exhaust valve to a 30mm diameter is a calculated one with measurable impacts. This +1mm oversize specification directly increases the total available flow area at the exhaust port. In practical terms, this allows spent combustion gases to exit the cylinder more rapidly and completely. This enhanced scavenging effect performs two critical functions: it reduces residual exhaust gas concentration in the cylinder for the next combustion cycle, allowing for a denser, cooler intake charge, and it significantly lowers exhaust back-pressure, particularly crucial in turbocharged applications. Reduced back-pressure minimizes the parasitic work the engine must perform to expel gases, directly translating to more efficient turbo spool characteristics and reduced exhaust manifold pressure. The valve’s SST EV8 (Stainless Steel, Grade EV8) construction is specifically selected for this role, offering an optimal balance of high-temperature tensile strength, corrosion resistance, and thermal fatigue life far exceeding that of OEM silichrome-based materials.

Precision Manufacturing & Critical Design Angles

Brian Crower’s manufacturing pedigree is evident in the exacting tolerances and finish of the BC3303 valves. Each valve is manufactured using a precision forging process, which aligns the metal’s grain structure to follow the contour of the valve. This results in a component with inherently greater strength and resistance to fatigue compared to cheaper, cast alternatives. The valve features a precision-machined 45-degree seat angle, ensuring a perfect, consistent seal with compatible aftermarket or properly re-cut valve seats. Furthermore, the valve stem is micro-polished to a mirror finish, reducing friction within the valve guide and promoting smoother operation, especially at high RPM with stiff valve springs. A strategically designed back-cut on the valve head—the area under the head and above the seat—is applied to improve low-lift flow characteristics. This subtle yet critical contour helps manage the airflow transition as the valve begins to open, contributing to broader powerband efficiency.

Performance Benefits & Application Summary

• Increased Exhaust Flow: The +1mm oversize diameter provides a primary path for reducing exhaust restriction, essential for high-horsepower, turbocharged, or high-RPM naturally aspirated builds.
• Enhanced Thermal Management: SST EV8 material and efficient gas evacuation work in concert to lower overall combustion chamber temperatures, reducing the risk of pre-ignition and detonation under boost.
• Superior Durability: Forged construction and high-grade stainless steel offer dramatically increased longevity under the extreme heat and pressure cycles of performance use compared to OEM valves.
• Improved Turbo Response: By lowering exhaust back-pressure, these valves allow the turbocharger to spool more efficiently, reducing lag and improving throttle response.
• Optimized for Aftermarket Components: Designed to work seamlessly with Brian Crower and other quality aftermarket valve springs, retainers, camshafts, and cylinder head work.

Detailed Vehicle Fitment & Compatibility

Primary Application: The BC3303 valve set is designed specifically for the Toyota 2JZ engine family. Direct fitment requires matching valve springs and retainers designed for the +1mm oversize valve, and the cylinder head must be machined to accept the larger valve diameter—a process involving seat cutting and potentially guide machining.

Engine Codes:

• Toyota 2JZ-GE (Non-turbo, Supra, GS300, IS300)

• Toyota 2JZ-GTE (Twin-turbo, Supra MKIV)

• Toyota 1JZ-GE & 1JZ-GTE (Note: Requires confirmation of cylinder head valve sizing, as some 1JZ variants use identical exhaust valves)

Critical Installation Notes: This is not a drop-in component. Professional installation by a qualified machinist and engine builder is mandatory. The cylinder head must undergo a precise valve seat cutting procedure to match the new 30mm valve diameter and 45-degree seat angle. Valve-to-piston clearance must be meticulously checked, especially when used in conjunction with aftermarket pistons, stroker kits, or aggressive camshafts. Always use with compatible high-performance valve springs and retainers.

Technical Specifications

The Brian Crower BC3303 valve set is a definitive upgrade for the performance-oriented 2JZ builder. It addresses the exhaust side’s flow limitations with a purpose-built, over-engineered component that enhances every aspect of the engine’s high-output performance profile—from durability and heat resistance to outright power potential. When paired with complementary valvetrain components and professional installation, it forms the cornerstone of a cylinder head capable of supporting well beyond 800+ horsepower reliably. This is not an accessory; it is essential infrastructure for power.
