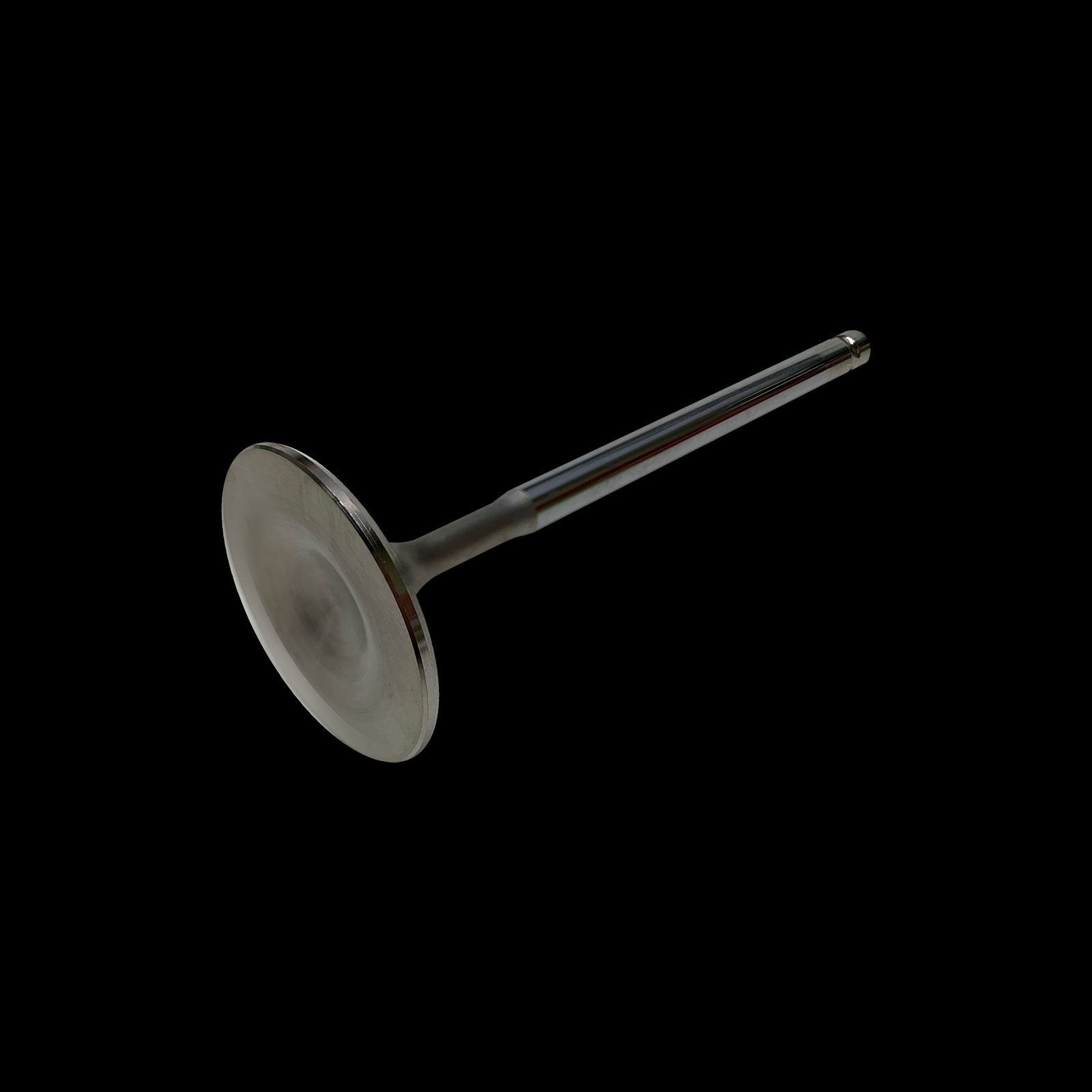

BC3313-1 – Individual Toyota 1JZ Exhaust Valves (31mm / +1mm) – 1 only valve

In the relentless pursuit of horsepower and reliability within the 1JZ-GTE platform, every component is a link in the chain of performance. The BC3313-1 Individual Exhaust Valve from Brian Crower represents a critical upgrade, transforming a fundamental engine component from a potential failure point into a pillar of strength and flow. Engineered specifically for those engaging in forced induction builds, high-RPM applications, or meticulous engine overhauls, this 31mm (+1mm oversize) stainless steel valve is not merely a replacement part—it is a calculated investment in volumetric efficiency and thermal management. By addressing the exhaust valve’s role as the primary conduit for expelling high-temperature, high-pressure combustion gases, this component directly influences turbo spool characteristics, cylinder scavenging, and overall engine resilience under duress.

Engineering Philosophy: The Disciplined Approach to Exhaust Flow

Where intake valves are designed for mixture control, exhaust valves operate in a far more hostile environment. They are the first line of defense against extreme thermal and pressure loads, especially in turbocharged engines like the 1JZ-GTE. The BC3313-1 is engineered with this dichotomy in mind. Its 31mm head diameter (a +1mm increase over many stock configurations) provides a calculated increase in flow area. This isn’t about brute size; it’s about optimizing the port-to-valve relationship to reduce exhaust gas restriction. Lower backpressure translates directly to reduced pumping losses, allowing the turbocharger to work more efficiently and the engine to expel spent gases with less residual heat trapped in the chamber. The result is a cooler running cylinder head and a clearer path for the next intake charge.

Material Science and Thermal Integrity

The valve is machined from EV8+ stainless steel, a high-grade alloy selected for its exceptional balance of high-temperature strength, corrosion resistance, and fatigue life. Under boost, exhaust valve temperatures can skyrocket. Standard materials can soften, leading to valve stretch, tuliping, and eventual failure. The molecular structure of EV8+ resists this creep, maintaining its critical seat geometry and stem dimensions. This material integrity ensures consistent seal against the valve seat over prolonged periods of high-load operation, a non-negotiable requirement for preventing power loss and catastrophic detonation. For a deeper technical dive into valve materials and their role in high-stress environments, reputable resources such as Engine Builder Magazine offer extensive analysis on metallurgical advancements.

Performance Benefits: A System-Wide Upgrade

Installing the BC3313-1 valve initiates a cascade of performance improvements. It is a cornerstone modification that synergizes with supporting upgrades to elevate the entire engine system.

• Enhanced Exhaust Scavenging: The +1mm oversize head, combined with a precision-machined profile, improves flow coefficient (Cf), pulling more spent gases from the cylinder and creating a stronger scavenging effect.
• Reduced Exhaust Gas Temperature (EGT): By evacuating gases more efficiently, less residual heat remains in the combustion chamber, lowering peak and average EGTs. This protects the piston crown, ring lands, and turbocharger turbine from excessive thermal stress.
• Improved Turbocharger Response: Lower pre-turbine backpressure allows the turbo to spool faster and reach target boost pressure earlier in the RPM range, reducing lag and improving throttle response.
• Increased Power Potential: By alleviating a key exhaust restriction, the engine can breathe more freely at high RPM, supporting increased horsepower and torque outputs, especially in tuned applications.
• Superior Durability: The EV8+ stainless steel construction and hardened tip resist wear, pitting, and stem galling, offering a dramatically longer service life compared to OEM valves in modified applications.
• Optimized for Headwork: The +1mm oversize is the ideal companion for professional cylinder head porting and valve seat machining, allowing for a matched, high-flow exhaust port runner.

Vehicle Fitment & Application Notes

Primary Application: Toyota 1JZ-GTE inline-six cylinder engines. This valve is designed as a direct or near-direct replacement in factory 1JZ cylinder heads, though professional machining is required for the oversize dimension.

Critical Installation Requirements: This is not a drop-in component. The +1mm oversize (31mm) head diameter mandates that the cylinder head’s exhaust valve seats be professionally machined (cut) to the larger diameter to ensure a perfect, concentric seal. Furthermore, valve-to-piston clearance must be rigorously checked, especially in engines with altered compression ratios or aggressive camshaft profiles. It is highly recommended to use matching Brian Crower valve springs and retainers to control the valve train reliably at elevated RPM. Always install as part of a full, matched set of valves for balanced cylinder performance.

Technical Specifications

Installation & Final Considerations

The BC3313-1 valve is a precision instrument. Its performance and longevity are contingent upon correct installation. This includes a multi-angle valve seat cut performed by a machinist with experience in performance head work, ensuring the contact seat is centered and of the correct width. Post-machining, a thorough multi-step cleaning of the cylinder head is imperative to remove all metallic debris. Final assembly must include precise measurement of installed spring height and seat pressure using the appropriate spring kit. When integrated into a balanced build—complemented by quality camshafts, porting, and engine management—this individual valve becomes a fundamental enabler of the 1JZ-GTE’s true potential, offering a measurable upgrade in airflow, thermal safety, and long-term durability for the serious enthusiast or competitor.
