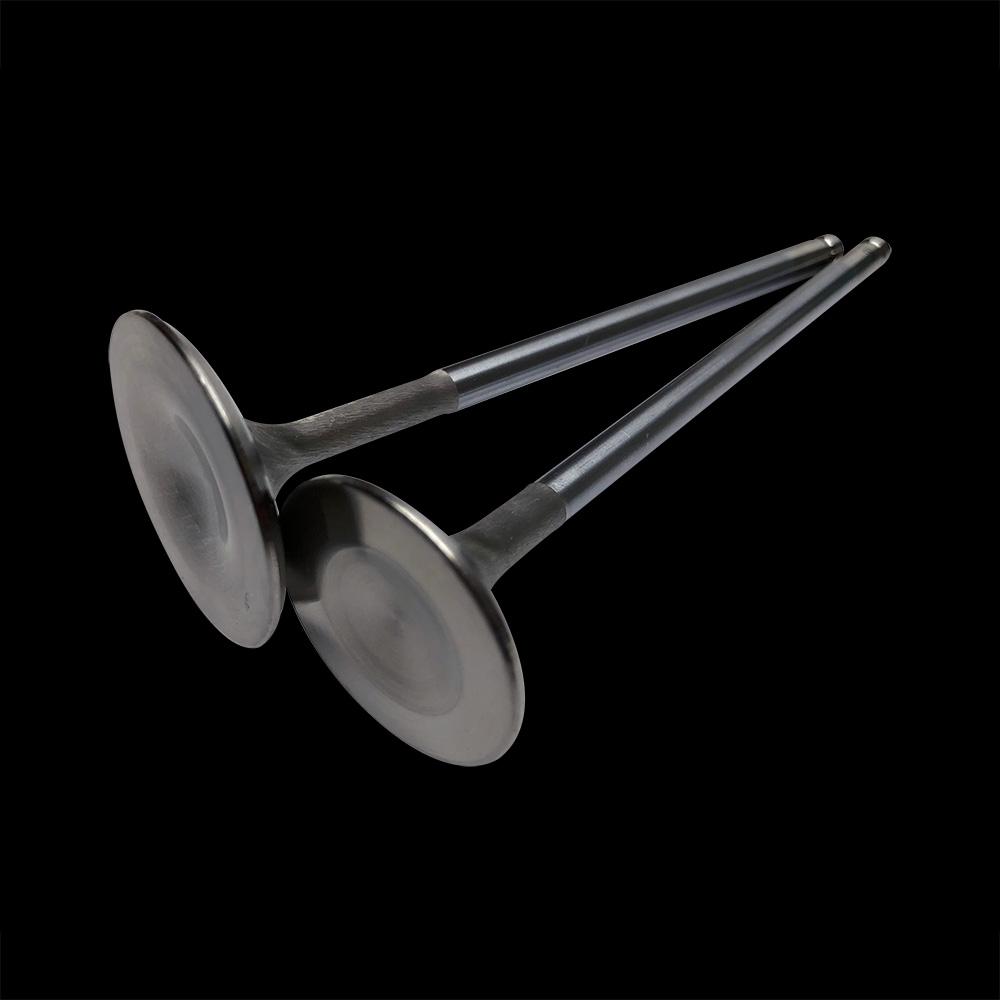

BC3363 – Toyoya 4AGE 16v Exhaust Valves (27mm / +1mm) – set/8

For the dedicated Toyota 4AGE 16v builder seeking to extract every ounce of reliable power, valve train integrity is non-negotiable. The factory exhaust valves, while robust for OEM purposes, become the limiting factor in high-RPM, high-temperature environments common in track, rally, or spirited street applications. The Brian Crower BC3363 Exhaust Valve Set represents a definitive engineering solution, transforming a critical point of failure into a pillar of strength and performance. This meticulously crafted set of eight 27mm (+1mm oversize) valves is not merely a replacement part; it is a systematic upgrade designed to increase exhaust flow capacity, manage extreme thermal loads, and provide a bulletproof foundation for aggressive cam profiles and forced induction. Engineered from premium Inconel® 751 alloy and finished to exacting tolerances, the BC3363 set is the calculated choice for builders who understand that sustainable power gains are built from the valvetrain up.

Engineering for Extreme Conditions: Material & Design

The paramount challenge for any exhaust valve is enduring relentless thermal cycling and mechanical stress. Brian Crower addresses this with a purpose-driven material selection and design philosophy. The BC3363 valves are forged from Inconel® 751, a nickel-chromium superalloy renowned in aerospace and motorsport for its exceptional high-temperature strength, corrosion resistance, and resistance to creep and oxidation. Unlike standard stainless steel valves that can soften and tulip under sustained heat, Inconel 751 maintains its tensile strength and dimensional stability at temperatures exceeding 1300°F (704°C). This directly translates to reduced valve stretch, maintained seat integrity, and the prevention of catastrophic valve failure during extended high-load operation.

Beyond the alloy, the valve’s geometry is optimized for performance. The +1mm oversize (27mm versus the stock 26mm) increases the curtain area for exhaust gas evacuation, reducing backpressure and improving volumetric efficiency, a critical factor for NA builds chasing top-end power. The stems are precision ground and micro-polished to reduce friction within the guide, promoting smoother valve motion and reducing wear. The machining of the lock groove and tip is executed with CNC precision, ensuring perfect compatibility with aftermarket retainers and locks for a stable, reliable valvetrain assembly.

Precision Specifications & Technical Data

Successful engine building is an exercise in precision. The BC3363 set provides the exact specifications required for proper machining, clearancing, and assembly. Below are the critical technical dimensions and data points.

Performance Benefits & Application Rationale

Installing the BC3363 valves is a strategic decision with measurable returns. The benefits cascade throughout the engine’s operational envelope, providing tangible improvements in output, reliability, and safety margin.

• Increased Exhaust Flow: The 27mm head diameter provides a larger port for exhaust gases to exit, reducing pumping losses and backpressure. This is essential for maximizing the efficiency of aftermarket camshafts, headers, and high-flow intake systems, particularly in naturally aspirated configurations where airflow is paramount.
• Unmatched Thermal Management: The Inconel 751 construction is the core of this upgrade. It allows the valve to survive in the punishing environment of the combustion chamber under boost or sustained high RPM, resisting deformation and oxidation that can lead to hot spots, pre-ignition, and ultimately, valve seat recession or drop.
• Enhanced Durability & Longevity: The combination of superior material and precision manufacturing results in a valve with a dramatically extended service life under performance conditions. It resists wear, pitting, and micro-cracking, making it ideal for endurance racing or high-mileage tuned street engines.
• Foundation for Aggressive Tuning: These valves provide the necessary safety margin to reliably support increased compression, aggressive ignition timing, turbocharging, or nitrous oxide. They are a prerequisite for builders pushing the 4AGE platform beyond its stock limits.
• Precision Fitment: Manufactured to strict quality controls, these valves ensure consistent stem-to-guide clearance and perfect sealing when paired with correctly machined seats and quality valve seals, eliminating variables during assembly.

For a deeper technical understanding of why material science is critical in performance valvetrains, consider reading this analysis on the properties and advantages of Inconel valves in high-horsepower applications.

Vehicle Fitment & Installation Notes

Vehicle Fitment: The BC3363 valve set is engineered specifically for the Toyota 4A-GE 16-valve inline-4 engine. This includes, but is not limited to, applications in:

Toyota Corolla (AE86, AE92, AE101), Toyota MR2 (AW11), Toyota Celica (ST162 with 4A-GE), Toyota Levin/Trueno, and various rear-wheel-drive and front-wheel-drive platforms globally that utilize the 4A-GE 16v engine (codes: 4A-GELU, 4A-GEC, etc.). Always verify engine code and head casting (large vs. small port) compatibility prior to purchase.

Critical Installation Requirements: This is a +1mm oversize component; installation is not a direct drop-in. Professional machine shop work is mandatory.

1. Valve Seat Machining: The cylinder head exhaust valve seats must be professionally CNC or serdi-cut to precisely match the new 27mm valve head diameter and the 45° seat angle. The seat must also be positioned correctly for optimal flow and seal.
2. Valve Guide Inspection: Existing valve guides must be inspected for wear and replaced if necessary. A proper stem-to-guide clearance (typically 0.001″ to 0.0025″) is critical for oil control and valve stability.
3. Piston-to-Valve Clearance: When used with aftermarket camshafts featuring increased lift and duration, piston valve reliefs or fly-cutting may be required to ensure adequate clearance. Always perform a thorough clay or checking spring clearance test during assembly.
4. Complementary Components: For a balanced, high-RPM valvetrain, pair these valves with appropriate Brian Crower or equivalent valve springs, titanium retainers, and hardened locks designed for the increased load and RPM potential.

The Definitive Upgrade for the Discerning 4AGE Builder

In the pursuit of performance, compromises at the component level inevitably lead to failures at the system level. The Brian Crower BC3363 27mm Exhaust Valve Set eliminates the compromise for one of the engine’s most critically stressed components. It transcends the role of a simple replacement, serving as a foundational performance modification that enables and protects further power additions. By investing in valves engineered from Inconel 751 and manufactured to motorsport standards, you are not just buying parts; you are purchasing reliability, headroom, and peace of mind. For the 4AGE enthusiast building an engine meant to withstand the rigors of competition or to deliver years of spirited driving, the BC3363 set is not an option—it is an essential component in a logically constructed, high-performance engine blueprint. This is engineering applied with intent, delivering measurable results where it matters most: on the dyno, on the track, and in the longevity of your engine.
