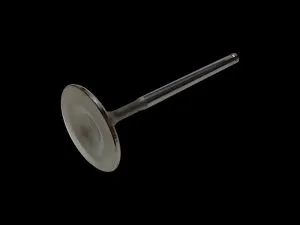

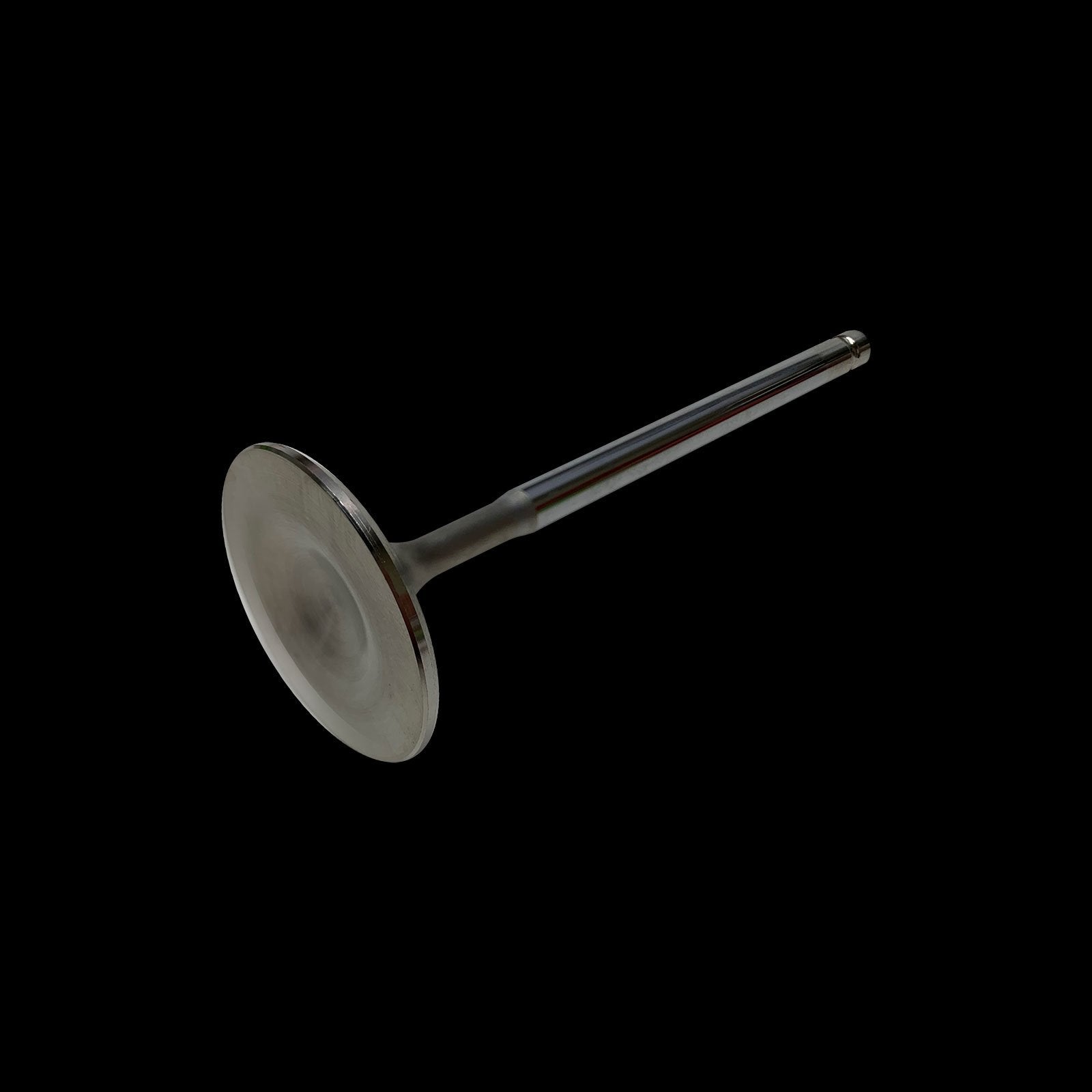

Brian Crower BC3450-1: Premium Stainless Steel Intake Valve for Ford EcoBoost Engines
For the serious engine builder or technician addressing valvetrain failure or pursuing a meticulous performance build, the Brian Crower BC3450-1 represents the definitive solution for a single, high-performance intake valve. Engineered specifically for the demanding environment of modern direct-injection Ford EcoBoost engines, this is not a generic replacement part. It is a precision-forged component designed to restore—and often exceed—factory performance parameters while offering superior longevity. The BC3450-1 is a 32.5mm standard (STD) diameter intake valve crafted from EV8+ stainless steel, providing a critical upgrade in strength, thermal management, and flow characteristics. This valve is the choice of professional engine builders who understand that foundational valvetrain integrity is non-negotiable for reliability and power. Whether you’re replacing a single damaged valve after a timing event or constructing an entire high-output valvetrain, this component provides the exacting quality required.
Core Advantages of the BC3450-1 Intake Valve
Selecting the correct valve material and design is paramount for engine durability and efficiency. The Brian Crower BC3450-1 is engineered with a suite of benefits that address the specific weaknesses of stock components under increased stress.
- EV8+ Stainless Steel Construction: Superior to common OE materials, this grade offers exceptional tensile and yield strength, directly combating valve stretch and deformation under high-RPM and boost-induced cylinder pressures.
- Optimized Thermal Management: The stainless steel alloy and precise machining dissipate heat more effectively from the valve head, a critical factor in turbocharged applications where exhaust gas temperatures (EGT) are elevated, helping to prevent pre-ignition and detonation.
- Enhanced Flow Profile: The back-cut profile on the valve head underside is designed to improve airflow into the cylinder, reducing restriction and supporting volumetric efficiency for gains in both horsepower and torque.
- Dimensional Precision & Consistency: Each valve is manufactured to exacting tolerances, ensuring perfect fitment, consistent valve seat contact, and uniform valve train dynamics across all cylinders.
- Direct OE Replacement: As a standard 32.5mm diameter valve, it is designed as a direct, bolt-in replacement for the original equipment, requiring no cylinder head modification for standard applications, making it ideal for repairs and stock-diameter performance builds.
Engineering for the EcoBoost Environment
The Ford EcoBoost engine family presents a unique set of challenges: high compression ratios, direct fuel injection, and forced induction. This combination creates extreme pressure and thermal loading on the valvetrain, particularly the intake valves, which are exposed to intense heat from combustion without the fuel-wash cooling effect present in port-injected designs. The BC3450-1 is engineered as a countermeasure.
Material Science and Forging Process
Brian Crower utilizes a proprietary EV8+ stainless steel, which is hot-forged to align the grain structure of the metal, dramatically increasing its fatigue strength and resistance to impact. This forging process creates a far more durable component than a machined-from-bar-stock alternative. The valve stem is then precision-ground and hard-chromed for exceptional wear resistance against the valve guide, reducing friction and the risk of stem galling. The margin of the valve head is carefully machined to a specific thickness, providing the optimal balance between strength for durability and minimal mass for high-RPM stability.
Back-Cut & Seat Angle Design
A key performance feature is the incorporation of a back-cut on the valve head. This machined angle on the underside of the valve head effectively reduces the diameter of the valve at the seat transition, minimizing flow restriction as air enters the cylinder. This subtle but critical design improves low-lift flow, which is essential for street-driven turbocharged engines where throttle response and mid-range torque are paramount. Paired with the standard 45-degree seat angle, this valve ensures a perfect seal and efficient heat transfer to the cylinder head. For those interested in the aerodynamics of valve design, resources like this technical discussion on optimizing valve angles provide deeper context.
Vehicle Fitment & Application Notes
Primary Application: This individual BC3450-1 valve is designed for use in late-model Ford EcoBoost 4-cylinder engines. It is crucial to verify valve specifications and measure existing components before installation.
Common Fitment Includes:
- Ford 2.0L EcoBoost (2013-2018+): Found in Ford Focus ST, Fusion, Escape, and Edge.
- Ford 2.3L EcoBoost (2015-2023+): Used in Ford Mustang (EcoBoost), Focus RS, Explorer, and Ranger.
- Ford 2.7L EcoBoost V6 (2015-2023+): Note: This is a twin-turbo V6 application. Confirm valvetrain specifications for your specific engine year and code, as some variations may exist.
Installation Requirement: Professional installation is mandatory. This includes three-angle valve seat cutting to match the new valve, valve guide inspection/replacement, and proper measurement of valve installed height and spring pressures to ensure correct valve train geometry. Always install with new corresponding valve springs, retainers, and locks designed for the application.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | BC3450-1 |
| Valve Type | Intake |
| Head Diameter | 32.5mm (Standard / STD) |
| Stem Diameter | 5.5mm (Confirm against OE specification) |
| Overall Length | ~101.5mm (Must be verified for specific application) |
| Seat Angle | 45 degrees |
| Material | EV8+ Forged Stainless Steel |
| Stem Treatment | Hard Chrome Plated |
| Lock Groove | Standard (OE Style) |
| Quantity | 1 Valve |
Disclaimer: Specifications are subject to change by the manufacturer. Always physically compare the new valve to the original component and consult engine-specific service information before installation. Fitment for non-listed applications should not be assumed.
