BC3927 – Nissan VQ35DE – Exhaust Valve Guides

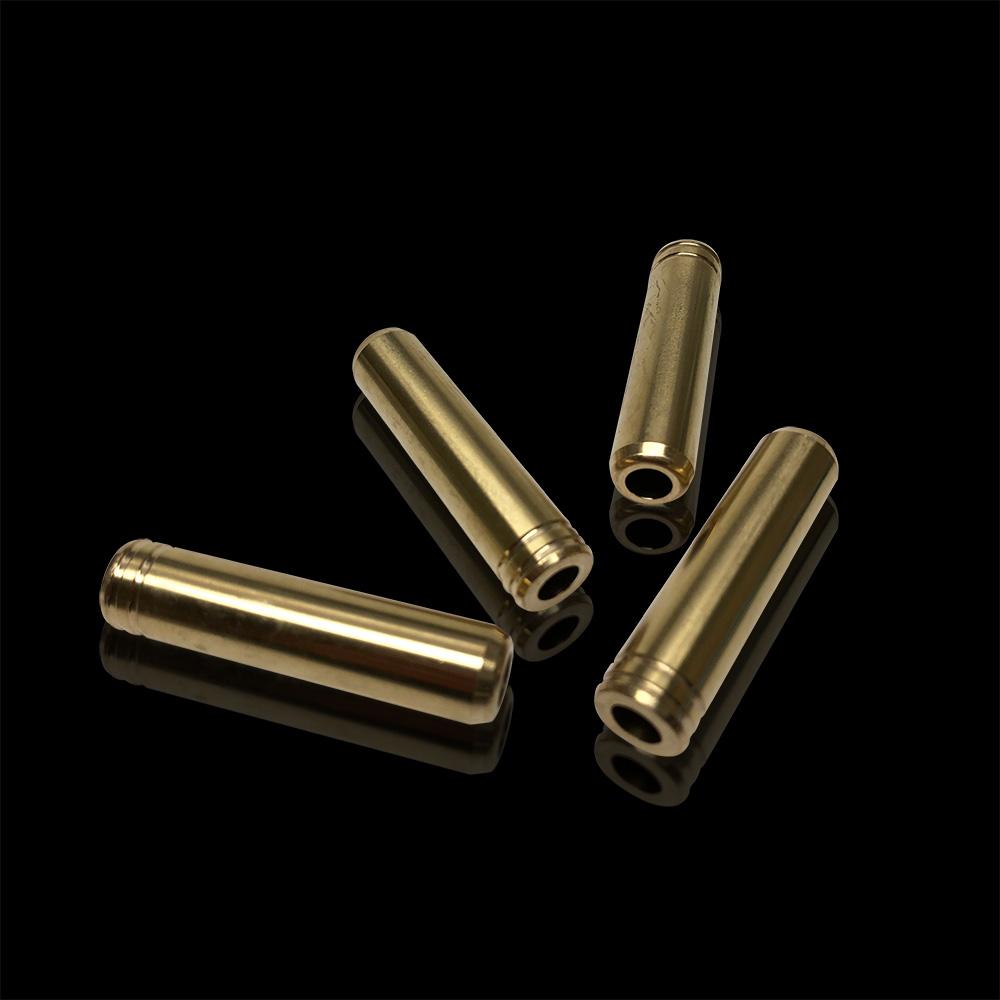

In the high-strung world of performance engine building, where every thousandth of an inch and every material property is scrutinized, the valve guide stands as a silent sentinel. It is a component whose failure is catastrophic, yet whose optimal performance is often taken for granted. For the renowned Nissan VQ35DE powerplant—a foundation for builds ranging from aggressive NA street engines to forced induction monsters—the factory exhaust valve guides represent a defined ceiling. The BC3927 Exhaust Valve Guide Set from Brian Crower is not a mere replacement; it is a fundamental material and dimensional upgrade engineered to transcend that ceiling. Crafted from premium C95400 manganese silicon aluminum bronze and precision-machined to a critical 6.6mm inner diameter, these guides are the definitive solution for mitigating heat-induced valve stem galling, stabilizing valvetrain geometry under extreme RPM, and ensuring long-term sealing integrity for the VQ platform. This is component engineering for those who measure success in sustained horsepower and durability, not just peak numbers.

The Critical Failure Point: Factory VQ35DE Exhaust Guides

The Nissan VQ35DE is a masterpiece of mass-production engineering, but its design priorities necessarily balanced cost, manufacturability, and longevity within factory tolerances. The stock powdered metal valve guides, while adequate for OEM service, become the proverbial weakest link when the engine’s thermal and mechanical loads are elevated through performance tuning. The primary failure mode is excessive wear and valve stem galling, a frictional welding and tearing process exacerbated by the intense heat concentrated in the exhaust port. This wear manifests as increased valve stem-to-guide clearance, which initiates a destructive cascade: compromised valve stem seal effectiveness leading to oil consumption, destabilized valve motion harming seat sealing and accelerating wear, and ultimately, the risk of a dropped valve. The BC3927 set addresses this not by incrementally improving the OEM concept, but by re-engineering the component from the alloy up for a dedicated performance environment.

Material Science: The C95400 Aluminum Bronze Advantage

The cornerstone of the BC3927’s superiority is its construction from C95400 manganese silicon aluminum bronze. This is not a standard brass or common bronze; it is a high-performance bearing alloy specified in aerospace and heavy industrial applications. Its material properties present a paradigm shift for the valve guide’s role. The aluminum and nickel content provide exceptional high-temperature strength and resistance to annealing, meaning the guide retains its precise dimensions and crush fit even after repeated thermal cycles. The embedded manganese and silicon particles act as solid lubricants, drastically reducing the coefficient of friction against the hardened steel valve stem. This intrinsic lubricity is critical during cold starts and high-temperature operation, directly combating galling. Furthermore, this alloy possesses superior thermal conductivity compared to powdered metal, helping to pull heat away from the valve stem and into the cylinder head more efficiently. For a deeper dive into the metallurgy of performance bronze alloys, resources such as those found on SAE International’s technical paper library can provide extensive context. The result is a guide that wears in, not out, promoting an ideal running clearance that maintains stability over a vastly extended service interval.

Precision Dimensions & Performance Benefits

Brian Crower manufactures the BC3927 guides to exacting tolerances, ensuring a perfect press-fit into the VQ35DE cylinder head and a precisely honed 6.6mm inner diameter for the valve stem. This dimensional rigor translates into direct, measurable performance gains.

• Elimination of Heat-Induced Valve Stick: The bronze alloy’s stability and lubricity prevent the binding and hesitation of exhaust valves under extreme heat, a common issue in turbocharged or high-compression applications.
• Optimized and Stable Valvetrain Geometry: By maintaining tight, consistent clearance, the guide ensures the valve retainer and spring remain perfectly aligned with the valve stem centerline. This reduces side-loading on valves, springs, and retainers, minimizing parasitic loss and preventing premature component failure.
• Superior Oil Control and Seal Longevity: Stable stem guidance allows the valve stem seals to function as designed, drastically reducing oil ingress into the exhaust port. This keeps combustion chambers cleaner and prevents oil carbon buildup on valve stems and guides.
• Extended Engine Service Life: The wear resistance of C95400 bronze effectively makes valve guide wear a non-issue for the lifespan of most performance builds, eliminating a key maintenance point and source of power degradation over time.
• Foundation for High-RPM and Forced Induction Builds: Whether sustaining 8,000 RPM or containing the exhaust heat of a turbocharger, these guides provide the valvetrain foundation necessary for reliable, repeatable power delivery.

Technical Specifications & Vehicle Fitment

The BC3927 is application-specific. Below are its precise technical specifications and the comprehensive vehicle fitment for the Nissan VQ35DE engine family.

Vehicle Fitment

Primary Application: Nissan VQ35DE Engine (Dual Overhead Cam, 60° V6).
Notable Vehicle Models:
• Nissan 350Z (Z33) (2003-2008)
• Nissan Altima (2002-2006 with VQ35DE)
• Nissan Maxima (2002-2003 with VQ35DE)
• Infiniti G35 (2003-2006)
• Nissan Murano (2003-2007)
• Infiniti FX35 (2003-2008)
Note: Always verify engine code and cylinder head compatibility prior to purchase. Fitment is based on the exhaust valve guide bore of the cylinder head.

Installation Considerations for the Master Builder

Installing BC3927 guides is a precision machine shop operation, not a backyard press-fit. The OEM guides must be cleanly removed, typically using a properly sized drift and arbor press, taking care not to damage the cylinder head casting. The bore must then be meticulously cleaned and measured. The new bronze guides are pressed in using a controlled, parallel method—often with the cylinder head uniformly heated to around 200°F (93°C) to expand the aluminum head, easing installation and ensuring a consistent, secure interference fit upon cooling. Critical step: After installation, the inner diameter must be finish-honed to the final 6.6mm dimension to achieve the specified stem clearance for your specific valves (typically 0.001″ to 0.0025″). Never assume the guide is ready for the valve straight from the box; final honing is mandatory for proper operation and longevity. This process guarantees the material advantages are fully realized in a perfectly aligned and sized assembly.

The Uncompromising Choice for VQ35DE Integrity

Choosing the BC3927 Exhaust Valve Guides is a decision that prioritizes the fundamental integrity of the VQ35DE’s combustion chamber. It is an investment in preventing failure rather than reacting to it. For any build where thermal management, RPM limit, or boost pressure is pushed beyond factory parameters, these guides are not an option; they are a necessity. They represent the intersection of advanced metallurgy, precision manufacturing, and proven performance engineering. By fortifying this single, small component, you stabilize the entire valvetrain, protect the cylinder head, and build a foundation for power that is as durable as it is potent. Specify Brian Crower BC3927—the definitive upgrade for the Nissan VQ35DE exhaust valve guidance system.
