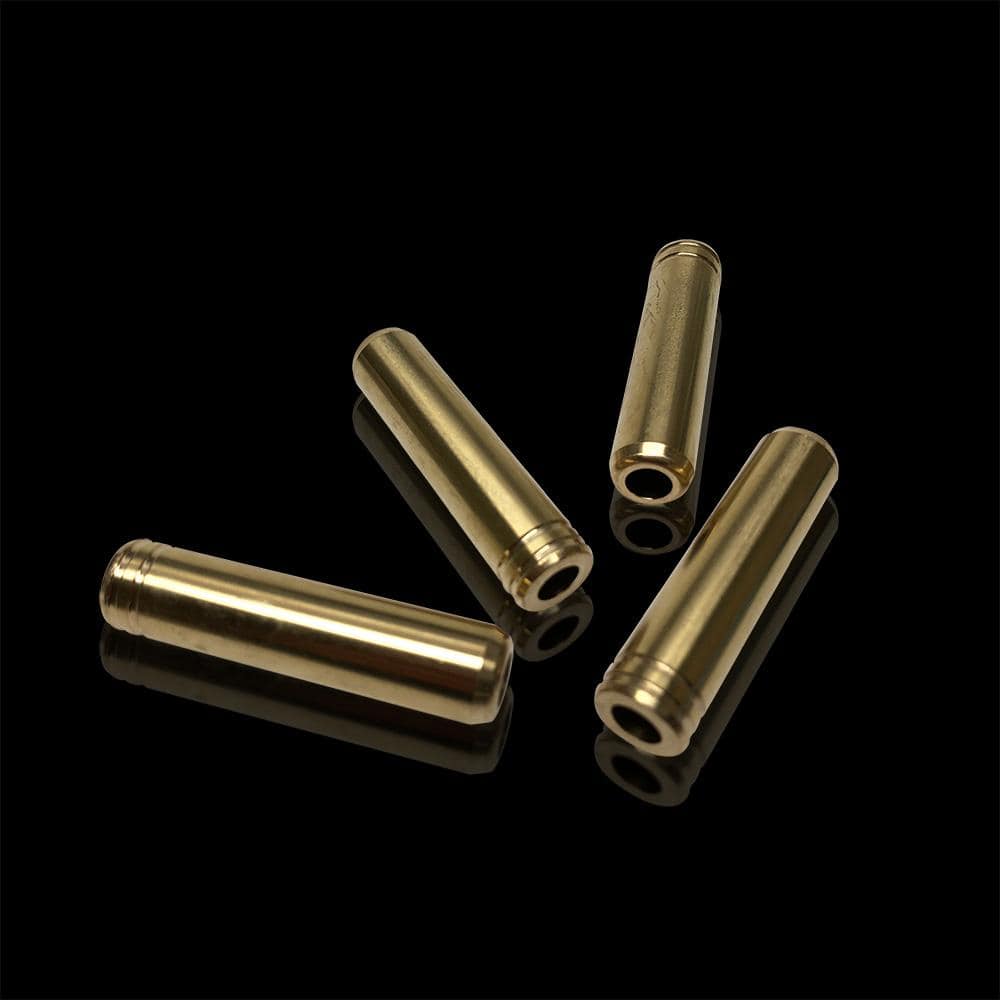

BC3900-2 – Honda H22 Series VTEC Intake Valve Guides

Precision Engineered Valve Guides: The Unsung Hero of High-RPM VTEC Performance

For the builder seeking not just power but unshakeable reliability in a high-strung Honda H22 VTEC engine, the valvetrain is the final frontier. While camshafts and valves receive the glory, it is the valve guide—the critical interface controlling valve alignment and heat dissipation—that often dictates the success or failure of a performance build. The Brian Crower BC3900-2 Valve Guide Set is engineered from the ground up to address the specific thermal and mechanical stresses inherent to the H22A’s aggressive cam profiles and high-lift valve events. This is not a simple OEM replacement; it is a material science and precision machining upgrade designed to provide a stable, low-friction foundation for your valvetrain, ensuring consistent valve seal, optimal heat transfer, and extended service life under extreme conditions. For the mechanic who understands that true performance is built from the bottom up, starting with fundamentals like the BC3900-2 is non-negotiable.

Material Science: The Aluminum Bronze Advantage

The cornerstone of the BC3900-2’s performance is its construction from a proprietary aluminum bronze alloy. This material is selected after exhaustive testing for its superior blend of properties critical for a valve guide application. Unlike powdered metal or cast iron OEM guides, aluminum bronze exhibits exceptional heat dissipation characteristics, drawing thermal energy away from the valve stem and into the cylinder head more efficiently. This is paramount in a VTEC engine, where sustained high-RPM operation generates intense localized heat at the valve guide boss. Furthermore, the alloy offers a naturally low coefficient of friction against steel valve stems, reducing wear on both components without the immediate need for external lubricants that can burn off. Its excellent resistance to galling and seizing under marginal lubrication scenarios provides a critical safety margin during cold starts or in high-boost applications where oil control can be challenging. For an in-depth look at the metallurgy behind performance valve train components, consider this resource on selecting valve guide materials from EngineLabs.

Performance Benefits & Engineering Outcomes

Installing the BC3900-2 Valve Guides transforms a potential weak point into a asset of durability. The direct benefits to your H22 build are measurable and significant:

• Enhanced Thermal Management: Superior heat conductivity lowers valve stem temperatures, reducing the risk of carbon buildup and hot-spots that can lead to pre-ignition or valve stem seal failure.
• Optimized Valve Stability: Precision-machined to exacting tolerances, these guides ensure perfect concentricity and alignment for the valve, which is critical for maintaining a consistent seal against the seat at every RPM.
• Reduced Friction & Wear: The compatible materials and fine surface finish minimize parasitic drag on the valvetrain, freeing up horsepower and dramatically extending the service interval for both guides and valves.
• Increased Durability Under Stress: The aluminum bronze alloy maintains its structural integrity and dimensional stability far beyond the limits of stock guides, making it ideal for forced induction, nitrous oxide, or sustained track use.
• Direct OEM-Style Fitment: Designed as a direct replacement for the factory 5.5mm intake valve guides, installation requires no modification to the cylinder head, utilizing standard tooling and procedures for a seamless upgrade.

Vehicle Fitment & Application Specifics

The BC3900-2 set is engineered with laser-focused application. It is specifically designed for the 5.5mm intake valve stems used in the Honda H22 series VTEC engines. Correct fitment is paramount for performance and safety. This product is confirmed to fit the following applications:

• Honda Prelude: 1992-1996 models equipped with the H22A1, H22A4 VTEC engines.
• JDM & Aftermarket Variants: Includes JDM-spec H22A, H22A Type-S, and other H22-series engines utilizing the standard 5.5mm intake valve diameter.

Critical Note: Always verify your engine’s specific valve stem diameters before purchase. This set is for INTAKE valves only. Exhaust valves typically use a different stem diameter and require a separate guide set (such as the BC3901-2 for 5.5mm exhaust). This product is intended for use in a fully machined and prepared cylinder head.

Technical Specifications & Installation Data

Professional installation by a qualified machinist or engine builder is mandatory. The following specifications are provided to ensure proper planning and execution of the cylinder head build.

Installation Precaution: The cylinder head must be at room temperature for installation. Guides are installed using a press and a properly sized stepped driver to avoid deformation. After pressing, the internal diameter (I.D.) must be finish-reamed to achieve the precise stem-to-guide clearance specified by your valve manufacturer or engine builder protocol—typically between 0.001″ to 0.0025″ for a performance street/track application. Failure to perform this final sizing operation will result in improper valve operation and rapid component failure.
