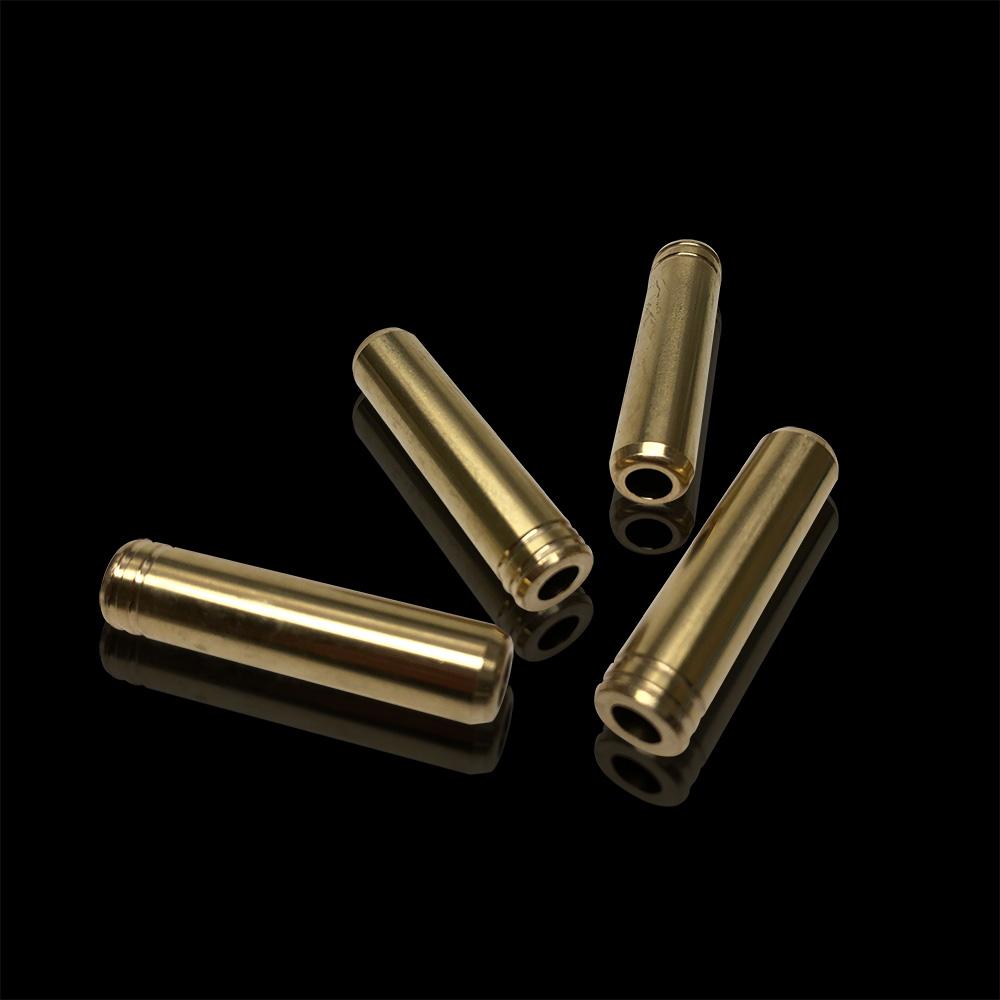

BC3932 – Toyota 7MGTE/GE – Intake Valve Guides

In the realm of high-performance Toyota 7M engine builds, from the stalwart 7M-GE to the legendary turbocharged 7M-GTE, every component’s integrity is non-negotiable. The valve guide, a seemingly humble sleeve, is a critical linchpin in the valve train’s reliability and efficiency. The Brian Crower BC3932 Intake Valve Guide Set is engineered to surpass the limitations of the stock powdered metal guides. Crafted from a high-grade, oil-impregnated phosphor bronze alloy, these guides are designed for a singular purpose: to provide unmatched durability, superior heat dissipation, and precise valve alignment under the extreme thermal and mechanical stresses inherent in modified and high-RPM applications. This isn’t just a replacement part; it’s a foundational upgrade for anyone seeking to build a 7M engine that is as reliable as it is powerful, addressing a well-documented weak point with material science and precision manufacturing.

Material & Engineering Superiority Over OEM

The factory-installed valve guides are typically constructed from a powdered iron or low-carbon steel material. While cost-effective for mass production, this material has inherent limitations in a performance environment. Under sustained high temperatures—common in turbocharged applications or extended track use—these guides can wear prematurely, leading to increased valve stem-to-guide clearance. This wear manifests as oil consumption (blue smoke), reduced compression, and compromised valve seal. The BC3932 guide is machined from a proprietary phosphor bronze alloy. This material offers a dramatically lower coefficient of friction against the steel valve stem, naturally reducing wear. Furthermore, its superior thermal conductivity acts as a heat sink, pulling critical heat away from the valve stem and head, reducing the risk of valve tuliping or seat distortion. The porous structure of the bronze is impregnated with oil during operation, creating a continuous, self-replenishing lubrication film that drastically extends service life even in marginal oiling scenarios.

Precision Fitment for Optimal Performance

Brian Crower’s manufacturing process ensures that every BC3932 guide meets exacting tolerances, crucial for maintaining correct valve geometry. Incorrect guide installation or out-of-spec guides can lead to valve seat runout, causing poor sealing and localized hot spots on the valve face. These guides are precision-machined to the correct outer diameter (OD) for a perfect press-fit into the cylinder head, and the inner diameter (ID) is honed to provide the ideal running clearance for a standard or oversize 6.0mm intake valve stem. This precise clearance is vital: too tight, and the valve will stick or gall under heat; too loose, and you lose oil control and valve stability. By providing a consistently perfect fit, these guides ensure that the valve operates in a perfectly concentric path, maximizing seal integrity at the valve seat—a fundamental requirement for achieving and maintaining optimal compression and combustion efficiency.

Key Benefits of the BC3932 Valve Guide Set

• Enhanced Durability: Phosphor bronze construction offers exceptional resistance to wear and galling, far outlasting OEM powdered metal guides, especially in forced-induction or high-RPM builds.
• Superior Heat Management: Excellent thermal conductivity dissipates heat from the valve stem more effectively, protecting valve and seat integrity and reducing the risk of detonation-prone hot spots.
• Self-Lubricating Design: The oil-impregnated porous bronze structure maintains a critical lubrication film, reducing friction and wear even during cold starts or under high lateral loads.
• Maintains Oil Control: Precise stem-to-guide clearance minimizes oil migration down the valve stem into the combustion chamber, reducing oil consumption and carbon buildup on valves and pistons.
• Foundation for Head Stability: Provides a stable, long-lasting platform for valvetrain components, ensuring consistent valve timing, lift, and seal over the engine’s lifespan, which is critical for engines using aggressive camshaft profiles.

Technical Specifications & Details

The BC3932 is designed as a direct, performance-oriented replacement. The set includes a complete set of intake valve guides for one cylinder head. It is imperative to note that proper installation by a machinist experienced in performance engine building is required. The old guides must be removed without damaging the cylinder head casting, and the new guides must be pressed in to the correct depth and, most critically, reamed or honed to achieve the final specified stem clearance after installation, as the press-fit process can slightly distort the ID. This final sizing is what guarantees the performance benefits.

Vehicle Fitment: Toyota 7M Engine Series

The BC3932 set is engineered specifically for the Toyota 7M-GE and 7M-GTE inline-six cylinder engines. These engines were found in several iconic Toyota models throughout the 1980s and early 1990s. Correct fitment is guaranteed for the following applications. Always verify engine displacement and identifying marks (e.g., “7M-GTE” cast on the block) before purchase.

Primary Applications:
• Toyota Supra (MA70, GA70, JZA70) – 1986.5-1992 with 7M-GE (3.0L DOHC) or 7M-GTE (3.0L DOHC Turbo)
• Toyota Cressida (MX83) – 1988-1992 with 7M-GE engine
• Toyota Soarer (MZ10, MZ11) – 1986-1991 with 7M-GE or 7M-GTE engine

Note: This component is for the cylinder head only. Fitment is determined by engine type, not solely by vehicle model. It is compatible with both standard and oversize 6.0mm intake valves from quality manufacturers like Brian Crower, Ferrea, or Supertech.

The Critical Role in a Built Head

Installing the BC3932 guides is a fundamental step when performing any serious cylinder head work on a 7M engine. Whether you are addressing oil consumption issues on a stock rebuild, preparing for a turbo upgrade on a GE, or building a full-race GTE, these guides provide the necessary foundation. They work in concert with performance valves, springs, and seals to create a valvetrain that can withstand increased cylinder pressures and RPM. The importance of valve guide material selection is often discussed by engine builders, with resources like this article on valve guide materials and installation providing deeper technical context for the advantages of bronze. For the Toyota 7M enthusiast, the BC3932 is not merely a maintenance item; it is a strategic investment in the longevity and performance ceiling of one of Toyota’s most formidable inline-six engines.
