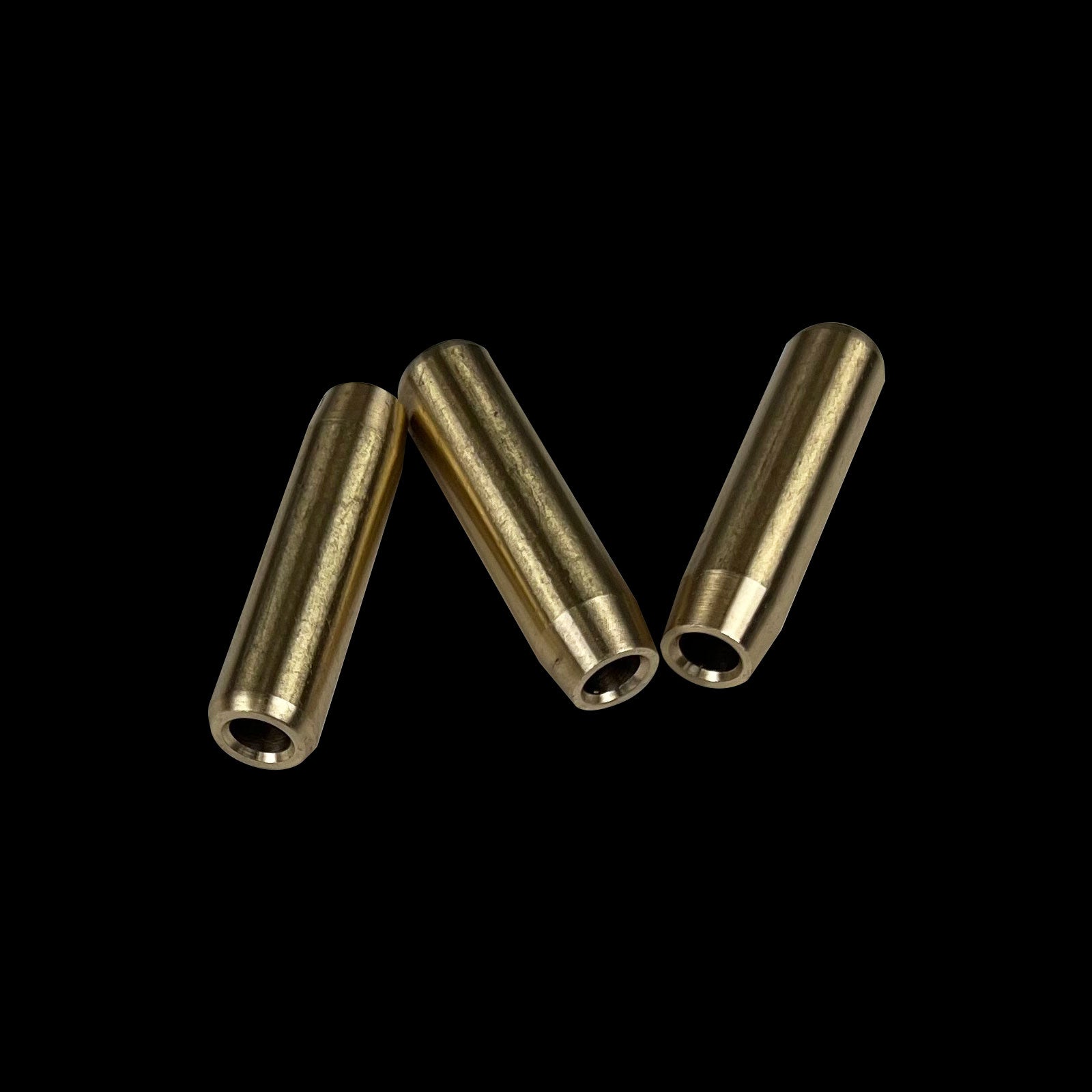

BC3963 – Can-Am X3 (17-up) Intake/Exhaust Valve Guides

In the realm of high-performance UTV engineering, the Can-Am X3 equipped with the Rotax 900 ACE engine represents a pinnacle of power and agility. However, sustaining this performance under extreme conditions demands components that exceed OEM specifications. The BC3963 Intake and Exhaust Valve Guides from Brian Crower are engineered specifically for this purpose. Valve guides are a critical, yet often overlooked, linchpin in valvetrain integrity. They serve as the precision-bearing surface for the valve stems, controlling valve alignment, managing heat transfer from the valve head into the cylinder head, and ensuring consistent seal throughout the combustion cycle. Factory guides, while adequate for stock use, can degrade under the increased thermal and mechanical loads of aggressive driving, aftermarket tuning, or forced induction. The BC3963 set is a direct, performance-oriented upgrade, crafted from advanced Manganese Silicon Aluminum Bronze alloy to deliver unmatched durability, thermal management, and dimensional stability for the Can-Am X3 platform from 2017 onward. This product description, authored from the perspective of a master performance mechanic, will dissect the engineering, benefits, and technical specifications of these essential components.

Understanding Valve Guide Functionality in the Rotax 900 Engine

The Rotax 900 ACE twin-turbocharged triple-cylinder engine is a marvel of compact power, but its high-revving nature and forced induction generate significant valvetrain stress. Valve guides must perform three core functions: alignment, heat dissipation, and lubrication management. Proper alignment prevents valve stem binding and ensures the valve face mates perfectly with the seat for optimal compression. Efficient heat transfer is non-negotiable; exhaust valves, in particular, operate at temperatures exceeding 1,400°F, and the guide must conduct this heat into the cylinder head and cooling system to prevent valve tuliping or seat erosion. Finally, the guide must allow a controlled film of oil for lubrication while minimizing oil ingress into the combustion chamber (oil consumption). The BC3963 guides are designed to optimize all three functions beyond the capability of the stock powdered metal or cast iron guides commonly used, directly contributing to sustained horsepower output and engine longevity under duress.

Superior Material: Manganese Silicon Aluminum Bronze

The cornerstone of the BC3963’s performance is its material construction: a proprietary Manganese Silicon Aluminum Bronze alloy. This is not a standard bronze; it is a high-strength, bearing-grade copper alloy specifically formulated for extreme service applications. The elemental composition provides a synergistic set of properties. The copper base offers exceptional thermal conductivity, approximately five times greater than typical cast iron, facilitating rapid heat transfer away from the valve stem. Aluminum and silicon within the matrix increase hardness and wear resistance without sacrificing the alloy’s inherent lubricity, which is crucial for reducing friction on the valve stem. Manganese enhances tensile strength and corrosion resistance. This material choice results in a guide that resists galling, maintains its precise internal diameter under heat, and exhibits superior anti-seize characteristics compared to ferrous materials. For a comprehensive technical analysis on the metallurgical advantages of bronze alloys in valvetrain applications, consult this authoritative resource on valve guide materials and technology.

Key Benefits of BC3963 Valve Guides

Upgrading to the Brian Crower BC3963 valve guides provides a measurable improvement in engine robustness and performance consistency. The benefits are multifaceted, directly addressing the failure points of stock components in modified or heavily used Can-Am X3 units.

• Enhanced Thermal Management: The high thermal conductivity of the bronze alloy drastically lowers operating temperatures at the valve stem, reducing the risk of heat-related valvetrain failures and protecting valve stem seals.
• Superior Wear Resistance: The hardened alloy composition provides excellent resistance to abrasion and wear, even in environments with marginal lubrication, ensuring consistent valve lash and longevity.
• Reduced Friction & Improved Lubricity: The inherent lubricity of the bronze material minimizes friction between the valve stem and guide, reducing parasitic loss and promoting smoother valve operation at high RPM.
• Precision Machining for Optimal Fit: Each guide is CNC-machined to exacting tolerances, ensuring a perfect press-fit into the cylinder head and a consistent, precise internal diameter for the valve stem, critical for maintaining proper oil control.
• Compatibility with High-Performance Valves: Designed to work seamlessly with both stock and aftermarket performance valves, including those from Brian Crower’s own catalog, making them ideal for full valvetrain upgrades.
• Increased Engine Longevity: By providing stable, reliable valve guidance, these guides protect the entire valvetrain—valves, seats, springs, and retainers—from misalignment and shock loads, extending service intervals and rebuild cycles.

Vehicle Fitment for Can-Am X3 (2017-Up)

The BC3963 valve guide set is engineered as a direct, application-specific replacement. It is designed exclusively for the Rotax 900 ACE engine family found in the following Can-Am Maverick X3 models from the 2017 model year and onward. This includes all turbocharged and non-turbo variants, as the cylinder head architecture remains consistent. Precise fitment is critical, and these guides are manufactured to match the OEM dimensions for outer diameter and length, ensuring a proper interference fit during installation. They are sold as a complete set for both intake and exhaust valves for a single cylinder head. It is a standard best practice to replace guides in matched sets and to have installation performed by a qualified machinist or engine builder who can properly size the guide bores and hone the internal diameter to the specified stem clearance after installation.

Technical Specifications and Performance Data

Below are the detailed technical specifications for the BC3963 Valve Guide set. This data is essential for engine builders and performance enthusiasts to verify compatibility and understand the product’s physical and material properties.

The integration of these valve guides into a Can-Am X3 engine build, whether for preventative maintenance or as part of a comprehensive performance overhaul, represents a foundational upgrade. They provide the structural and thermal foundation necessary for the valvetrain to handle increased boost pressures, higher RPM limits, and the relentless demands of off-road competition. By specifying the BC3963, you are investing in a component engineered not just to replace, but to fundamentally improve upon the OEM design, ensuring your Rotax 900 engine operates with maximum efficiency and reliability.
