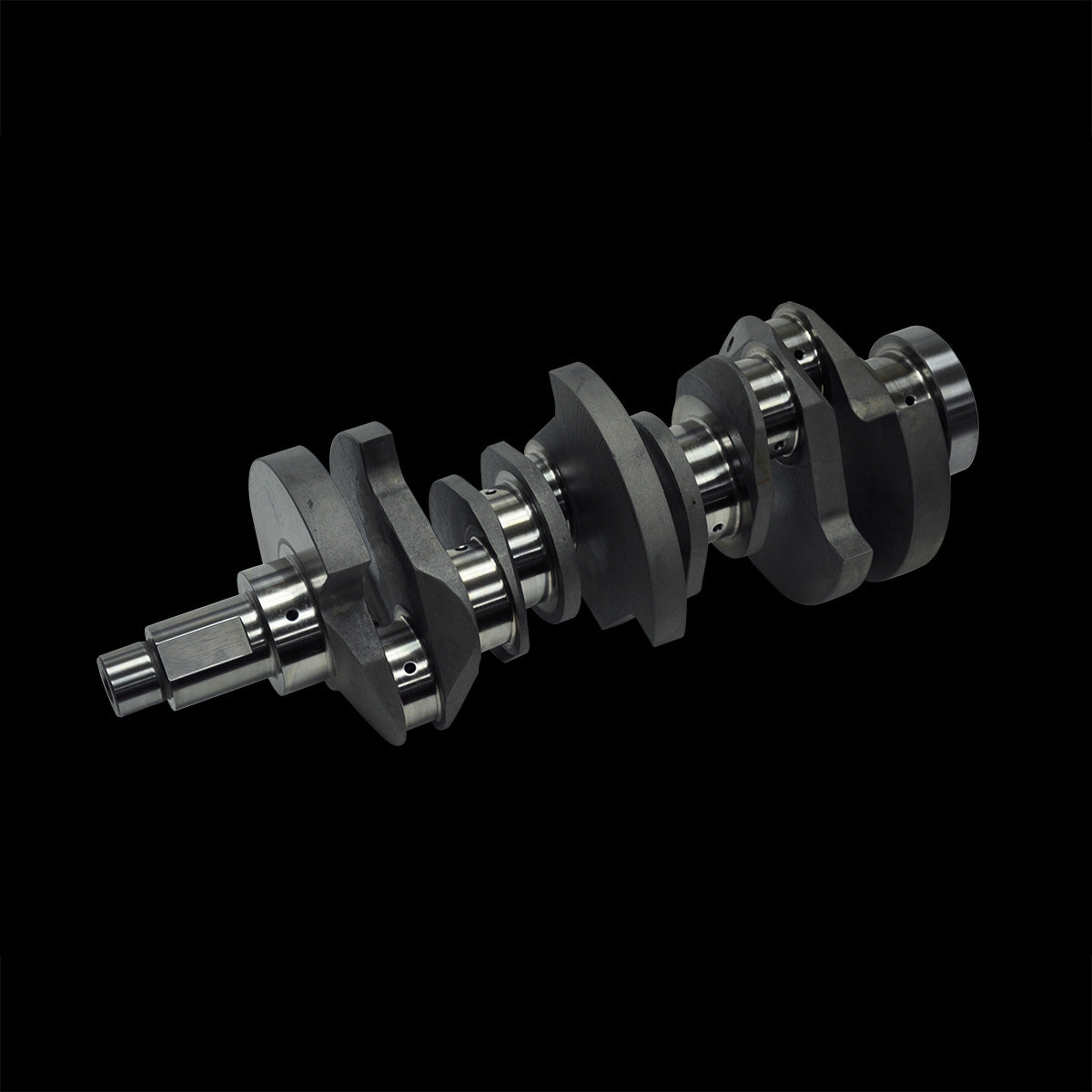

BC5369 – Toyota 1GR-FE 4340 Billet Crankshaft – 103mm Stroke, Fully Balanced

For the builder seeking to transform the robust but undersquare Toyota 1GR-FE V6 into a torque-monster, the Brian Crower BC5369 stroker crankshaft is the definitive cornerstone. Engineered from the ground up using premium 4340 chromoly billet steel and precision-machined to a 103mm stroke, this component is not merely a part—it is a fundamental recalibration of the engine’s architecture. Designed for forced induction, high-RPM NA builds, and ultimate durability, the BC5369 delivers a substantial displacement increase while providing a rock-solid foundation that far exceeds the limits of the factory cast nodular iron unit. Every facet, from its proprietary counterweight design to its micro-polished journals, is optimized for performance, resulting in a fully balanced, race-ready assembly that defines professional-grade engine building.

Engineering Philosophy & Core Design

The 1GR-FE engine, renowned for its reliability in platforms like the FJ Cruiser, 4Runner, and Tacoma, possesses inherent potential constrained by its factory rotating assembly. The BC5369 crankshaft unlocks this potential through material science and precision engineering. Starting as a solid bar of US-sourced 4340 chromoly billet steel, the crankshaft is CNC-machined to exacting tolerances, ensuring grain flow continuity and eliminating the structural weaknesses inherent in cast or even forged counterparts. The strategic increase in stroke from the factory 95mm to 103mm is a calculated move, boosting displacement to approximately 4.1 liters while maintaining a favorable rod ratio to preserve piston stability and cylinder wall loading. This design prioritizes massive low-end and mid-range torque gains—critical for off-road crawling, towing, and responsive street performance—without sacrificing the high-RPM capability demanded in competition environments.

Uncompromising Material & Manufacturing Integrity

At the heart of the BC5369’s superiority is its 4340 chromoly billet construction. Unlike forging, which hammers a heated blank into a rough shape, the billet process begins with a homogeneous bar stock, allowing for optimal grain alignment and maximum material density throughout the entire component. This results in unparalleled tensile strength and fatigue resistance, crucial for withstanding the immense stresses of nitrous oxide, turbocharging, or supercharging. Each crankshaft undergoes a proprietary heat-treating process to achieve a core hardness that balances immense strength with necessary ductility. Following machining, all oil passages are meticulously deburred and radiused, and the main and rod journals receive a micro-polish finish to minimize friction, enhance oil film stability, and drastically improve bearing life under extreme loads.

Performance Features & Build Benefits

The BC5369 is engineered as a complete system-ready component. It arrives fully balanced, including all necessary counterweight machining, allowing it to seamlessly integrate with a matched Brian Crower stroker rotating assembly or your selected high-performance components. This pre-balancing is critical for eliminating destructive harmonics, reducing parasitic vibration, and ensuring the engine can safely and reliably achieve its elevated power goals.

• Substantial Displacement Increase: Elevates the 4.0L 1GR-FE to approximately 4.1L, providing a foundational gain in torque and horsepower across the entire powerband.
• Ultimate Forced Induction Foundation: The 4340 billet steel construction offers the highest possible strength-to-weight ratio, specifically engineered to handle the cylinder pressures generated by turbo, supercharger, or nitrous applications.
• Enhanced Rotational Stability: The fully balanced assembly reduces crank flex and dampens torsional vibrations, leading to smoother operation, reduced bearing wear, and increased component longevity.
• Optimized Oiling & Journal Finish: Micro-polished journals and radiused oil passages ensure consistent lubrication under high load and RPM, critical for maintaining hydrodynamic bearing protection.
• Direct, No-Compromise Fitment: Designed as a direct replacement for the OEM crankshaft, requiring no block modification for installation when used with appropriate stroker pistons and connecting rods.

Detailed Vehicle Fitment & Application Notes

Primary Engine Code: Toyota 1GR-FE (4.0L V6)

Target Vehicles & Model Years: This crankshaft is designed for performance builds in the following platforms (non-exhaustive list):

• Toyota FJ Cruiser (2007-2014)
• Toyota 4Runner (2003-2009 with 1GR-FE)
• Toyota Tacoma (2005-2015 with 1GR-FE)
• Toyota Tundra (2005-2006 with 1GR-FE)
• Lexus GX 470 (2003-2009)
• Various aftermarket and racing applications utilizing the 1GR-FE block.

Critical Installation Consideration: The increased 103mm stroke necessitates the use of compatible stroker-specific pistons with a reduced compression height and appropriately clearanced connecting rods. It is not a direct bolt-in with factory pistons and rods. A complete engine blueprinting, including precise deck height measurement and piston-to-valve clearance checks, is mandatory for a successful build. Consultation with your engine machinist or builder is essential.

Technical Specifications

For builders deliberating on the material science behind such a critical component, understanding the advantages of billet versus forged crankshafts is paramount. A deeper technical dive into the subject can be found in this authoritative resource on crankshaft billet vs forged manufacturing processes.

Final Assembly Note: The BC5369 represents the pinnacle of 1GR-FE rotating assembly technology. Its installation signifies a commitment to a no-compromise build. Pair it with Brian Crower’s matched H-beam connecting rods and forged stroker pistons for a harmonically balanced, incredibly strong rotating assembly capable of supporting well over 800+ horsepower in a properly configured engine. This is the definitive upgrade for transforming a utilitarian V6 into a legendary powerplant.
