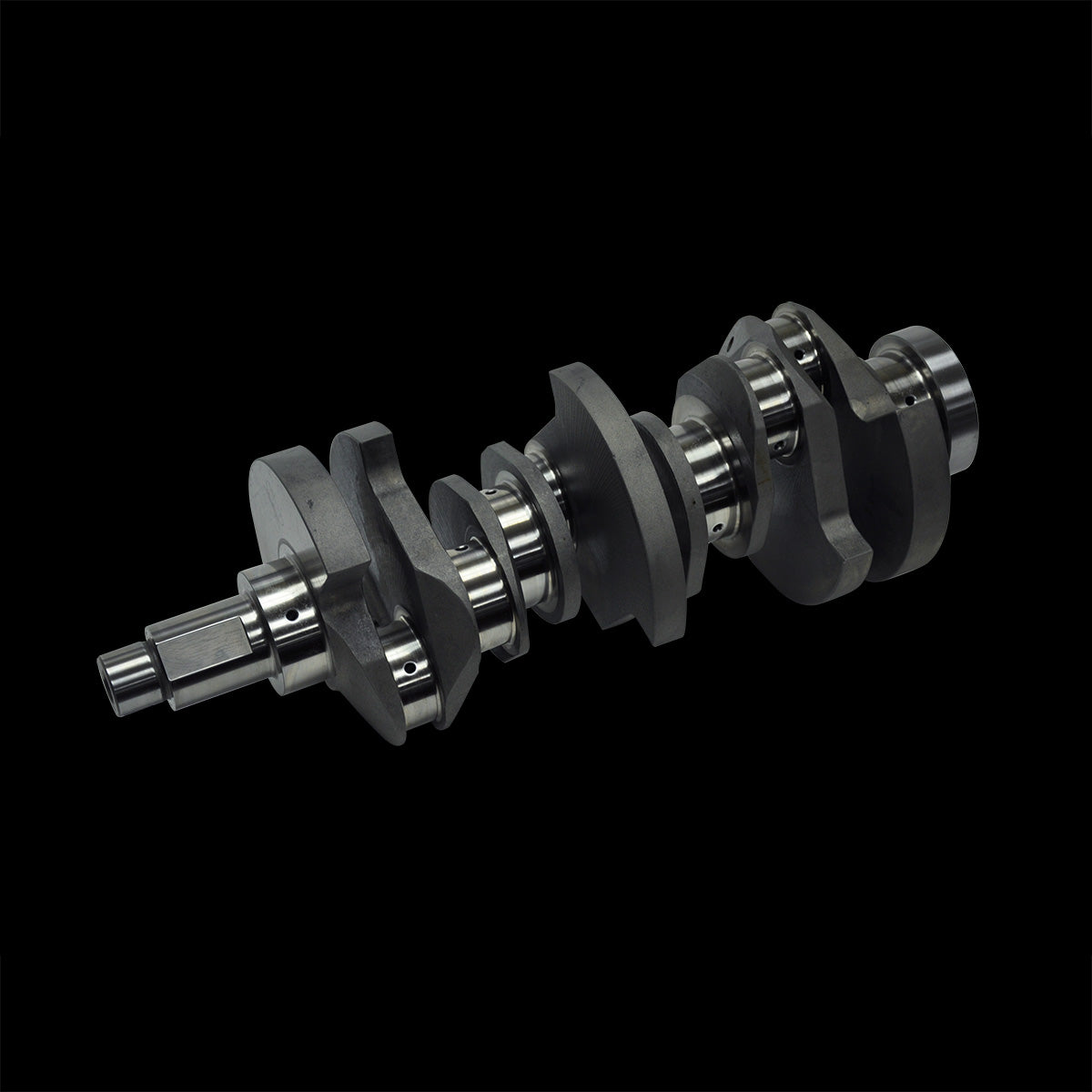

BC5509 – Hyundai G6DA V6 Crankshaft – 4340 Billet – 93mm Stroke, Fully Balanced

Introduction: Redefining the Rotating Assembly for the Hyundai G6DA V6

In the realm of forced induction and high-RPM horsepower, the factory rotating assembly often represents the single greatest point of failure. For tuners and builders of the Hyundai G6DA 2.7L V6 engine, the quest for reliable, stratospheric power levels necessitates a fundamental upgrade at its very core: the crankshaft. The BC5509 crankshaft from Brian Crower is not merely a replacement; it is a transformative component engineered from the ground up to unlock the latent potential of this versatile platform. Fabricated from premium 4340 chromoly billet steel and featuring a precisely configured 93mm stroke, this crankshaft is the definitive solution for builds demanding unwavering strength, perfect harmonic control, and optimized displacement. This technical analysis will dissect the engineering, application, and tangible benefits of installing this pinnacle component into your G6DA engine.

Material Science and Manufacturing: The 4340 Billet Advantage

The choice of material is the first and most critical differentiator between a stock-casting substitute and a true performance forging. The BC5509 is machined from a single, vacuum-degassed billet of SAE-AISI 4340 chromoly nickel steel. This alloy is renowned in aerospace and motorsport for its exceptional tensile strength, superior fatigue resistance, and optimal toughness. The billet process ensures a continuous, uniform grain flow that follows the intricate contours of the crank’s journals and counterweights, eliminating the potential for inclusions, porosity, or weak points inherent in cast or even standard forged units. Each BC5509 is then CNC-machined to exacting tolerances, undergoes rigorous thermal cycling (heat treatment), and is finished with a nitride or similar surface treatment. This creates an immensely hard, wear-resistant outer case while maintaining a ductile, shock-absorbing core—a combination essential for surviving the immense cylinder pressures and inertial forces generated in a high-output, turbocharged or supercharged G6DA application.

Precision Dynamics: The 93mm Stroke and Fully Balanced Assembly

Stroke length is a primary determinant of engine displacement and torque characteristics. The BC5509’s 93mm stroke is a key performance metric, often selected to achieve a target displacement when paired with oversized pistons (e.g., creating a 3.0L or larger configuration). More critically, every BC5509 crankshaft is fully balanced as a complete rotating assembly. Brian Crower does not perform a simple “bob-weight” balance; each unit is dynamically balanced to near-perfect harmony with specific companion components—typically Brian Crower’s own matched connecting rods and pistons. This process involves meticulous material removal from the counterweights to neutralize inertial forces. The result is a profound reduction in harmonic vibration, which is the primary destroyer of main and rod bearings, and a major contributor to crankshaft fatigue failure. A balanced assembly allows the engine to rev more freely, reduces parasitic power loss, and significantly enhances the longevity of the entire bottom end, enabling safe operation at sustained RPM levels far beyond the factory redline.

Technical Specifications & Dimensional Data

Direct Performance Benefits and Build Implications

Integrating the BC5509 crankshaft into a G6DA build is a strategic decision that pays dividends across the entire powerband and engine lifecycle. It is the cornerstone for any build aiming for reliable power in excess of 500-600+ horsepower.

• Unmatched Bottom-End Integrity: The 4340 billet construction provides a safety margin that virtually eliminates crankshaft failure as a concern, allowing you to push boost and ignition advance with confidence.
• Enhanced Engine Smoothness and Response: The fully balanced assembly quells destructive harmonics, leading to smoother operation, reduced bearing wear, and a more responsive throttle feel as the engine isn’t fighting internal vibration.
• Foundation for Increased Displacement: The 93mm stroke enables a significant increase in engine displacement when combined with a cylinder bore job, translating directly to higher torque output and improved volumetric efficiency.
• Extended RPM Capability: With superior strength and balance, the engine can safely sustain higher rotational speeds, allowing you to capitalize on aggressive camshaft profiles and turbocharger characteristics that make power at the top end.
• Optimized Oiling and Reliability: Precision-machined journals, often featuring undercut and micro-polished finishes, promote optimal oil film retention and reduce friction, critical for high-load bearing survival.

For a deeper understanding of the metallurgical advantages of 4340 steel in performance applications, consider reviewing this resource on alloy steel forgings and billet processes from a leading automotive technical publication.

Vehicle Fitment, Compatibility, and Installation Notes

Primary Vehicle Fitment: This BC5509 crankshaft is designed specifically for the Hyundai G6DA 2.7L DOHC V6 engine. This engine was found in a range of early-to-mid 2000s Hyundai and Kia vehicles, most notably:

Specific Model Applications

• Hyundai Sonata (VF, 1998-2001)
• Hyundai Grandeur/Azera (XG, 1998-2005)
• Kia Optima/Magentis/Lotze (MS, 2000-2005)
• Kia Enterprise (1999-2002)

Critical Compatibility Notice: This is a performance component, not a direct OEM replacement. Installation requires a complete engine teardown and rebuild by a qualified machinist and engine builder. You must pair this crankshaft with performance connecting rods and pistons designed for the specified 93mm stroke and intended final displacement. The block will likely need machining and honing. Furthermore, always verify that your intended combination (stroke, rod length, piston compression height) results in a safe piston-to-valve and piston-to-deck clearance, especially in these interference engines. It is strongly recommended to purchase the BC5509 as part of a matched rotating assembly kit from Brian Crower to guarantee perfect balance and compatibility.
