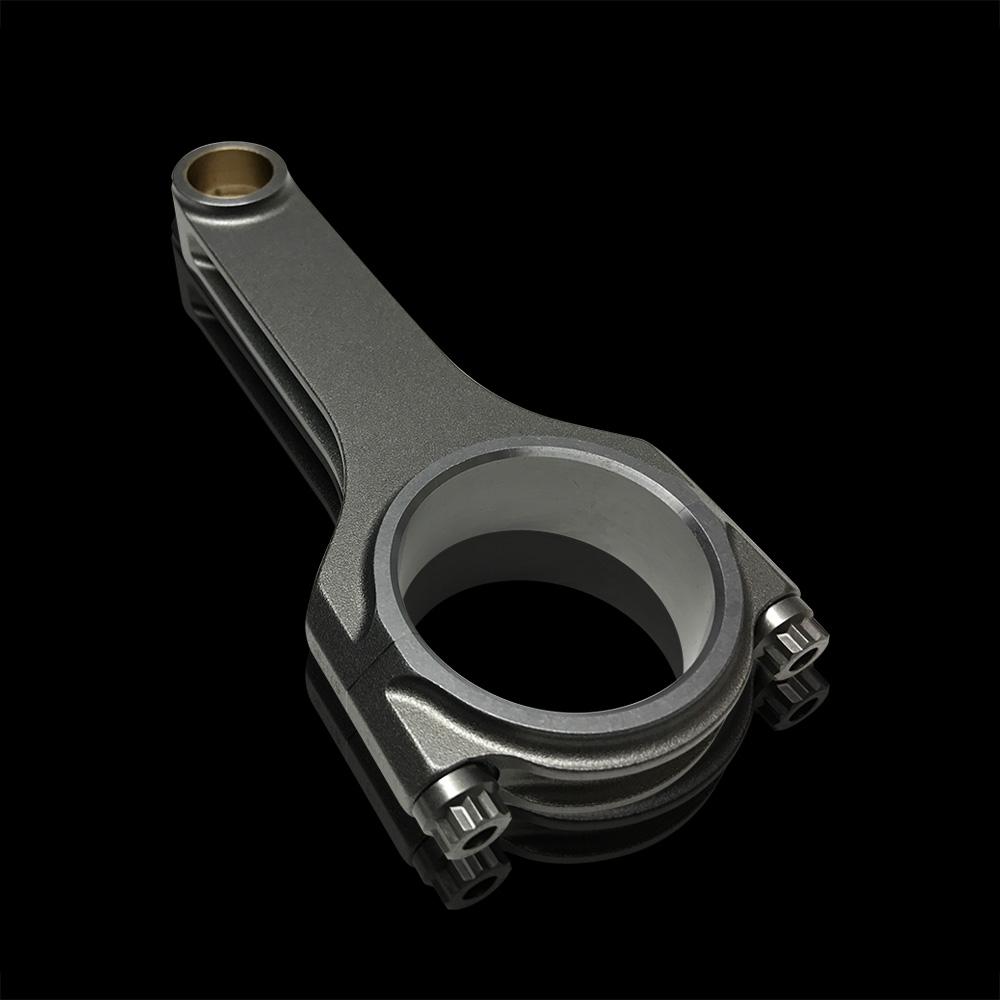

BC6040 – Honda/Acura – ProH2k Stroker w/ARP2000 Fasteners 5.512″ C-to-C w/B16A Journal

In the relentless pursuit of rotational mass reduction and ultimate tensile strength, the connecting rod stands as the unequivocal pivot point between piston velocity and crankshaft rotation. For the Honda/Acura B-series architect aiming to transcend OEM limitations, the Brian Crower BC6040 ProH2k Stroker Connecting Rod Set is not merely an upgrade—it is a fundamental re-engineering of the reciprocating assembly. Engineered for high-displacement stroker applications while maintaining the critical B16A rod journal diameter, these rods utilize a proprietary ProH2k (2000 series) vacuum-remelt alloy steel and are secured with legendary ARP2000 rod bolts. With a precise 5.512-inch center-to-center length, this set is the calculated solution for builders targeting elevated horsepower ceilings and sustained high-RPM reliability without compromising on the journal specifications of proven B-series crankshafts.

Engineering Analysis: The ProH2k & ARP2000 Advantage

The BC6040’s performance thesis is built upon a material science trifecta: strength, weight, and fatigue resistance. Off-the-shelf 4340 steel rods are insufficient for modern, high-output forced induction or aggressive nitrous applications where cylinder pressures can exceed 2,000 psi.

ProH2k Vacuum Remelt Alloy Steel Construction

Brian Crower’s ProH2k is a premium 2000-series steel alloy subjected to a Vacuum Arc Remelt (VAR) process. This meticulous procedure purges the molten steel of impurities and gaseous inclusions, resulting in a homogenous grain structure with superior integrity. The outcome is a connecting rod with an exceptional ultimate tensile strength exceeding 220,000 psi and a significantly elevated fatigue limit. This translates directly to a larger safety margin, allowing these rods to withstand the violent detonation events and extreme pressure spikes that would catastrophically fracture lesser components. The material’s inherent characteristics also allow for a optimized, weight-reduced I-beam design that minimizes reciprocating mass without sacrificing beam strength or introducing harmonic weaknesses.

ARP2000 Fastener System: The Gold Standard in Clamp Load

The rod is only as strong as its bolt. Brian Crower eliminates this potential failure point by including ARP2000 rod bolts as a standard fixture. These fasteners are manufactured from ASTM A193 B16 alloy steel, heat-treated to a rating of 200,000 psi, and then rolled-threaded after heat treatment to preserve the critical grain flow at the root of the thread—the most common point of failure. The clamping force provided by the ARP2000 system ensures the rod cap remains rigidly located under maximum load, preventing cap walk and fretting on the crank journal. This synergy between the ProH2k rod and ARP2000 fastener creates an assembly with unparalleled resilience for the high-stress environment of a stroked, high-RPM Honda engine.

• Unmatched Tensile Strength: ProH2k steel provides a >220,000 psi tensile strength for ultimate durability in high-boost and high-nitrous applications.
• Optimized Reciprocating Mass: Precision machining and material science yield a lighter, stronger rod for faster engine acceleration and reduced bearing load.
• Fatigue Resistance: The VAR process and shot-peened finish combat cyclic stress failures, ensuring longevity in race environments.
• Guaranteed Fastener Integrity: Pre-installed ARP2000 bolts deliver industry-leading clamp load and eliminate a critical assembly variable.
• Stroker-Specific Geometry: The 5.512″ C-to-C length is engineered for popular stroker cranks, optimizing piston pin height and compression ratios.
• B16A Journal Compatibility: Maintains the standard 1.771″ (45mm) big-end diameter for use with a wide array of B-series crankshafts without machining.

Technical Specifications & Vehicle Fitment

The BC6040 is a precision instrument, with dimensions tailored for the serious builder. The maintained B16A journal size is a strategic advantage, providing compatibility with a vast range of cranks while the extended length facilitates increased displacement.

Vehicle Fitment

Primary Application: This rod set is engineered for stroker engine assemblies using crankshafts with a B16A rod journal diameter (1.771″). They are a direct replacement for OEM rods in the engines listed below when used with a compatible stroker crank and appropriately specified pistons for the 5.512″ rod length. Always verify clearances during assembly.

Compatible Honda/Acura B-Series Engines (with appropriate stroker crankshaft):

• B16A, B16B, B17A, B18C (GSR), B18C5 (Type R)
• B18A1, B18B1 (Non-VTEC)
• B20B, B20Z (VTEC conversion required for head)

Common Stroker Combinations Enabled: The 5.512″ rod length is critical for builds utilizing popular stroker cranks (e.g., 90mm stroke) to achieve displacements like 2.0L, 2.1L, and 2.2L from B18 and B20 blocks, while allowing for a piston with a functional compression height and ring package. For an in-depth technical discussion on B-series stroker kinematics and rod ratio implications, reference this authoritative engineering resource on Engine Builder Magazine.

Installation Precision & Final Assembly Protocol

Installing the BC6040 rods is a procedure demanding micrometer-level precision. While they are a direct-fit for the B16A journal, final assembly is not a simple “bolt-in” process.

Critical Pre-Installation Steps:

1. Big End Resizing Check: Although supplied with ARP2000 fasteners torqued to spec, the big end bore must be professionally measured for correct size, roundness, and taper after the final torque sequence is applied. Do not assume “out-of-the-box” dimensions.
2. Bearing Clearance Verification: Plastigage or precision micrometers must be used to establish exact connecting rod bearing clearance, targeting 0.0018″ – 0.0022″ for most performance applications.
3. Torque Procedure: Follow ARP’s specified torque sequence and lubricant (typically ARP Ultra-Torque). The torque value is secondary to the bolt stretch; using a rod bolt stretch gauge is the only professional method to ensure proper clamp load.
4. Weight Matching: Each set is weight-matched by Brian Crower. However, for absolute perfection in a balanced assembly, having the entire rotating assembly (rods, pistons, pins, rings) balanced as a unit is non-negotiable for engine smoothness at RPM.

The Definitive Choice for the Discerning Builder

The Brian Crower BC6040 ProH2k Stroker Connecting Rod set represents the convergence of advanced metallurgy, precision manufacturing, and practical application geometry. It delivers the robust, fatigue-resistant foundation required to harness the power potential of a modern stroked B-series build, whether destined for a 10,000 RPM all-motor track weapon or a 800+ horsepower turbocharged drag projectile. By specifying the B16A journal, Brian Crower provides unparalleled flexibility, allowing builders to select from a wide market of crankshafts. When your engineering parameters demand a rod that treats extreme cylinder pressure as a design constraint rather than a failure point, the BC6040 is the unequivocal technical solution.
