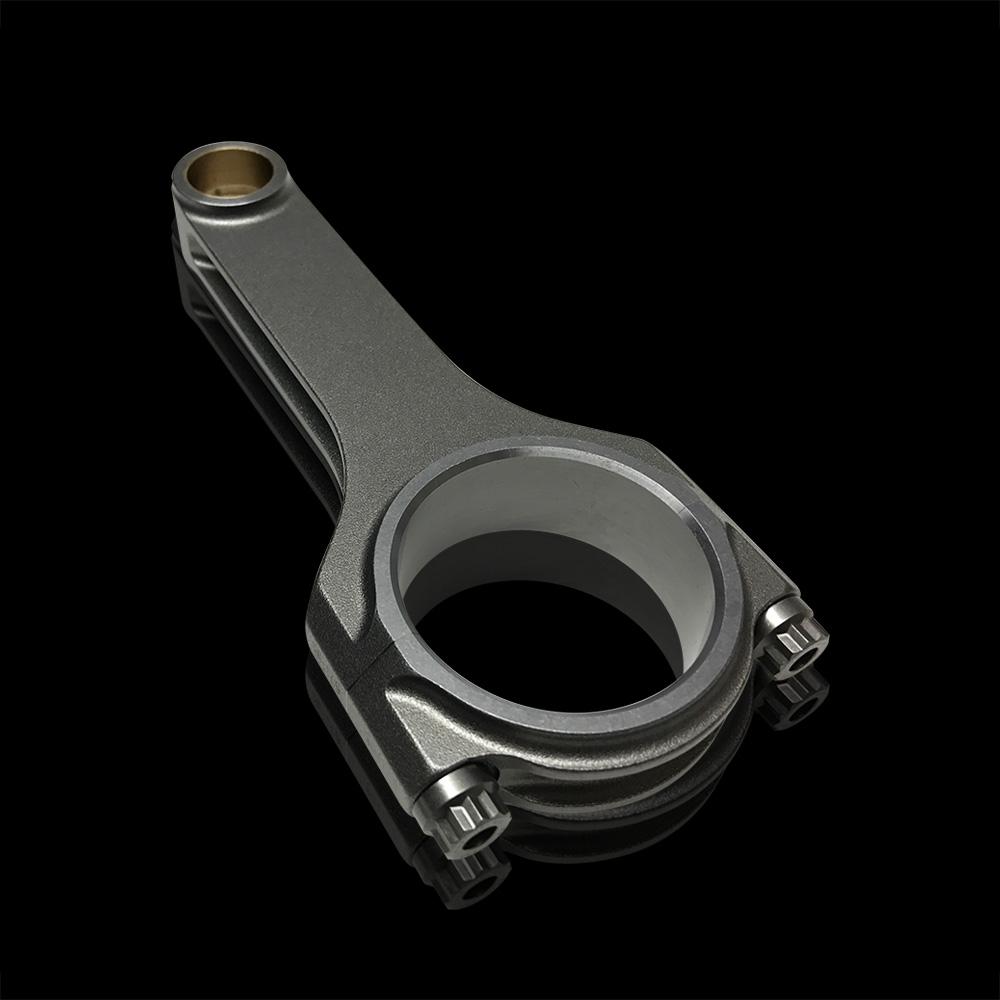

BC6105 – Mitsubishi 4G63 (1Gen/6 Bolt) ProH2K Connecting Rods w/ARP2000 Fasteners

For the builder demanding unflinching reliability and precision from a 4G63 powerplant, the choice of connecting rods is non-negotiable. The Brian Crower BC6105 ProH2K Connecting Rod set represents the definitive upgrade for the first-generation, 6-bolt 4G63 engine, transitioning a critical rotating assembly component from a potential point of failure to a cornerstone of bulletproof performance. Engineered for high-horsepower, high-RPM applications—from aggressive street builds to all-out competition engines—these rods are manufactured to exacting standards, utilizing premium H11 tool steel and secured with industry-renowned ARP 2000 fasteners. This is not merely a replacement part; it is a fundamental re-engineering of the engine’s structural integrity, designed to harness the immense cylinder pressures and inertial forces generated by turbocharged power. When your build strategy involves significant boost, increased displacement, or sustained high revs, the BC6105 rods provide the essential margin of safety and durability that separates a successful build from a catastrophic failure.

Engineering Superiority and Core Benefits

The ProH2K series is defined by its material composition and machining precision. Manufactured from vacuum-melted, heat-treated H11 tool steel, these rods offer an exceptional balance of tensile strength and fatigue resistance, far surpassing the capabilities of powdered metal OEM rods or even many 4340 steel alternatives. H11’s inherent toughness makes it ideal for the shock-loading environment inside a performance engine. Every rod is CNC-machined to exacting tolerances, ensuring perfect balance and consistent beam weight, which is critical for smooth engine operation and reducing harmonic vibrations at elevated RPM. The inclusion of ARP 2000 rod bolts is a critical performance decision; these fasteners are the benchmark for clamp load integrity, providing superior resistance to stretching under load compared to standard hardware, which directly translates to maintained bearing clearance and rod alignment under extreme conditions.

• Unmatched Durability: H11 tool steel construction provides superior fatigue life and impact resistance for boosted and high-RPM applications, effectively eliminating rod failure as a concern in properly tuned engines.
• Precision Engineered Balance: CNC machining to strict tolerances ensures each rod in the set is virtually identical in weight and dimensions, promoting smoother engine operation and reducing destructive harmonics.
• Fastener Confidence: The inclusion of ARP 2000 rod bolts guarantees exceptional clamp load retention, critical for maintaining bearing crush and preventing catastrophic cap walk under extreme cylinder pressure.
• Optimized Design: The rod beam profile and machining are designed for strength and oil clearance, while the use of a ¾-inch ARP 2000 bolt provides a significant upgrade in shear and tensile strength over the factory fastener.
• Direct, No-Hassle Fitment: Designed as a direct replacement for the OE 6-bolt rods, requiring no clearancing or block modifications for standard stroke applications, simplifying the build process.

Material Science and Construction Details

The selection of H11 (AISI 4130) tool steel is a deliberate choice for the most demanding environments. This alloy, when properly heat-treated using Brian Crower’s proprietary process, achieves a robust hardness rating typically in the 34-36 HRC range. This specific hardness provides the optimal compromise between ultimate tensile strength—resisting pulling apart—and the necessary ductility to absorb detonation events without exhibiting brittle fracture. The rods are shot-peened after machining, a process that bombards the surface with small media to induce compressive stresses, dramatically improving fatigue resistance by helping to prevent crack initiation at the microscopic level. Furthermore, the beams are magnafluxed, a non-destructive testing method that reveals any surface or subsurface flaws before the part ever leaves the factory, ensuring zero defect delivery.

Critical Role of ARP 2000 Fasteners

The rod is only as strong as its weakest point, which is often the fastener. The integrated ARP 2000 bolts are a cornerstone of this package’s reliability. Manufactured from a proprietary 8740 chrome molybdenum steel alloy and heat-treated to ARP’s rigorous standards, these bolts exhibit an exceptionally high clamp load with minimal elongation. This characteristic is vital because as cylinder pressure attempts to separate the rod cap from the beam, the bolt must not stretch beyond its elastic limit. The 2000-series fasteners are renowned for their resistance to stress relaxation and fatigue, ensuring the rod bearings remain properly secured through countless high-load cycles. For a detailed analysis of fastener technology in high-performance engines, refer to this technical discussion on clamp load fundamentals.

Vehicle Fitment and Application Specifications

The BC6105 is engineered specifically for the foundational Mitsubishi 4G63 engine platform. Correct identification of your engine is paramount for compatibility.

Primary Fitment: Mitsubishi 4G63 6-Bolt Engine (First Generation). This includes engines found in:

• 1990-1992 Mitsubishi Eclipse GSX (6-bolt)
• 1990-1992 Eagle Talon TSi (6-bolt)
• 1990-1992 Plymouth Laser RS Turbo (6-bolt)
• Various early 1990s Mitsubishi Galant VR-4 and other JDM applications with the 6-bolt 4G63.

Critical Identification: The “6-bolt” designation refers to the number of bolts securing the flywheel/flexplate to the crankshaft. This is the key differentiator from the later 7-bolt engines, for which this rod set is NOT compatible. Always verify your engine’s configuration before purchase.

Application: Designed for high-performance street, strip, road race, and rally applications. Ideal for engines targeting power levels from 500 to beyond 800+ horsepower, depending on supporting mods and tuning. Suitable for use with both standard and most stroker crankshaft configurations (verification of clearance for specific stroker kits is always recommended).

Technical Specifications Table

In conclusion, the Brian Crower BC6105 ProH2K Connecting Rod set is the product of targeted, performance-driven engineering. It addresses the specific limitations of the factory 4G63 rotating assembly with superior materials, precision manufacturing, and top-tier fastening hardware. For the builder who views reliability as the ultimate performance metric, this component is an essential investment. It transforms the engine’s lower end from a calculated risk into a known quantity, allowing you to focus on tuning for power with the confidence that the foundation is engineered to withstand it. When building a 6-bolt 4G63 for serious duty, specifying the BC6105 rods is a decision that aligns with a commitment to excellence and longevity.
