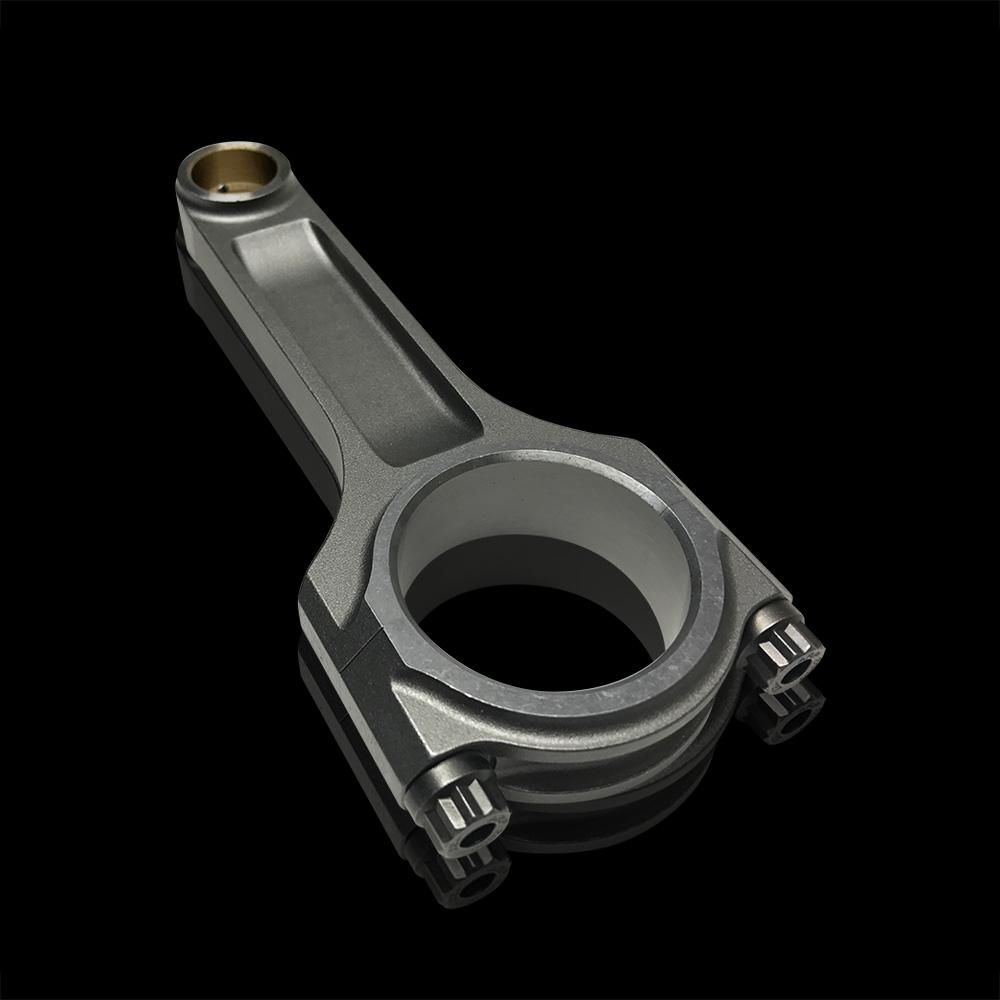

BC6357 – Toyota 1FZFE – ProHD I-Beam Connecting Rods w/ARP2000 7/16″ Fasteners

In the stratified realm of high-performance engine building, the connecting rod is the unequivocal linchpin between rotational force and linear power. For the legendary Toyota 1FZ-FE engine—a powerhouse revered in Land Cruisers, LX450s, and performance applications for its immense torque and robustness—the factory connecting rods represent a critical ceiling. The BC6357 ProHD I-Beam Connecting Rod set from Brian Crower is engineered to shatter that ceiling. This is not merely an upgrade; it is a fundamental re-engineering of the rotating assembly’s backbone, featuring a forged 4340 chromoly steel I-beam design and secured with world-renowned ARP2000 7/16″ fasteners. Designed for the engine builder who demands absolute integrity under boost, high RPM, and extreme cylinder pressure, these rods transform the 1FZFE from a reliable workhorse into a precision, race-proven bullet.

Material Science and Forging: The Foundation of Unyielding Strength

The pivotal advantage of the BC6357 rod set begins at the atomic level. Unlike factory-style powdered metal or lower-grade steel rods, these ProHD components are machined from a premium vacuum-degassed 4340 chromoly steel billet. This alloy is synonymous with high-stress applications in aerospace and motorsport due to its exceptional fatigue life and ultimate tensile strength. The manufacturing process is critical: each rod is CNC machined to a true I-beam profile, a design that optimally balances material placement for maximum stiffness with minimal weight. The I-beam shape provides superior resistance to column buckling and torsional flex compared to H-beam designs under the specific loading conditions of a long-stroke engine like the 1FZFE. This forging and machining protocol ensures a homogeneous grain structure flow, eliminating potential weak points and creating a component that can reliably withstand the repeated, brutal stresses of high-horsepower operation.

Precision Engineering and Critical Specifications

Performance is built on precision. Every BC6357 connecting rod undergoes a battery of CNC machining operations and rigorous quality checks to guarantee dimensional perfection and consistency across the set.

Machining Tolerances and Surface Finish

The big end and small end bores are honed to a precision finish with tolerances measured in ten-thousandths of an inch, ensuring perfect bearing fitment and oil film stability. The small end is furnished with a bronze bushing for use with floating piston pins, a necessity for high-RPM and high-power applications as it distributes load evenly and reduces galling. All stress-critical areas, including the beam and bolt-joint radii, are finished with a shot-peened surface. This process induces compressive stresses in the metal’s surface layer, dramatically improving fatigue resistance and combating the initiation of micro-cracks—the primary failure mode of connecting rods.

ARP2000 Fasteners: The Gold Standard in Joint Integrity

The most meticulously forged rod is only as strong as its weakest point: the cap joint. Brian Crower eliminates this variable by equipping the BC6357 set with genuine ARP2000 7/16″ rod bolts. ARP2000 is a proprietary, strain-hardened alloy steel fastener subjected to a unique thermal cycling process. It achieves an unparalleled clamp load while maintaining ductility, a combination that prevents bolt stretch and cap walk under extreme conditions. These fasteners are rated for significantly higher loads than standard 8740 chromoly bolts and are the industry benchmark for serious performance and racing applications. Their inclusion underscores that this rod set is built for professionals, where margin of safety is paramount. For a deeper understanding of fastener technology in performance engines, consider this resource on understanding ARP fastener materials and processes.

Performance Benefits and Application Scope

Integrating the BC6357 ProHD rods into your 1FZFE build delivers transformative benefits across the entire powerband and engine longevity spectrum.

• Extreme Power Capacity: Designed to reliably support horsepower levels well in excess of 800+ HP, making them ideal for forced induction (turbo/supercharger) and nitrous oxide applications.
• Enhanced High-RPM Stability: The reduced mass and optimized stiffness minimize reciprocating weight, reducing stress on the crankshaft and allowing the engine to rev more freely and safely beyond factory limits.
• Unmatched Durability: The combination of 4340 chromoly, precision machining, shot peening, and ARP2000 fasteners provides a fatigue life multiple times greater than OEM rods, essential for endurance racing or high-mileage performance vehicles.
• Improved Bearing and Ring Seal: By virtually eliminating flex, these rods maintain more consistent piston alignment in the bore. This promotes optimal ring seal for maximum cylinder pressure and protects bearing surfaces from abnormal wear.
• Peace of Mind: The single most significant upgrade for preventing catastrophic engine failure in a built 1FZFE. They are the insurance policy for your investment in pistons, crankshaft, and cylinder head work.

Vehicle Fitment and Technical Specifications

Vehicle Fitment

The BC6357 ProHD Connecting Rod set is engineered as a direct-fit, performance replacement for the following applications. Professional engine assembly, including precise measuring of bore centers, piston pin fitment, and bearing clearances, is absolutely required.

• Toyota Land Cruiser (FZJ80, HDJ80) – 1993-1997 (with 1FZ-FE engine)
• Lexus LX450 – 1996-1997
• Toyota 1FZ-FE Engine – All years and applications, including industrial.
• Note: Compatible with standard stroke (95.0mm) crankshafts. Not designed for use with stroker crankshafts without specific verification.

Technical Specifications Table

Conclusion: The Brian Crower BC6357 ProHD I-Beam Connecting Rod set represents the definitive solution for anyone serious about building a high-performance, ultra-reliable Toyota 1FZFE engine. It transcends the concept of a “stronger part” by delivering a harmonized system of advanced metallurgy, obsessive precision, and proven fastener technology. Whether your goal is a turbocharged monster, a high-revving naturally aspirated build, or simply the most durable overlanding engine conceivable, these rods provide the foundational strength to realize that vision with confidence. This is engineering with zero compromise, built for those who understand that in the heart of a powerful engine, there is no room for weakness.
