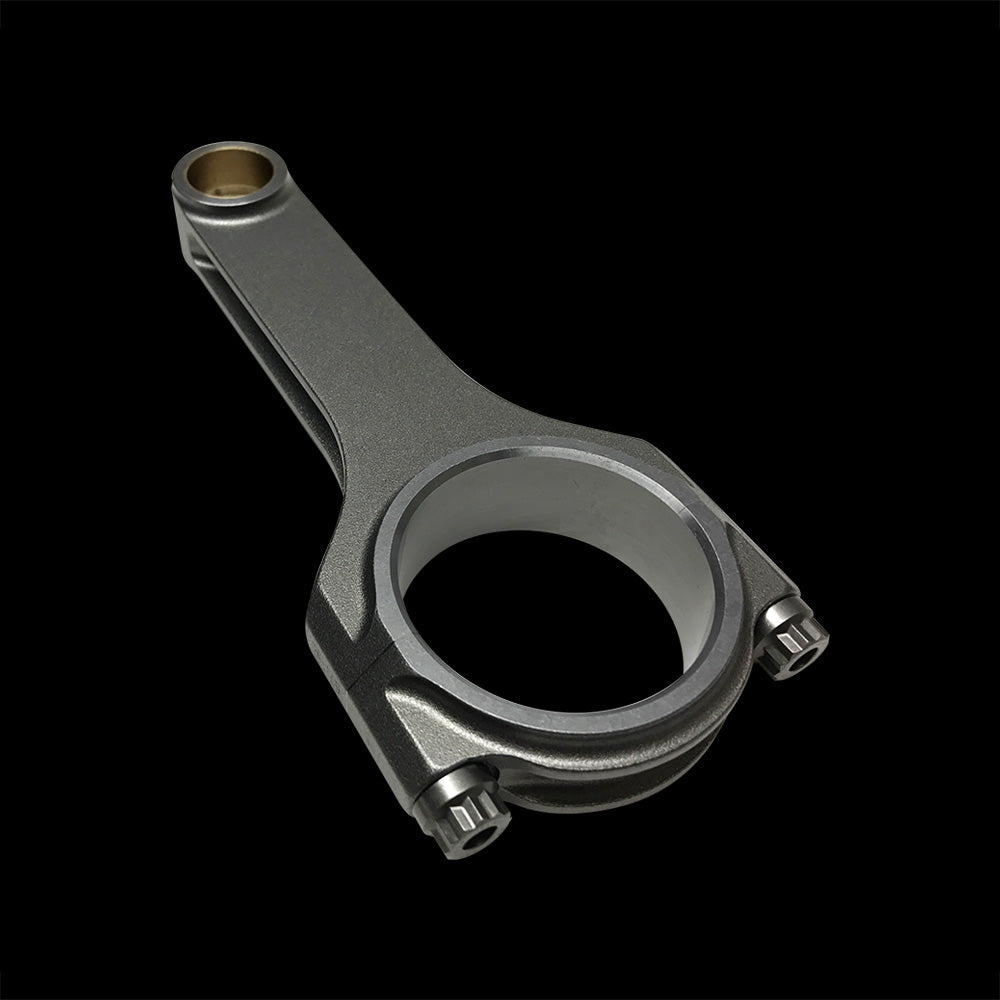

BC6407 – Mazda BP – ProH2K Connecting Rods w/ARP 2000 Fasteners

In the pursuit of relentless power and bulletproof reliability, the connecting rod stands as the most critical pivot point between rotational force and linear motion. For the Mazda BP engine—the heart of the iconic Miata MX-5 and the foundation of countless forced-induction builds—the stock rods represent the definitive ceiling. The BC6407 ProH2K Connecting Rod set, equipped with ARP 2000 fasteners from Brian Crower, is engineered to shatter that ceiling. This isn’t an upgrade; it’s a fundamental re-engineering of the engine’s reciprocating assembly for professional-level competition and extreme street performance. Manufactured from premium 4340 chromoly steel using a proprietary H-beaming process and finished to aerospace tolerances, these rods transform the BP’s high-revving character into an indomitable force, capable of withstanding the tremendous cylinder pressures generated by modern turbocharger systems. For the builder who understands that horsepower is nothing without integrity, the BC6407 is the non-negotiable core component.

Engineering Analysis: The ProH2K & ARP 2000 Synergy

The BC6407’s performance is a result of synergistic engineering between the rod body and its fastener system. Merely swapping a forged rod with a stock-style bolt is a critical failure point. Brian Crower addresses this by including ARP 2000 rod bolts as a standard, integrated component, ensuring a unified strength profile from the start.

Material Science and Construction: 4340 Chromoly H-Beam

Selected for its optimal balance of tensile strength, fatigue resistance, and weight, 4340 chromoly steel is the industry benchmark for performance connecting rods. The ProH2K rods begin as a premium-grade 4340 billet, not a casting or a powdered metal forging. This billet is then precision forged under extreme pressure to align the grain structure, followed by CNC machining to final dimensions. The distinctive H-beam design isn’t merely for aesthetics; it provides the optimal stiffness-to-weight ratio. The wide, flat beams maximize resistance to column buckling (the tendency of the rod to bend under compression) while the centralized rib adds torsional rigidity, preventing twist during the rapid load reversal from compression to tension at high RPM. Each rod is shot-peened—bombarded with small media to induce compressive stresses on the surface—dramatically increasing its fatigue life by helping to prevent crack initiation.

The Fastener Foundation: ARP 2000 Rod Bolts

The rod bolt is the single highest-stress fastener in any engine. The inclusion of American Racing Products’ 2000-series fasteners elevates the entire assembly. Made from a proprietary 8740 chromoly steel alloy, ARP 2000 bolts are heat-treated using a cryogenic process to achieve a nominal tensile strength of 220,000 psi. This process ensures a consistent, fine-grained microstructure throughout the bolt, eliminating potential weak points. Crucially, these bolts are designed for precise clamp load retention. During the combustion event, the rod cap tries to separate from the rod body; only the clamp force of the bolts holds it together. ARP’s precision-rolled threads and undercut design provide a superior fatigue life over cut threads, maintaining this clamp load through thousands of high-stress cycles. Proper installation with the correct lubricant and torque-plus-angle procedure is paramount, a process well-documented in technical resources such as Engine Labs’ analysis of connecting rod bolt selection and installation.

Definitive Advantages of the BC6407 ProH2K Rod Set

• Unmatched Strength & Durability: The 4340 chromoly H-beam construction, combined with shot peening, provides a fatigue limit and ultimate tensile strength far exceeding OEM or generic “forged” rods, enabling reliable power levels in excess of 500+ horsepower in turbocharged BP applications.
• Precision ARP 2000 Fastener Integration: Eliminates the weak link. The included high-tensile bolts ensure the rod cap stays precisely located, maintaining bearing crush and oil clearance under extreme loads, a common failure point in assemblies using inferior bolts.
• Optimized Weight Matching: Each set is weight-matched to within 1 gram, a critical step for achieving smooth engine balance at elevated RPM, reducing destructive harmonic vibrations, and allowing the engine to rev freely and reliably.
• Professional-Grade Machining Tolerances: CNC-machined to exacting specifications for big end roundness, pin bore diameter, and center-to-center distance. This ensures perfect bearing fitment, proper piston deck height, and consistent compression across all cylinders.
• Direct OEM Replacement Fitment: Designed as a true drop-in component for the Mazda BP engine. They utilize the standard crank journal and piston pin diameters, requiring no expensive machining of the crankshaft or pistons for installation, only a professional blueprint assembly.

Vehicle Fitment & Application Guidelines

The BC6407 ProH2K Connecting Rods are engineered specifically for the Mazda BP series of engines. Their primary application is in forced-induction or high-RPM naturally aspirated builds where the factory connecting rods are the proven point of failure.

Primary Fitment:

• Mazda Miata MX-5 (NA & NB generations): All 1.8L BP-4W and BP-Z3 engines (1994-2005). This is the quintessential application for track, drift, and high-performance street builds.
• Mazda BP-T Turbocharged Engines: As found in the 1990-1994 Mazda 323 GTX and the GT-R homologation models. Essential for restoring or upgrading these legendary turbocharged powerplants.
• Mazda Protegé/323/ Familia with BP Engines: Various global markets received the 1.8L BP in front-wheel-drive applications. The BC6407 is fully compatible.
• Mazda Kia Sephia/ Spectra: Models equipped with the licensed BP engine.

Build Considerations:

While a drop-in component, installation must be performed by a qualified machinist or engine builder. Critical steps include measuring and possibly resizing the big end bore for perfect roundness with the ARP bolts torqued, checking piston pin fit, and verifying overall assembly balance. These rods are mandatory for any BP build targeting sustained operation above 250-300 wheel horsepower or aggressive, sustained high-RPM use, as famously documented in Miata Turbo community build threads.

Technical Specifications: BC6407 ProH2K Connecting Rods

Final Build Recommendation

The Brian Crower BC6407 ProH2K Connecting Rod set with ARP 2000 fasteners represents the definitive solution for engineers and enthusiasts pushing the Mazda BP platform beyond its factory limitations. Its value is not measured solely in peak horsepower figures, but in the profound margin of safety and repeatable performance it introduces to the engine’s core. When paired with quality forged pistons, a balanced crankshaft, and a meticulous assembly process, this component forms the foundation of an engine that doesn’t just make power—it endures it. For any serious BP performance project, from time-attack Miatas to restored GT-X legends, specifying the BC6407 is the first and most critical decision in ensuring the integrity of the entire build.
