BC6410: Brian Crower ProH2K Connecting Rods for Ford 2.0L EcoBoost

In the pursuit of extreme forced-induction performance and absolute bottom-end integrity for the Ford 2.0L EcoBoost engine, the connecting rod is the critical linchpin. Standard powdered metal rods, while cost-effective for production, represent the primary failure point under elevated cylinder pressures. The Brian Crower BC6410 ProH2K Connecting Rod Kit is engineered to obliterate this limitation. This isn’t merely an upgrade; it’s a foundational re-engineering of the rotating assembly using aerospace-grade 4340 chromoly steel, subjected to the proprietary ProH2K treatment, and secured with legendary ARP 2000 fasteners. For tuners, builders, and engineers targeting reliable power levels beyond 550+ wheel horsepower, this set is the non-negotiable standard for converting turbocharger boost and high-RPM ambition into durable, repeatable performance.

Core Engineering & H-Beam Architecture Analysis

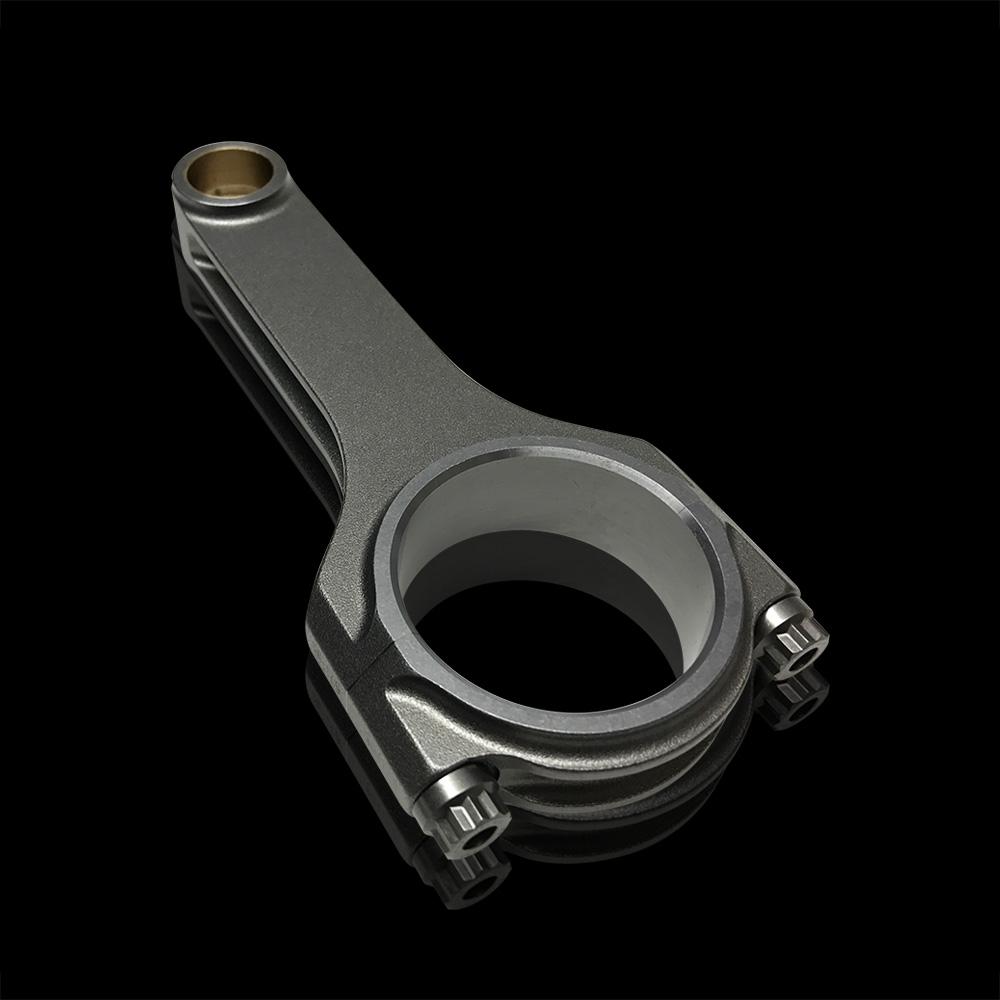

The BC6410 rod employs a precision-forged H-beam design, the undisputed champion for high-horsepower, high-RPM turbocharged applications. This design is characterized by a wide, H-shaped central beam that provides an optimal balance of minimal weight and maximum strength. The geometry directs stress through the beam’s center, creating a tremendously rigid structure that resists the buckling and bending forces endemic to high-cylinder-pressure engines. Unlike competitive I-beam rods which prioritize ultimate tensile strength in a narrow plane, the H-beam’s design offers superior multi-directional stiffness, crucial for handling the violent, off-axis loads produced by high-boost, high-torque scenarios common in modern EcoBoost tuning. Every rod is machined from a single billet of premium 4340 chromoly steel, ensuring a continuous grain flow that follows the rod’s contours, dramatically increasing fatigue life over cast or sintered alternatives.

Material Science: 4340 Chromoly & The ProH2K Advantage

The selection of SAE 4340 chromoly steel is the first pillar of this rod’s dominance. This nickel-chromium-molybdenum alloy is revered for its exceptional strength-to-weight ratio, high fatigue endurance limit, and superb fracture toughness. However, Brian Crower’s ProH2K process elevates the material to another tier. ProH2K is a proprietary thermal cycling treatment that goes beyond standard heat treating. It meticulously refines the steel’s molecular structure, relieving internal stresses and creating a more uniform, stable grain boundary. This results in a component with increased ductility and impact resistance without sacrificing an iota of ultimate tensile strength. In practical terms, ProH2K-treated rods are less prone to the micro-cracking and stress risers that can lead to catastrophic failure, offering a significant safety margin in unpredictable detonation events. You can delve deeper into the science of premium rod treatments in this authoritative technical article on performance connecting rods.

Key Performance Benefits & Specifications

Integrating the BC6410 rods transforms the short-block from a potential liability into a cornerstone of power. The benefits are systematic and quantifiable.

• Unmatched Tensile Strength: Manufactured to withstand over 6,500 kg of tensile load, far exceeding the demands of 550+ WHP builds.
• ProH2K Fatigue Resistance: The proprietary treatment exponentially increases cycle life, ensuring reliability through countless high-RPM, high-load passes.
• Precision Weight Matching: Each rod set is weight-matched to within a 2-gram tolerance, drastically reducing rotating mass imbalance for smoother operation and less harmonic vibration.
• Optimized Beam Profile: The H-beam is contoured for optimal clearance within the Ford 2.0L EcoBoost block, preventing oiling issues and ensuring compatibility with high-lift stroker crankshafts.
• ARP2000 Fastener Inclusion: Includes the industry-standard ARP 2000 rod bolts, rated at 220,000 PSI, for consistent, accurate clamping force and supreme resistance to stretch under load.
• Direct OEM Replacement: Features precision-bored small and big ends with OEM-spec bearings, allowing for a drop-in installation with proper clearancing checks.

Vehicle Fitment & Application Guidelines

The BC6410 kit is engineered as a direct, precision-fit component for a specific range of high-performance Ford EcoBoost applications. Correct fitment is paramount for achieving the intended performance and reliability outcome.

Primary Vehicle Fitment:

• Ford Focus ST (2013-2018) – 2.0L EcoBoost
• Ford Fusion (2013-2019) – 2.0L EcoBoost
• Ford Escape (2013-2019) – 2.0L EcoBoost
• Ford Edge (2015-2019) – 2.0L EcoBoost
• Lincoln MKZ (2013-2020) – 2.0L EcoBoost
• Lincoln MKC (2015-2019) – 2.0L EcoBoost

Critical Installation Note: While these rods are a direct dimensional replacement, professional installation by a qualified engine machinist and builder is mandatory. This includes measuring and verifying all critical clearances—big end bore diameter, side clearance, and wrist pin fit—to exacting tolerances. The use of ARP Ultra-Torque fastener assembly lube on the rod bolts is required to achieve the correct clamp load. Failure to follow proper blueprinting procedures will void any warranty and compromise the integrity of the assembly.

Technical Specifications Table

The Brian Crower BC6410 ProH2K Connecting Rod set represents the definitive solution for the serious Ford 2.0L EcoBoost builder. It synthesizes advanced metallurgy, proprietary thermal processing, and elite fastener technology into a single, mission-critical package. By eliminating the stock rod as the weak link, this component allows the turbocharger, fuel system, and tuning software to operate at their full, aggressive potential, securing the engine’s bottom end against failure. When your build parameters exceed the realm of factory engineering, specifying the BC6410 is not an option—it is the fundamental requirement for achieving formidable, reliable power.
