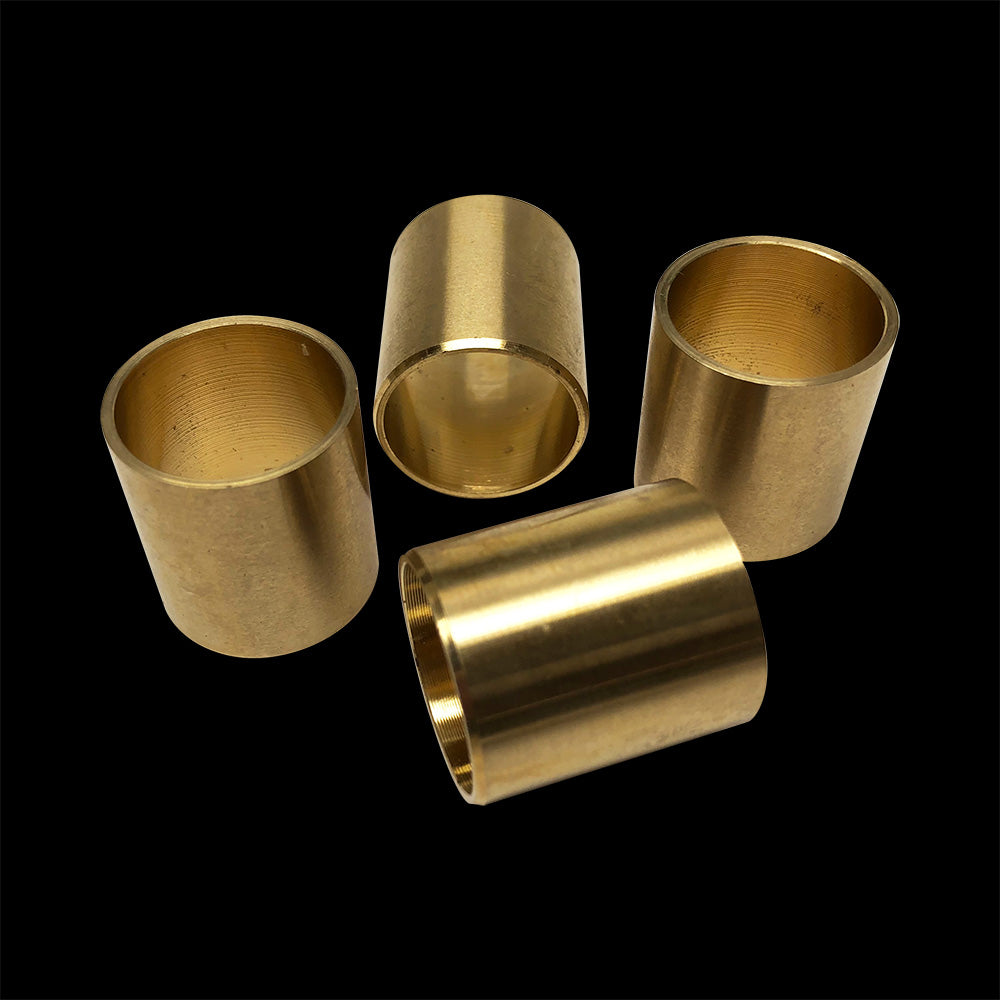

BC8702 Connecting Rod Bushing: The Definitive Upgrade for Precision Engine Building

In the uncompromising world of performance engine assembly, the integrity of the rotating assembly is paramount. Every component, from the crankshaft to the piston pin, operates within a tightly controlled ecosystem of tolerances and forces. At the critical juncture where the connecting rod meets the piston pin sits a component often overlooked yet fundamentally vital: the piston pin bushing. The BC8702 Connecting Rod Bushing from Brian Crower represents the apex of this technology. This is not a mere replacement part; it is a precision-engineered upgrade designed for builders who understand that ultimate reliability and power are built on a foundation of meticulous component selection. Machined to a nominal .866″ (22mm) diameter, this single-unit bushing is the definitive solution for high-stress, high-RPM applications where standard bushings are a calculated risk.

Material Science & Construction: The Aluminum Bronze Advantage

The core of the BC8702’s superiority lies in its material composition. Brian Crower utilizes a proprietary aluminum bronze alloy, a material whose properties are specifically curated for bearing and bushing applications. This is a deliberate departure from common phosphor bronze or softer copper alloys. Aluminum bronze offers a unique combination of high strength, excellent wear resistance, and superior fatigue properties. Its inherent lubricity reduces the risk of galling or seizing with the hardened steel piston pin, a critical failure mode in high-performance engines. Furthermore, this alloy maintains its structural integrity under extreme thermal cycling, resisting deformation that can lead to lost clearance and catastrophic contact. The bushing is precision-machined, honed, and finished to a micro-surface that promotes optimal oil film retention, ensuring consistent lubrication across the entire pin bore throughout the engine’s operational range.

Unmatched Benefits of the BC8702 Bushing

• Superior Fatigue & Wear Resistance: The aluminum bronze construction withstands the relentless cyclic loading of high-RPM operation far better than OEM-spec materials, dramatically extending service life.
• Optimal Bearing Surface & Lubricity: The engineered surface finish and material properties create an ideal bearing interface for the piston pin, reducing friction and parasitic power loss.
• Enhanced Thermal Stability: Maintains precise clearance under extreme operating temperatures, preventing pinch points or excessive play that can lead to piston slap or failure.
• Direct OEM+ Replacement: Designed as a direct-fit upgrade for rods requiring a 22mm (.866″) pin bore, offering a significant durability increase without custom machining in most cases.
• Foundation for Precision Clearancing: Provides a consistent, high-quality base material for engine builders to set exact piston pin-to-bushing clearances, a critical step in race engine assembly.

Dimensional Precision & Application

Precision is not an aspiration; it is a delivered specification. The BC8702 is machined to a nominal inner diameter (ID) of .8660 inches (22.00mm). This dimension is the starting point for the final honing process performed by the engine builder to achieve the specific clearance required for their application, fuel, and piston pin coating. Typical target clearances for performance engines range from .0008″ to .0015″, depending on the alloy of the pin and anticipated thermal loads. The outer diameter (OD) is precision-sized to create a proper interference fit within the connecting rod’s small end, ensuring zero rotation or movement under load—a condition that would instantly destroy both the rod and the bushing. This bushing is supplied as one (1) unit, allowing builders to purchase the exact quantity needed for their project, whether it’s a single-cylinder build or a complete V8 assembly.

Vehicle Fitment & Compatibility Guide

Disclaimer: Ultimate fitment is the responsibility of the engine builder. This bushing is designed for connecting rods with a nominal 22mm (.866″) piston pin bore. Verification of both rod bore size and the required press-fit interference is mandatory prior to installation. It is commonly used in:

• Performance Honda / Acura Applications: B-Series (B16A, B18C), K-Series (K20A, K24A) engines using aftermarket rods or for rebuilding OEM rods.
• Nissan / Infiniti SR20DET, KA24DE builds utilizing aftermarket H-beam or I-beam connecting rods.
• Subaru EJ257 / FA20DIT performance builds with upgraded connecting rods.
• General Performance Use: Any application where the connecting rod manufacturer specifies a 22mm ID bushing. This includes many popular aftermarket rods from brands like Eagle, Manley, and Scat for various GM LS, Ford Modular, and Chrysler Hemi platforms when configured for a 22mm pin.
• Critical Note: Always confirm the bushing’s outer diameter matches the connecting rod’s bore. Professional installation with proper tooling (arbor press, precision measuring equipment, and a hone) is required. For a deep dive on the critical importance of bearing and bushing clearances, refer to this authoritative resource on engine assembly fundamentals at Engine Builder Magazine.

Technical Specifications

The Final Verdict for Discerning Builders

The Brian Crower BC8702 Connecting Rod Bushing eliminates a key point of potential weakness in the high-performance rotating assembly. By specifying an aluminum bronze alloy and holding exacting dimensional tolerances, it provides engine builders with a component that matches the quality of the rods, pistons, and pins it interacts with. Its role is simple: to provide a durable, stable, and low-friction bearing surface for the piston pin under all conditions. For any build where RPM limits are pushed, boost or nitrous is applied, or simply where absolute reliability is non-negotiable, upgrading to the BC8702 is not an option—it is an essential step in engineering a truly robust engine. This is the bushing chosen by those who build to win and build to last.
