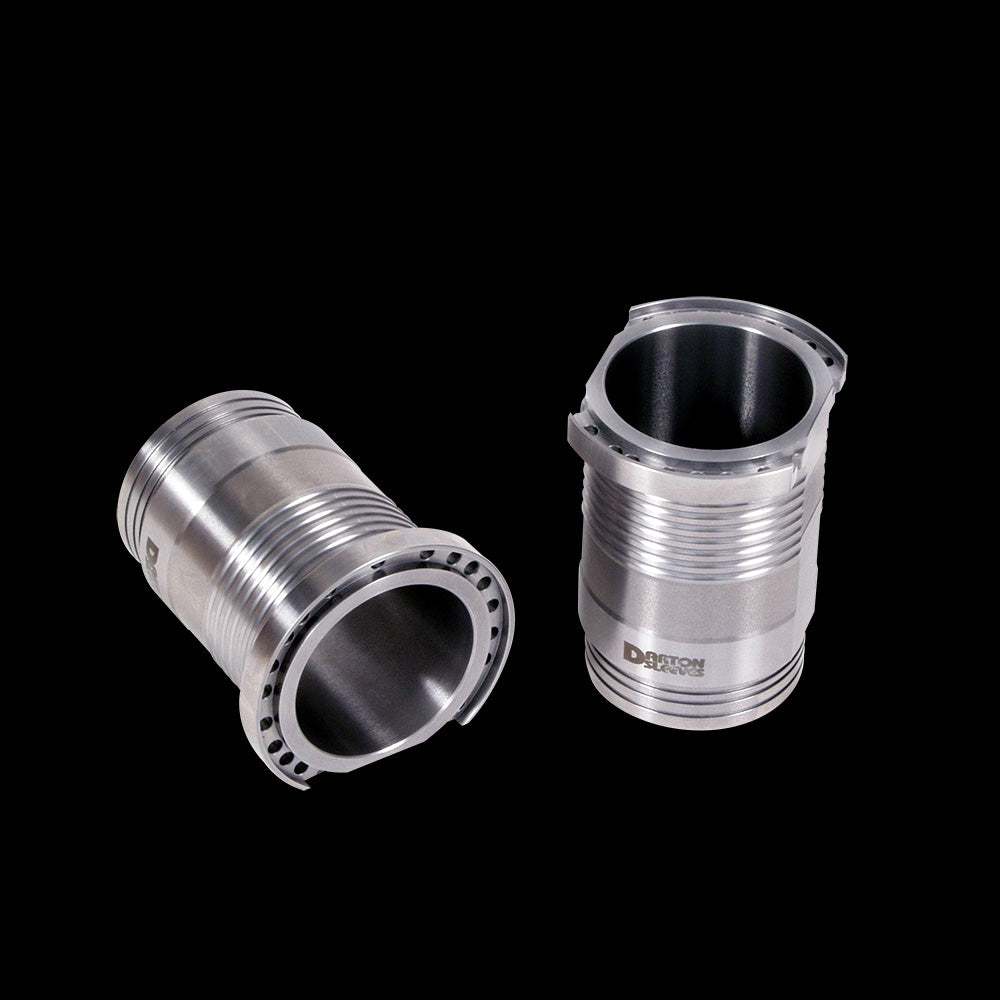

BC8008 – Honda C30A Darton M.I.D. Block Sleeves (93mm to 94mm bore)

For the engineer or builder confronting the inherent limitations of the legendary Honda C30A engine block, the search for a reliable, high-displacement foundation ends here. The BC8008 Darton M.I.D. (Modular Integrated Deck) Sleeve Kit is not merely an upgrade; it is a fundamental re-engineering of the engine’s core architecture. Designed to transform the factory 93mm bore aluminum block into a 94mm iron-lined fortress, this kit addresses the C30A’s most critical weakness—cylinder wall integrity under extreme pressure and thermal load. When pursuing power levels that far exceed factory tolerances, the factory FRM (Fiber-Reinforced Metal) liners become the primary point of failure. The BC8008 sleeves provide the absolute solution, enabling a larger bore for increased displacement, superior heat dissipation, and a piston-to-wall clearance stability that is mandatory for a high-performance, forged rotating assembly. This is the cornerstone component for any serious NSX or high-output C30A build aiming for reliability at the threshold of forced induction or high-RPM naturally aspirated power.

Engineering the Unyielding Foundation: Darton M.I.D. Technology

The superiority of the BC8008 kit is rooted in the proprietary Darton M.I.D. (Modular Integrated Deck) design. Unlike conventional “dry” sleeves that are pressed into a pre-bored block, or the problematic factory FRM liners, the M.I.D. system represents a holistic approach to block reinforcement. The sleeves themselves are crafted from a high-ductile iron alloy, chosen for its exceptional tensile strength, thermal conductivity, and wear resistance—material properties far surpassing those of aluminum or FRM composites. The critical innovation lies in the integrated upper flange. This flange is machined to sit precisely within a counterbore machined into the block’s deck surface, creating a positive mechanical lock that prevents any potential sleeve movement, a phenomenon known as “sleeve walk,” under extreme combustion pressures and thermal cycling. This integration also significantly improves heat transfer from the iron sleeve to the surrounding aluminum block and cooling system, stabilizing combustion chamber temperatures and reducing the risk of detonation. The finish on the internal bore is precisely honed to a cross-hatch pattern optimized for modern piston ring sealing, ensuring minimal oil consumption and maximum cylinder pressure containment from the first start-up.

Installation & Machining Protocol: Precision is Paramount

Implementing the BC8008 kit is a permanent, precision machining operation that demands the expertise of a seasoned engine machinist with specific Honda C30A experience. The process begins with the careful removal of the factory FRM liners, a procedure that must not compromise the parent aluminum block material. Once clear, the block is heated in a controlled oven to achieve a specific thermal expansion. The chilled Darton sleeves are then installed using a precision arbor press, utilizing the differential thermal expansion for a perfect, consistent interference fit. The block is then allowed to normalize to room temperature, creating an immense amount of clamp force holding the sleeve in place. The final and most critical phase is the machining: the deck surface is re-machined to be perfectly square to the main bore centerline, the integrated sleeve flanges are faced, and finally, the cylinder bores are honed to the target 94mm diameter (or other specified finish bore) with absolute perpendicularity and finish. This process transforms the block into a single, cohesive unit. It is strongly recommended to perform all related machining—such as align honing the main bearing bores—after sleeve installation, as the process can impart minimal stresses into the block structure.

Critical Benefits of the BC8008 Sleeve Upgrade

• Eliminates FRM Liner Limitations: Removes the risk of FRM liner cracking, chunking, or poor ring seal under high boost or nitrous oxide use.
• Enables Increased Displacement: The 94mm bore increases total engine displacement, a fundamental step for greater torque and power potential.
• Superior Ring Seal & Durability: The ductile iron material provides an ideal, consistent surface for modern piston rings, enhancing sealing and longevity.
• Enhanced Thermal Management: Improved heat conductivity away from the combustion chamber reduces hot spots and lowers the risk of pre-ignition.
• Absolute Block Stability: The M.I.D. flange system permanently locks sleeves in place, preventing movement even under the most severe operating conditions.
• Foundation for High Power: Creates a block capable of reliably supporting well over 1000 horsepower with the appropriate supporting components.

Vehicle Fitment & Application Notes

The BC8008 kit is engineered exclusively for the Honda C30A engine. Its primary application is in high-performance, competition, or ultimate-street builds where factory block limitations are a known constraint.

Primary Vehicle Application:

• 1991-1996 Acura NSX (North American Model)
• 1990-2005 Honda NSX (Global Markets)

Engine Application:

• Honda C30A engine code (All versions, 3.0L)

Critical Application Notes: This is a professional racing component. Installation requires complete engine disassembly and extensive, precision machine work. It is intended for use with a custom forged piston and rod combination designed for the 94mm bore. Use with factory 93mm pistons is not possible. Block deck height and cylinder head mating surface will require final machining post-installation. Always verify piston-to-valve and piston-to-deck clearances during engine assembly. For an in-depth technical review of ductile iron sleeve material properties and their advantages in high-performance engines, refer to this authoritative resource from Engine Builder Magazine.

Technical Specifications: BC8008 Kit

The Final Authority for Forged C30A Builds

In the realm of Honda C30A performance engineering, compromises at the block level are not an option. The Brian Crower BC8008 Darton M.I.D. Sleeve Kit stands as the unequivocal solution for builders who demand absolute reliability and maximum performance potential. It replaces a known engineering compromise with a component of racing pedigree, converting the C30A block from a potential liability into its greatest asset. By enabling a larger bore, perfect ring seal, and unprecedented cylinder wall stability, this kit lays the literal groundwork for achieving power figures once considered unattainable for the platform. For the build that cannot afford failure, specifying the BC8008 is the first and most critical decision.
