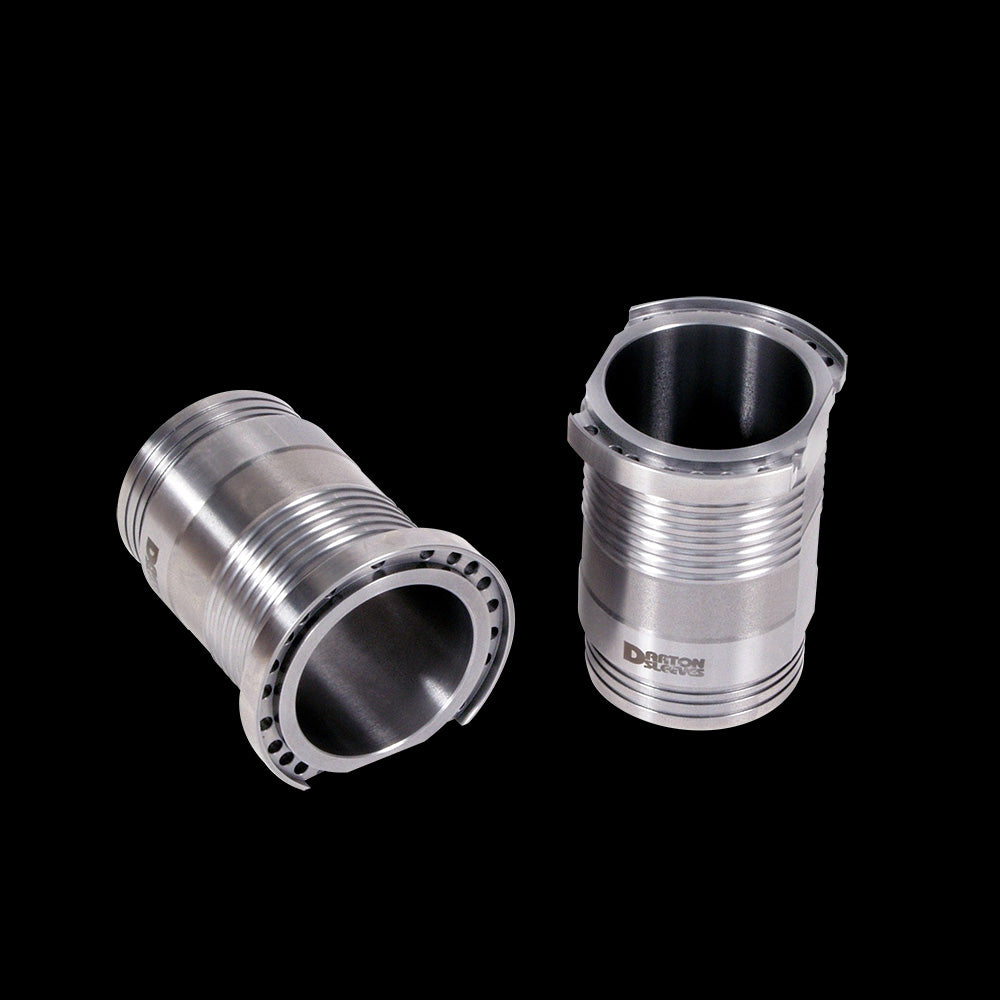

BC8025 – Nissan VR38DETT Darton M.I.D. Block Sleeves (95.5mm to 100mm bore)

When the factory limitations of the Nissan VR38DETT block become the single greatest barrier to your power goals, incremental upgrades no longer suffice. You require a foundational re-engineering, a solution that transforms the engine’s architecture from a potential liability into its greatest asset. The BC8025 Darton M.I.D. (Modular Integrated Deck) Sleeve Kit represents this paradigm shift. Engineered by Brian Crower utilizing Darton’s proprietary M.I.D. technology, this kit is not merely a set of cylinder sleeves; it is a complete block reinforcement system designed for the Nissan VR38DETT platform. It facilitates a massive bore increase from the standard 95.5mm up to 100mm, providing the displacement and structural integrity necessary for four-digit horsepower builds while maintaining unparalleled block rigidity and thermal management. This is the definitive upgrade for tuners, builders, and professional race teams who demand absolute reliability from their GT-R’s heart under extreme boost and cylinder pressure.

Material Science & Structural Architecture

At the core of the BC8025 kit is Darton’s revolutionary Modular Integrated Deck system, a technology that redefines cylinder bore construction. Unlike traditional “dry” sleeves pressed into a pre-machined block or “wet” sleeves that contact coolant directly, the M.I.D. system is a hybrid masterpiece. The sleeves are manufactured from a proprietary high-silicon, high-nickel alloy iron, a material chosen for its exceptional combination of tensile strength, thermal conductivity, and wear resistance far surpassing OEM cast iron. The “Integrated Deck” refers to the precision-machined upper flange of each sleeve, which, when installed, becomes an integral, load-bearing part of the block’s deck surface. This design creates a monolithic structure where the sleeve and block deck share clamping load from the cylinder head, drastically reducing the potential for deck distortion and head gasket failure—a critical weakness in highly stressed, open-deck block designs like the VR38DETT.

Installation Engineering & Block Preparation

The installation of the BC8025 kit is a precision machining operation that permanently alters the block’s architecture, necessitating the expertise of a qualified engine machinist. The process begins with the careful removal of the factory cylinder bore material to a specific diameter and depth, creating a precise interference-fit housing. The M.I.D. sleeves are then chilled and pressed into place with calculated force, creating a molecular bond known as a shrink-fit. This process ensures zero movement and optimal heat transfer from the sleeve to the block’s coolant passages. Following installation, the block deck is re-machined to a perfectly flat surface, integrating the sleeve flanges seamlessly. Finally, the sleeves are honed to the desired final bore diameter—anywhere from 95.5mm for a simple rebuild with superior strength up to the full 100mm for maximum displacement. This precise honing achieves the optimal cross-hatch pattern and surface finish for piston ring seating and oil retention.

Performance Gains & Reliability Benefits

The primary performance metric unlocked by the BC8025 kit is increased displacement. Boring from 95.5mm to 100mm increases individual cylinder displacement significantly, contributing to a substantial overall engine capacity increase. This translates directly to greater torque output and volumetric efficiency, allowing the engine to move more air per revolution. However, the true value lies in the synergistic reliability benefits that enable this power to be produced safely.

• Unmatched Cylinder Wall Stability: Eliminates bore distortion and flex under high combustion pressure, ensuring consistent piston ring seal and preventing power loss or blow-by.
• Superior Thermal Management: The high-grade alloy and shrink-fit installation provide faster, more even heat dissipation into the cooling system, reducing hot spots and mitigating detonation.
• Extended Engine Life: The wear-resistant iron alloy dramatically reduces bore wear, even with forged piston assemblies, making the block capable of multiple rebuilds.
• Foundation for Extreme Boost: Creates a block capable of reliably containing cylinder pressures exceeding 2,500 psi, a prerequisite for 1,500+ horsepower applications on race fuel or methanol.
• Future-Proofing: Allows for oversized bore in subsequent rebuilds, protecting your investment in the engine block itself.

Vehicle Fitment & Application Scope

The BC8025 Darton M.I.D. Sleeve Kit is specifically engineered for the Nissan VR38DETT engine code. This engine is found in the following applications, and the kit is essential for any of these vehicles targeting severe power levels or undergoing a rebuild after cylinder damage.

Primary Vehicle Fitment:

• Nissan GT-R (R35) (2009-2024) – All model years utilizing the VR38DETT engine.
• Nissan GT-R Nismo (R35) – For track-focused builds requiring the ultimate in block durability.

Recommended For: High-horsepower forced induction builds, time-attack/road racing engines, drag racing applications (especially those using nitrous or large-frame turbochargers), and any rebuild where the factory cylinder walls have been compromised by detonation, overheating, or mechanical failure. For more in-depth reading on sleeve material technology, consider this resource from Engine Builder Magazine.

Technical Specifications & Component Details

In conclusion, the Brian Crower BC8025 Darton M.I.D. Sleeve Kit is the cornerstone of any serious Nissan GT-R VR38DETT build destined for the upper echelons of performance. It transcends the role of a simple repair part, serving as a strategic performance investment that solves the inherent structural limitations of the factory block. By providing a massively over-boreable, thermally stable, and supremely rigid cylinder foundation, it allows builders to fully realize the potential of large turbochargers, aggressive camshafts, and high-pressure fuel systems. For the engineer-minded tuner who prioritizes longevity alongside peak output, this kit is not an option—it is an essential, non-negotiable component of a bulletproof engine assembly.
