BC8062 – Subaru EJ25 Darton MID-Sleeve Dry Sleeve Kit

For the builder pushing the absolute limits of the Subaru EJ25 platform, the factory open-deck block architecture represents the final, formidable frontier. Standard hypereutectic cylinder liners, while adequate for OEM power levels and moderate tuning, become the critical point of failure under the extreme cylinder pressures of high-boost forced induction, high-compression NA builds, or sustained track use. The solution is not merely more displacement, but fundamentally superior cylinder wall integrity. The Brian Crower BC8062 kit, featuring genuine Darton MID Sleeves, is the definitive engineering upgrade, transforming the EJ25’s foundation from a potential liability into an asset of immense strength. This system replaces the fragile factory liners with centrifugally cast, ductile iron sleeves, installed as a dry-interference fit, to create a block capable of reliably supporting bore sizes up to 102mm and the immense thermal and mechanical loads of championship-level performance.

The Core Limitation: OEM Open-Deck Cylinder Walls

The Subaru EJ25’s open-deck design, where the cylinder liners are not supported at the top by the block casting, is a weight-saving manufacturing technique that introduces a critical weakness for high-performance applications. Under high load and heat, cylinder walls can flex, distort, and ultimately fail. This flex leads to head gasket issues, reduced ring seal (causing blow-by and power loss), and in catastrophic cases, liner collapse or cracking. Even with aftermarket head studs, the weak link remains the liner itself. O-ringing the block addresses sealing at the deck surface but does nothing to reinforce the liner wall against flex and fatigue throughout its entire length. The BC8062/Darton system solves this at the root by replacing the entire liner with a component designed for motorsport.

Darton MID Sleeve Technology: A Material and Manufacturing Revolution

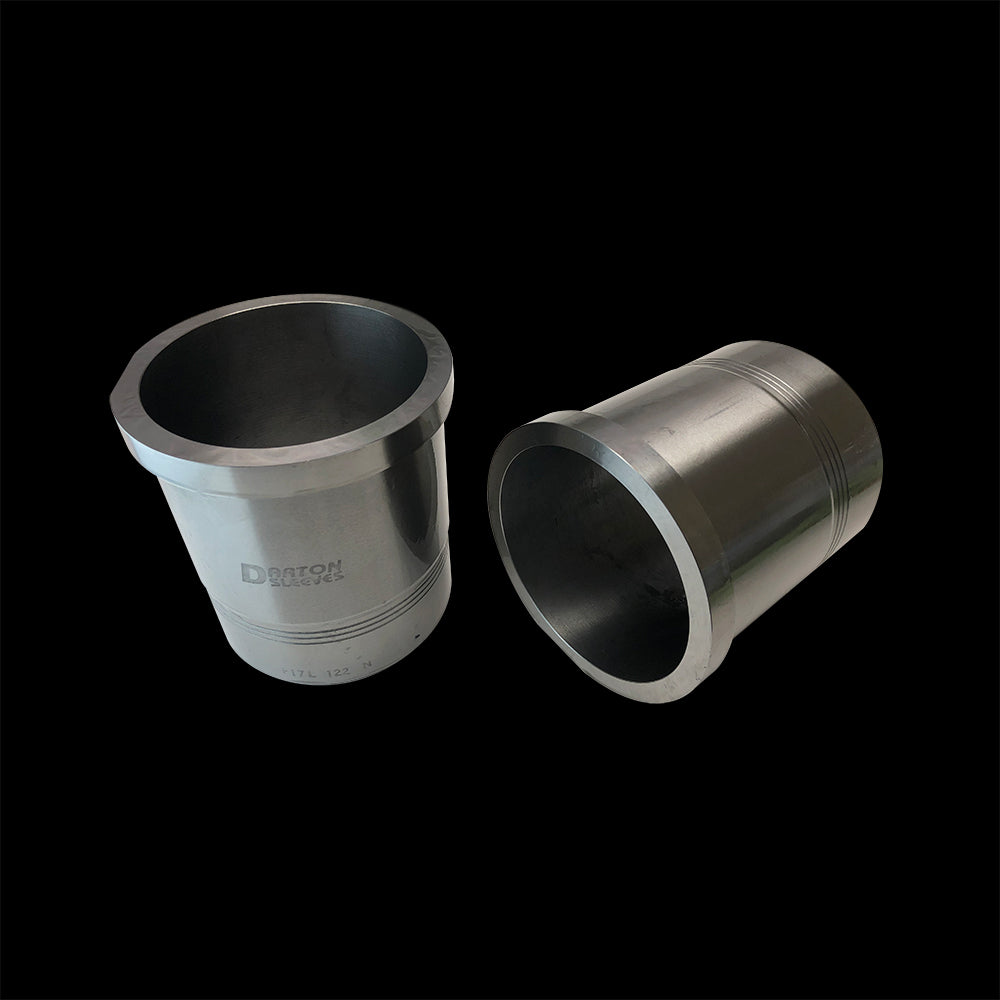

Not all sleeves are created equal. The Darton MID (Modular Integrated Deck) Sleeves in the BC8062 kit represent the pinnacle of sleeve technology. They are manufactured from a proprietary ductile iron alloy via a centrifugal casting process. This method ensures a perfectly uniform, dense grain structure throughout the sleeve wall, free from the porosity or inconsistencies possible in static castings. Ductile iron provides an optimal balance of tensile strength, thermal conductivity, and, crucially, ductility—allowing it to absorb and manage the shock loads and thermal expansion cycles of racing without becoming brittle.

The “Dry Sleeve” designation is key. These sleeves are installed with an interference fit into a precision-machined parent block, creating a direct metal-to-metal bond with the aluminum block. This maximizes heat transfer from the sleeve to the block and cooling system, a critical factor in temperature management. Unlike “wet sleeves” which seal against coolant, the dry sleeve design maintains the integrity of the engine’s coolant jackets, simplifying installation and eliminating a potential failure point for coolant leaks into the oil or combustion chamber.

Performance Advantages and Builder Benefits

Installing the BC8062 kit is a transformational procedure that fundamentally upgrades the block’s capabilities. The benefits are extensive and tangible:

• Unmatched Cylinder Wall Stability: Virtually eliminates bore distortion, ensuring perfect ring seal across the entire RPM and load range for maximum power retention and reduced blow-by.
• Enables Significant Overbores: Safely supports boring to 99.5mm for standard builds and up to a massive 102mm for stroker or extreme-displacement applications, thanks to the sleeve’s material strength and consistent wall thickness.
• Superior Thermal Management: The ductile iron material and dry-fit installation provide excellent heat dissipation, stabilizing combustion chamber temperatures and reducing hot spots that lead to detonation.
• Foundation for Extreme Power: Creates a block capable of reliably handling 800+ horsepower and beyond, when paired with appropriate internals, making it the standard for professional Subaru drag, time-attack, and rally builds.
• Long-Term Durability and Resale Value: A sleeved block is a permanent, top-tier upgrade. It withstands countless more rebuilds and stress cycles than an OEM block, making it a core asset for any serious performance vehicle.

Vehicle Fitment and Application Notes

The BC8062 kit is engineered specifically for the Subaru EJ25 phase I and phase II open-deck blocks. It is not for use with semi-closed deck blocks (like the EJ22T) or the later FA/FB series engines. Correct identification and machining are paramount.

Primary Fitment Includes: Subaru WRX (2002-2005), STI (2004-2006 USDM), Forester XT (2004-2006), Legacy GT (2005-2006), Baja Turbo, and other models utilizing the open-deck EJ255/EJ257 engine blocks. Always confirm your specific block casting number and architecture.

Crucial Installation Warning: Sleeve installation is a job for a professional machine shop with specific experience in Darton sleeves and Subaru blocks. The process involves:

1. Removing the factory liners.

2. Precision boring and honing the block to exact dimensions for the interference fit.

3. Heating the block and/or cooling the sleeves for installation (a “shrink fit”).

4. A final deck surfacing and hone to the target finished bore diameter (e.g., 99.5mm, 100mm, 102mm).
The block must be align-honed after sleeve installation due to potential main bore distortion. Discuss the entire build plan, including target bore size and piston specifications, with your machinist before work begins. For an in-depth technical analysis on cylinder wall thickness and sleeve dynamics, refer to this expert resource on engine block preparation from MotoIQ.

Technical Specifications: BC8062 Darton Sleeve Kit

Final Build Recommendation: The BC8062 Darton Sleeve kit is the cornerstone of any ultimate EJ25 build. It should be paired with forged pistons (like those from Brian Crower, CP, or JE), a forged rotating assembly, and upgraded cylinder head studs. This combination delivers a short block that is not just strong, but predictable and consistent—the true hallmark of professional-grade performance engineering. For builders who demand absolute reliability at the power frontier, this is the only acceptable starting point.
