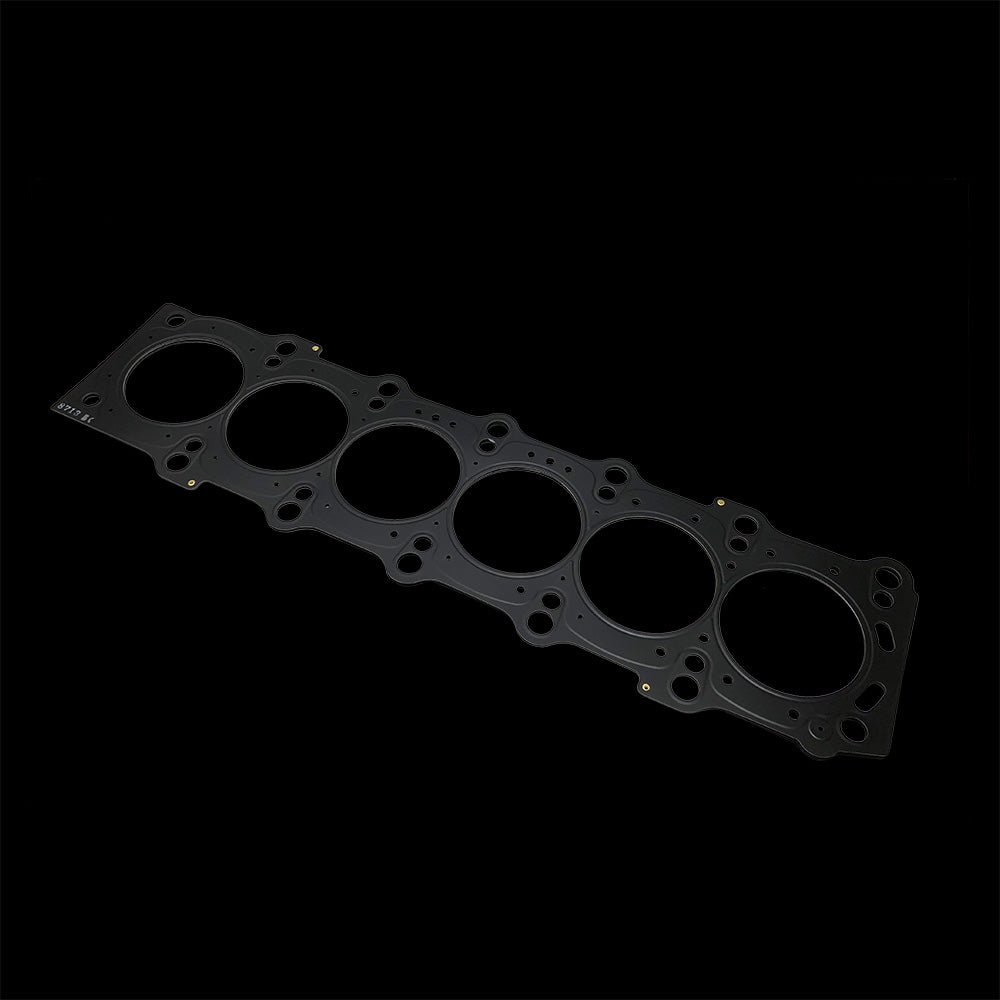

BC8230 – Toyota 2JZGTE BC Head Gaskets – 87mm Bore

Engineering the Ultimate Seal: The BC8230 MLS Head Gasket for the Toyota 2JZ-GTE

In the realm of high-performance Toyota engines, the 2JZ-GTE stands as a legendary force, revered for its robust architecture and immense tuning potential. This potential is ultimately bounded by the integrity of its sealing systems, with the head gasket serving as the critical barrier between combustion fury and cooling system integrity. For builds pushing beyond factory limitations, the stock gasket is a known failure point. The BC8230 from Brian Crower is not a replacement; it is a purpose-built upgrade engineered to withstand the elevated cylinder pressures and thermal loads of modified applications. Meticulously crafted in Japan to exacting standards, this 87mm bore, 1.3mm thick multi-layer steel (MLS) gasket is the definitive solution for tuners and builders demanding absolute reliability and consistent performance under extreme conditions.

Material Science and Construction: The Foundation of Reliability

Multilayer Steel (MLS) Architecture

The BC8230 abandons traditional composite or solid copper designs in favor of a sophisticated MLS construction. This design employs multiple, ultra-thin layers of 1003 stainless steel, each coated with a proprietary elastomeric sealing agent. Under torque, these layers conform micro-imperfections in the block and head deck surfaces, creating multiple, redundant sealing barriers. This layered approach provides superior resilience to the constant thermal cycling and flexure inherent in high-horsepower engines. Unlike composite gaskets that can deteriorate over time, the stainless steel core of the BC8230 is impervious to coolant and oil degradation, ensuring long-term sealing integrity. The precision of this construction is a direct result of its Made in Japan pedigree, leveraging advanced manufacturing techniques for flawless consistency.

Precision Sealing Beads and Fluid Port Design

Beyond its layered core, the BC8230 incorporates laser-etched micro-beads around each combustion chamber bore, coolant, and oil passage. These beads create a raised, concentrated sealing line that bites into the cylinder head and block surfaces under clamping load, dramatically increasing surface pressure at the most critical points. This targeted sealing is far more effective than a uniform flat surface. Furthermore, all fluid ports are strategically sized and reinforced. Coolant and oil passages are designed to prevent erosion from high-flow systems, while the fire rings—the hardened steel rings around each cylinder—are meticulously sized for the 87mm bore, ensuring they remain fully supported and cannot collapse inward under detonation or extreme pressure.

Performance Advantages for the Forced-Induction 2JZ

The 2JZ-GTE’s turbocharged nature places unique stresses on a head gasket. The BC8230 is engineered to meet these challenges directly, offering tangible benefits for street, track, and strip applications.

• Unmatched Blown-Head-Gasket Protection: The MLS design and laser beads provide a sealing capability that far exceeds OEM and many aftermarket composite gaskets, directly addressing the 2JZ’s weakness under high boost.
• Consistent Compressed Thickness: At 1.3mm thick, this gasket provides a known, stable quench area for optimized combustion when paired with appropriate piston and deck height calculations. It does not compress unpredictably like composite gaskets.
• Superior Heat and Pressure Resistance: The stainless steel layers can withstand sustained EGTs and cylinder pressures that would cause traditional gaskets to fail, making it ideal for big turbo, high-boost, and nitrous applications.
• Reusability Potential: On a properly prepared and undamaged surface, an MLS gasket like the BC8230 can often be reused during engine disassembly, a significant advantage for race teams and builders.
• Optimal Surface Finish Compatibility: It is designed for use with a fine (50-60 RA) deck surface finish, promoting optimal sealing without requiring extreme, block-weakening decking procedures.

Vehicle Fitment and Installation Protocol

Vehicle Fitment

The BC8230 is engineered specifically for the Toyota 2JZ-GTE twin-turbo engine. This precise fitment includes, but is not limited to, applications in the:

Toyota Supra JZA80 (1993-2002)

Toyota Aristo JZS161 (1997-2005)

Note: Always verify engine model and bore size. This 87mm bore gasket is designed for standard and most overbore configurations but must be matched to the actual cylinder bore diameter.

Critical Installation Requirements

Maximum performance from an MLS gasket is contingent upon correct installation. The cylinder head and block decks must be machined to a smooth, flat finish with a surface roughness average (RA) of 50-60 micro-inches. Mirror-finish surfaces are not recommended as they hinder the gasket’s ability to bite and seal. All old gasket material must be completely removed. Utilize the factory torque sequence and a quality torque wrench, tightening in incremental steps to the manufacturer’s final specification (typically 65-70 ft-lbs for ARP studs—always follow fastener manufacturer specs). For an in-depth technical discussion on MLS gasket surface preparation and theory, refer to this authoritative resource from Engine Labs on MLS sealing fundamentals.

Technical Specifications

The BC8230 Brian Crower Head Gasket represents a convergence of material science, precision manufacturing, and application-specific engineering. It transforms the head gasket from a maintenance item into a foundational performance component. For any serious 2JZ-GTE build targeting reliable, quadruple-digit horsepower figures, this gasket is not merely an option—it is an essential investment in the structural integrity of the engine. Its Japanese craftsmanship and proven MLS technology provide the confidence to push boundaries, secure in the knowledge that the most critical seal in your engine is engineered to hold.
