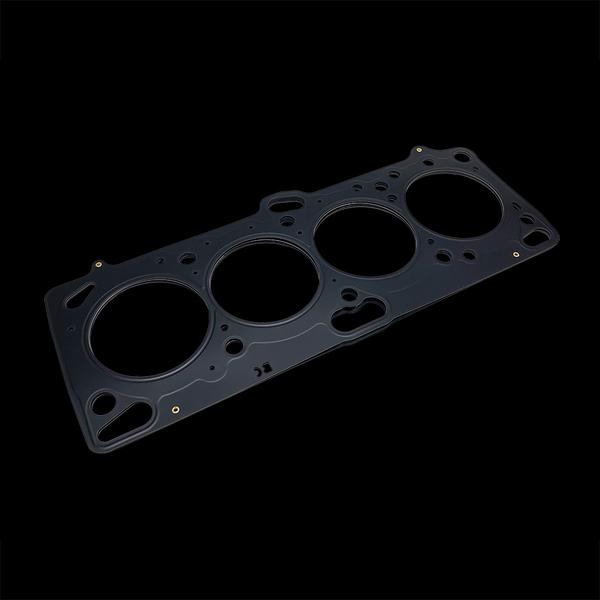

BC8245 – Ford 2.3L EcoBoost BC Head Gaskets – 89mm Bore

In the demanding world of forced induction, the head gasket is not merely a seal; it is the critical pressure boundary guarding against catastrophic thermal and mechanical failure. For the Ford 2.3L EcoBoost engine—a powerplant renowned for its high-output potential and equally notorious for its cylinder head and sealing challenges under stress—the stock gasket often represents the weakest link in a built motor. The BC8245 Head Gasket Set from Brian Crower is engineered as a definitive solution, transitioning from a maintenance component to a foundational performance upgrade. This 89mm bore gasket is the product of advanced material science and precision manufacturing, designed to withstand the extreme cylinder pressures and thermal cycling inherent in modified EcoBoost applications, from aggressive daily drivers to dedicated track weapons. It is the choice for builders who understand that real power is not just made, but reliably contained.

Material Science and Construction: Beyond the Factory Seal

Traditional multi-layer steel (MLS) gaskets work within a defined OEM specification, but they reach their operational limits quickly in tuned environments. The BC8245 utilizes a proprietary, performance-oriented MLS design that redefines resilience. Each layer is manufactured from a specialized, spring-tempered stainless steel, treated for exceptional yield strength to resist the “creep” and permanent deformation that plagues lesser gaskets under sustained high boost and temperature. The coating is not a simple rubberized finish but a micron-precise, viton-based polymer engineered for superior conformability to minor surface imperfections while maintaining exceptional thermal stability up to 320°C (608°F). This combination ensures the gasket accommodates the different thermal expansion rates of the aluminum cylinder head and the compacted graphite iron (CGI) block—a known stress point in the EcoBoost architecture—without losing clamp load or seal integrity. As noted in technical analyses of modern forced-induction engines, the interplay between block and head material is a primary factor in gasket selection¹.

Combustion Seal Design and Bore Reinforcement

The focal point of any head gasket is the combustion seal surrounding each cylinder bore. For the 89mm bore of the 2.3L EcoBoost, BC employs a patented double-wall, flat wire ring seal integrated into the outermost steel layer. This design creates two independent sealing surfaces around the entire circumference of the bore. Under combustion pressure, this ring embeds minutely into both the head and block deck, creating a metallurgical-grade seal that is vastly more resistant to flame front penetration and hot gas erosion compared to standard bead or embossed designs. Furthermore, the gasket material is reinforced around coolant and oil passages with additional steel layers and specialized sealants, preventing the cross-contamination of fluids—a failure mode that can quickly lead to hydro-lock or lubrication system failure.

Engineering for Sustained High-Performance Operation

Performance head gaskets must manage three fundamental forces: explosive combustion pressure, immense clamp load from head studs, and thermal cycling. The BC8245 is engineered as a system component that interacts optimally with other upgrades.

• Uncompromised Torque Retention: The spring temper of the steel layers allows the gasket to behave like a calibrated spring itself. It compensates for the slight relaxation of cylinder head studs over time, maintaining a consistent clamp load across all cylinders. This prevents the localized loss of seal pressure that is a primary cause of gasket “blow-by” between cylinders.
• Thermal Resilience and Heat Transfer: Unlike composite gaskets that can act as insulators, the all-metal construction of the BC8245 promotes efficient heat transfer from the head to the block, aiding in overall temperature management of the combustion chamber. This is critical in EcoBoost engines where charge density and heat are high.
• Compatibility with Aggressive Machining: When building a high-horsepower engine, decking the block and head for perfect flatness is standard practice. The BC8245 is designed to seal reliably on surfaces finished to a Ra (roughness average) of 50 micro-inches or smoother, providing builders with the flexibility to achieve optimal deck flatness without compromising the seal.

Precision Installation and Surface Preparation Protocol

No performance gasket can compensate for poor installation. The BC8245 demands and rewards precision. The deck surfaces of both the block and cylinder head must be meticulously cleaned, inspected for flatness (with a tolerance not exceeding 0.001″ over 6″ and 0.0005″ over 2″), and finished appropriately. Crucially, the factory torque-to-yield head bolts must be replaced with a set of high-grade, load-calibrated head studs, such as those from ARP. The gasket should be installed dry onto a perfectly clean, degreased block deck. No additional sealants are required or recommended on the gasket faces, as they can interfere with the engineered coating and lead to inconsistent clamping. Following a strict, multi-step torque sequence to the stud manufacturer’s specification is non-negotiable to evenly distribute the immense clamp load the gasket is designed to handle.

Vehicle Fitment: Application-Specific Engineering

The BC8245 is not a universal gasket; it is specifically engineered for the 89mm bore of the Ford 2.3L EcoBoost engine across its most performance-oriented platforms. Correct fitment is essential for proper sealing around all coolant and oil galleries.

Primary Applications Include:

• Ford Mustang EcoBoost (2015-2023)
• Ford Focus RS (2016-2018)
• Ford Ranger (2.3L EcoBoost) (2019-Present)
• Ford Explorer (2.3L EcoBoost) (2020-Present)
• Mazdaspeed 3 (MZR DISI Turbo) – Please verify engine code and bore spacing for specific model years, as this is a related engine architecture.

Note: Always confirm engine displacement and casting numbers. This gasket is designed for the modern 2.3L EcoBoost (engine code L3B, L4B, and related variants) with an 89mm cylinder bore. It is not compatible with earlier 2.3L architectures or the 2.0L EcoBoost.

Technical Specifications

Selecting the BC8245 Head Gasket Set is a deliberate engineering decision. It represents a commitment to building a 2.3L EcoBoost engine with a foundation capable of supporting significant power increases with unwavering reliability. This component is the silent guardian of cylinder pressure, the enabler of consistent performance, and a critical investment for anyone serious about extracting the full, durable potential from Ford’s versatile turbocharged powerhouse.
