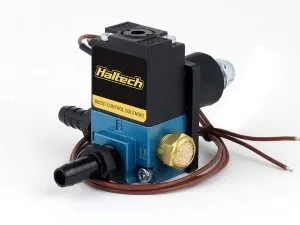

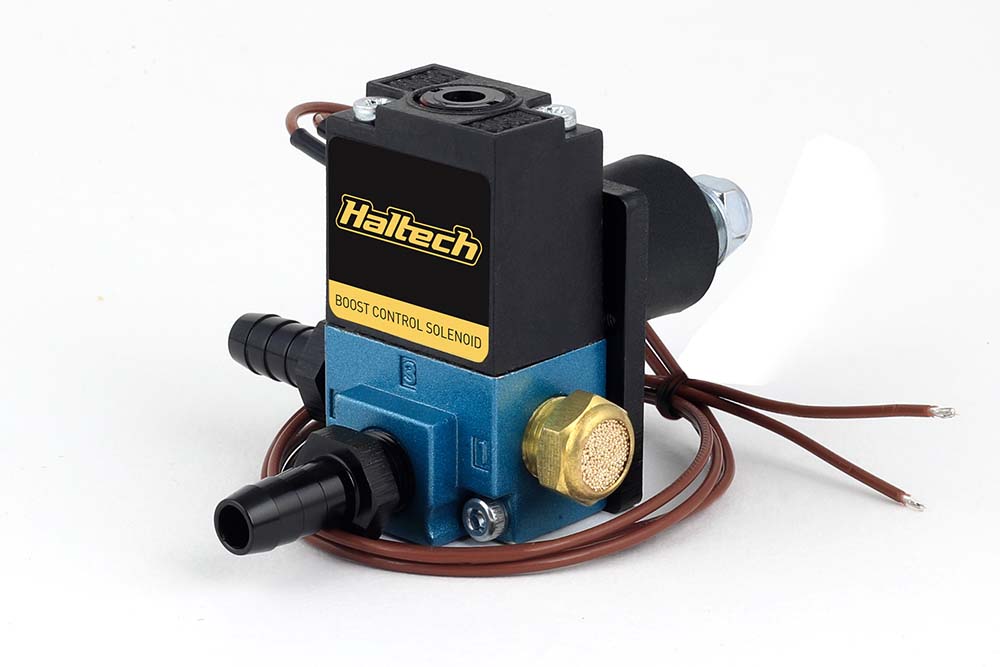

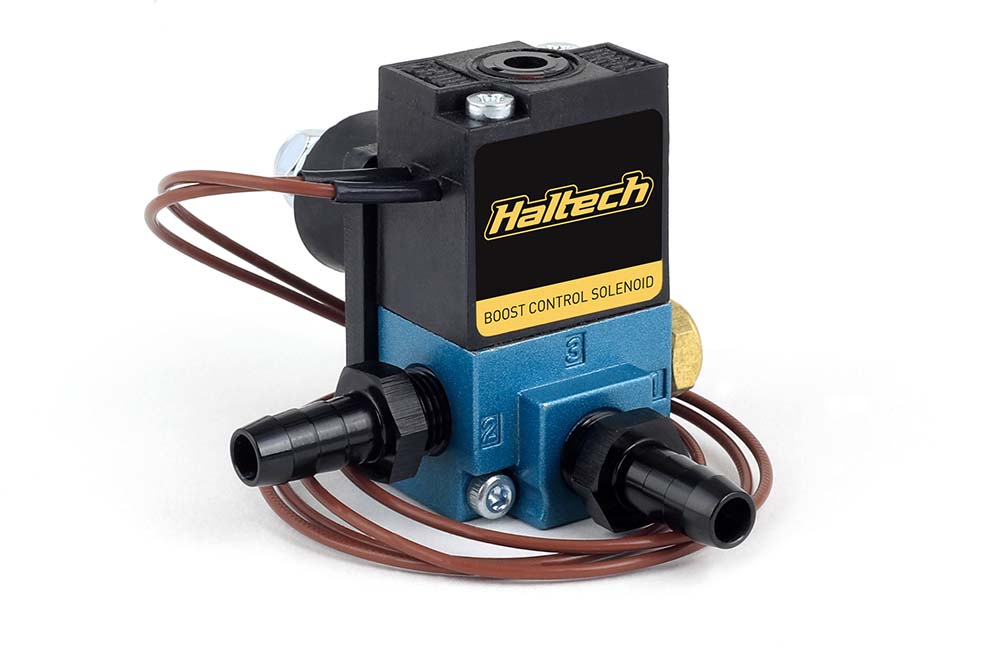

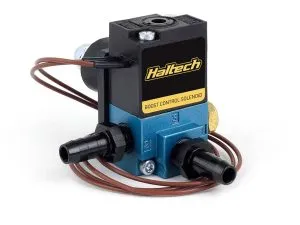

Boost Control Solenoid 3 Port 33Hz Thread: 1/8 NPT

Deterministic Boost Management: 3-Port 33Hz Boost Control Solenoid

The 3-Port 33Hz Boost Control Solenoid is the industry standard for reliable and precise manifold pressure management. Designed for standalone ECU integration, this solenoid allows the engine management system to take control of the wastegate, enabling features like boost-by-RPM, boost-by-gear, and closed-loop boost control. Unlike factory solenoids that can be slow and inconsistent, this 33Hz unit is optimized for the high-speed PWM signals generated by modern ECUs. Whether you are daily driving a turbocharged K-swap or racing a 2JZ, this solenoid provides the stable pneumatic signal required to maintain your fuel map calibration targets under all load conditions.

The Engineering of PWM Pneumatic Control

A 3-port solenoid operates by “interrupting” the boost signal traveling from the compressor housing to the wastegate actuator. By rapidly switching the valve at 33Hz, the ECU can “bleed off” a specific percentage of that pressure to the atmosphere (or back into the intake). This effectively “tricks” the wastegate into staying closed longer, allowing boost to rise above the base spring pressure. The 1/8 NPT threads on this unit ensure a robust, leak-free interface, which is critical because even a small vacuum leak can cause boost instability or dangerous over-boost. This Analogue-to-Digital interface (via the PWM signal) allows for a high degree of resolution, meaning the tuner can adjust boost in increments as small as 0.1 PSI.

Operational Benefits and Safety

The primary benefit of a high-quality 3-port solenoid is repeatability. Cheap solenoids often suffer from “heat soak,” where the internal coil’s resistance changes as the engine bay gets hot, leading to boost drift. This 33Hz solenoid is designed for the harsh automotive environment, ensuring that your boost at the end of a track session is the same as at the beginning. This consistency is vital for detonation protection. Furthermore, the 3-port design is inherently safer than some more complex setups; if the solenoid fails or loses power, it defaults to “Spring Pressure,” preventing an accidental over-boost. This makes it the perfect choice for high-performance street cars and weekend track warriors.

Installation and Harness Integration

Installation is straightforward, utilizing the included hose fittings and rubber isolated mount to reduce mechanical noise and vibration. The unit comes with a Deutsch DTM 2 connector set (HT-031012), ensuring that the wiring meets professional harness integration standards. The solenoid should be mounted in a relatively cool location away from the direct heat of the exhaust manifold. It is compatible with all Haltech Elite and Nexus series ECUs, as well as any standalone system that supports PWM boost control. Proper plumbing—typically from the compressor to Port 1, and the wastegate to Port 2—is essential for correct operation.

Technical Specifications

Summary & Includes

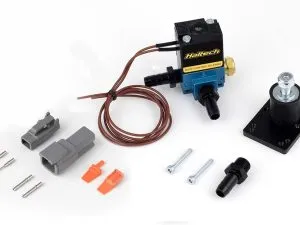

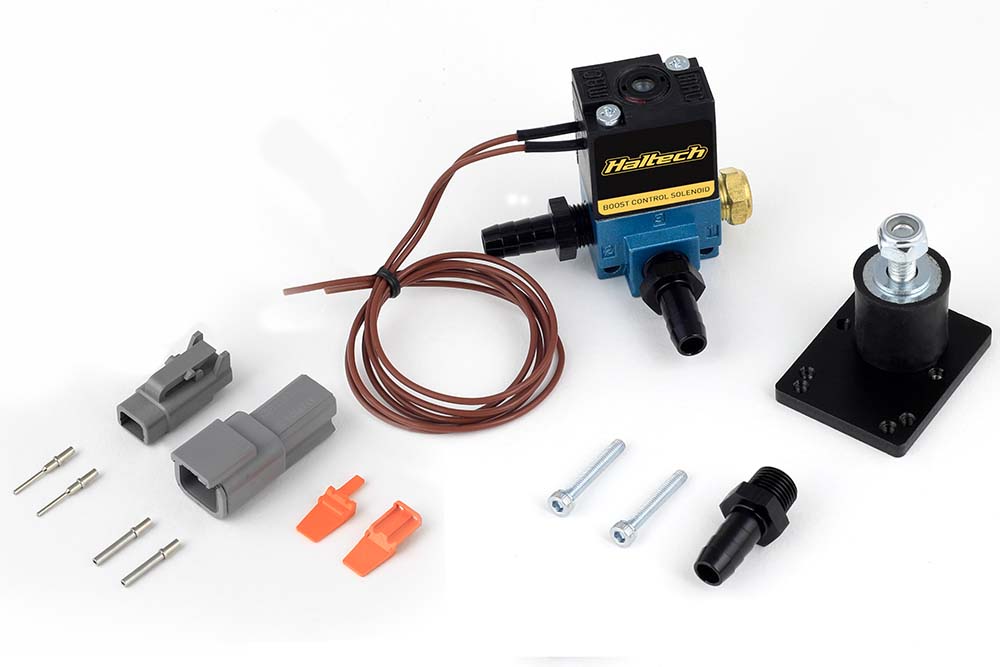

The Boost Control Solenoid 3 Port is the foundational upgrade for any turbocharged engine. Includes: 3-Port Solenoid, Hose Fittings, Isolated Mount, and DTM2 Connector Set. Note: The most reliable method for standard boost control applications.
