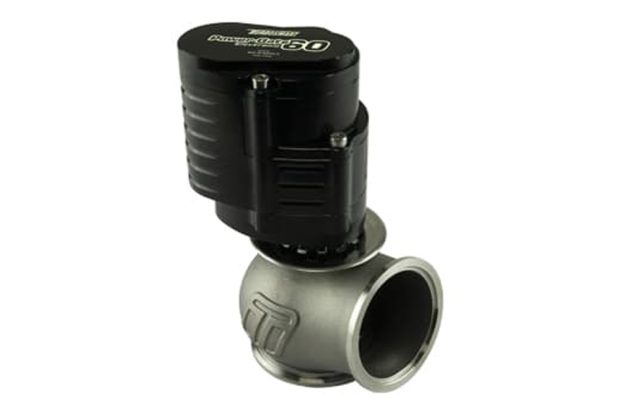

Turbosmart GenV eWG60 Powergate 60 Diameter: 60mm

The Pinnacle of Boost Management: Turbosmart GenV eWG60 Powergate

In the world of ultra-high-performance turbocharging, the traditional pneumatic wastegate has reached its physical limits. The Turbosmart GenV eWG60 Powergate is the definitive electronic solution for engines producing massive power. With a 60mm valve diameter, this unit is designed to bypass massive volumes of exhaust gas, preventing boost creep on the largest turbochargers in existence. The “e” in eWG signifies a fully electronic actuator, replacing springs and hoses with a high-torque DC motor. This provides the tuner with absolute, closed-loop boost control that is completely independent of exhaust backpressure or intake manifold signals. For builders of 2JZ, RB26, or V8 LS-swap drag cars, the eWG60 is the ultimate tool for dominion over manifold pressure.

Engineering Principles: Servo-Controlled Exhaust Management

The GenV eWG60 operates on a fundamental shift in philosophy: Active Control. Traditional gates are reactive; they open when the pressure overcomes the spring. The eWG60 uses a high-speed DC motor to position the valve exactly where the ECU commands it. This is facilitated by an Onboard Analogue 0-5V Wastegate Position Sensor, providing real-time feedback to the ECU. This Analogue-to-Digital interface allows the ECU to verify the gate’s position with millisecond precision. Furthermore, the unit features an Onboard 0-5V Actuator Temperature Sensor, ensuring that the electronics remain within safe operating limits during extreme endurance runs. The high-temp 347 SS body and Nitronic 60 valve guide ensure the physical valve can withstand the hellish environment of an exhaust manifold.

Operational Benefits: Zero to “All of It”

One of the most revolutionary benefits of the eWG60 is the elimination of minimum boost levels. In a pneumatic system, you can never run less boost than the base spring pressure. With the eWG60, you can set the boost to zero (gate wide open) or to full compressor potential (gate locked shut), all through your laptop. This is crucial for traction control in high-horsepower street cars and drag racers. By using a DC Motor Driver (DCMD), the ECU can implement Boost-by-Gear, Boost-by-Time, or even Boost-by-Wheelspin strategies with unprecedented accuracy. There are no hoses to melt, no diaphragms to tear, and no boost reference signals to leak—it is the most reliable boost control system ever developed.

Fitment and Thermal Management

The eWG60 uses the standard GenV Powergate60 mounting footprint, making it a direct upgrade for those already using Turbosmart V-band manifolds. To ensure the longevity of the electronic actuator, the unit is Liquid Cooled. This is a non-negotiable feature for circuit racing or high-load applications where radiant heat from the turbocharger could otherwise compromise the motor. During harness integration, the installer must provide coolant lines and the appropriate 4-wire connection for the motor and sensors. This unit is designed to integrate seamlessly with the Haltech Nexus and Elite series ECUs via a DCMD power stage.

Technical Specifications

Summary & Includes

The Turbosmart GenV eWG60 is the world’s highest-flowing electronic wastegate. Includes: 60mm eWG Unit, V-Band Clamps, and internal position/temp sensors. Note: Requires a DC Motor Driver (DCMD) and a compatible standalone ECU for operation.
