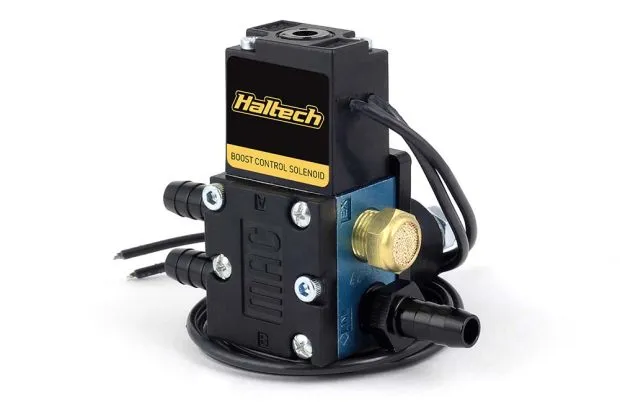

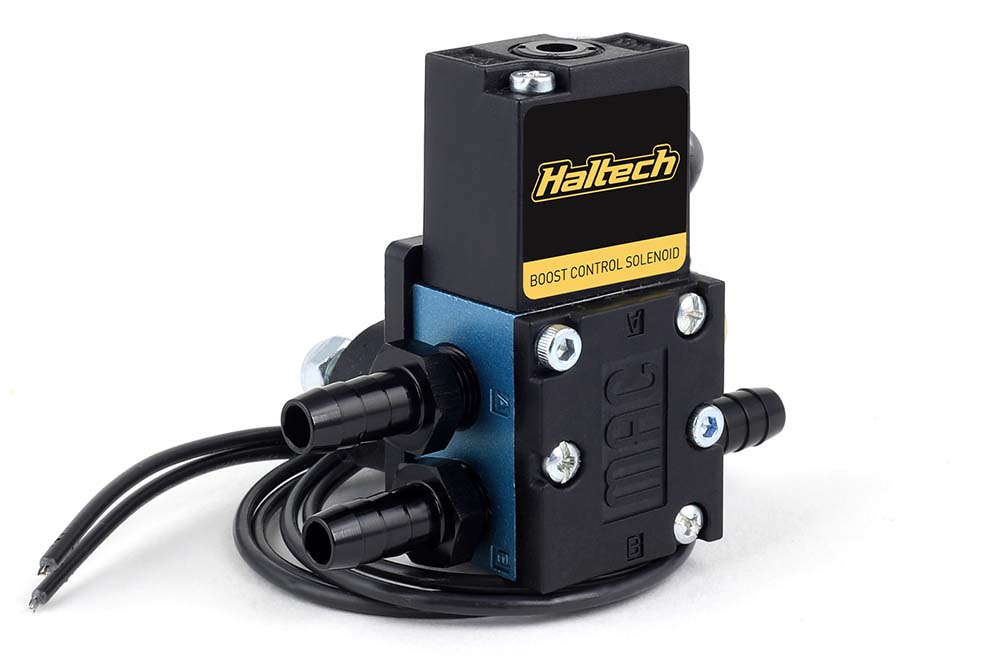

Boost Control Solenoid 4 Port Thread: 1/8 NPT

Maximum Authority Boost Management: 4-Port Boost Control Solenoid

In high-boost applications where a wide range of manifold pressure is required, the traditional 3-port solenoid often falls short. The Boost Control Solenoid 4 Port is the engineered solution for tuners who need to control boost from very low (spring pressure) to very high ( compressor maximum). The 4-port design works by applying pressure to the top of the wastegate diaphragm while simultaneously venting the bottom, effectively “locking” the gate shut with manifold pressure. This provides the ECU with significantly more authority over the wastegate, enabling closed-loop boost control that can overcome high exhaust backpressure. This is a staple component for K-swap turbo builds, 2JZ drag cars, and high-horsepower LS-swaps.

The Engineering of 4-Port Pneumatic Logic

A 3-port solenoid only controls pressure to one side of the wastegate diaphragm. The 4-port solenoid uses its extra port to manipulate the pressure differential across the entire actuator. When the solenoid is energized, it directs boost pressure to the top of the gate (pushing it closed) and vents the bottom. This allows the tuner to run much higher boost levels than would be possible with the same wastegate spring using a 3-port setup. This Analogue-to-Digital interface (via the ECU’s PWM signal) requires careful fuel map calibration because the boost response is much more aggressive. The high-speed 33Hz internal valve ensures that the ECU can make fine adjustments to maintain target pressure without oscillation.

Operational Benefits and Traction Management

The primary advantage of the 4-port solenoid is the massive boost range it unlocks. This is essential for traction-limited vehicles. For example, you can run a 7 PSI wastegate spring to keep the car controllable in 1st gear, and then use the 4-port authority to reach 30+ PSI in 4th gear. This “Boost-by-Gear” flexibility is a critical component of standalone ECU integration. Additionally, the 4-port design is more resistant to boost creep at high RPM because it can hold the gate shut more effectively during the turbocharger’s peak efficiency window. This improves safety by ensuring the boost curve follows the tuner’s command exactly, contributing to overall detonation protection.

Installation, Fitment, and Plumbing

This solenoid features 1/8 NPT threads, allowing for secure, leak-free connections using AN fittings or the included 5/16 barb fittings. It is supplied with a DTM2 Connector set for a professional harness integration compliant installation and an M6 isolated mount to protect the internal valve from engine vibration. Plumbing a 4-port solenoid is more complex than a 3-port; it requires a pressure source to be routed to the solenoid, which then distributes it to both the top and bottom ports of the wastegate. Correct plumbing is vital; reversing the lines can lead to an uncontrolled over-boost condition. It is highly recommended for use with Haltech Elite and Nexus series ECUs.

Technical Specifications

Summary & Includes

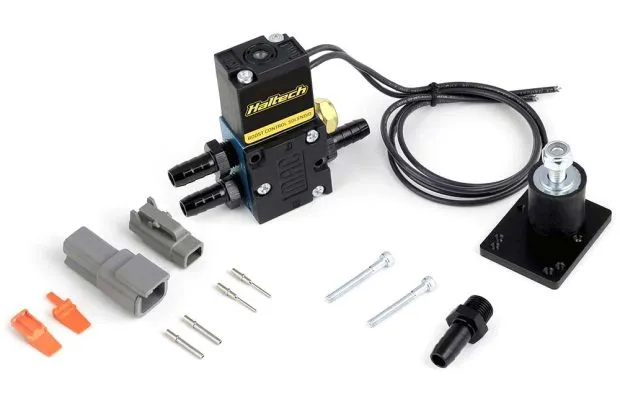

The Boost Control Solenoid 4 Port is the professional’s tool for wide-range boost management. Includes: 4-Port Solenoid, 4 Barb Fittings, Brass Vent, DTM2 Connector, and Mounting Hardware. Note: Plumbing is different from 3-port solenoids; consult the diagram before installation.
