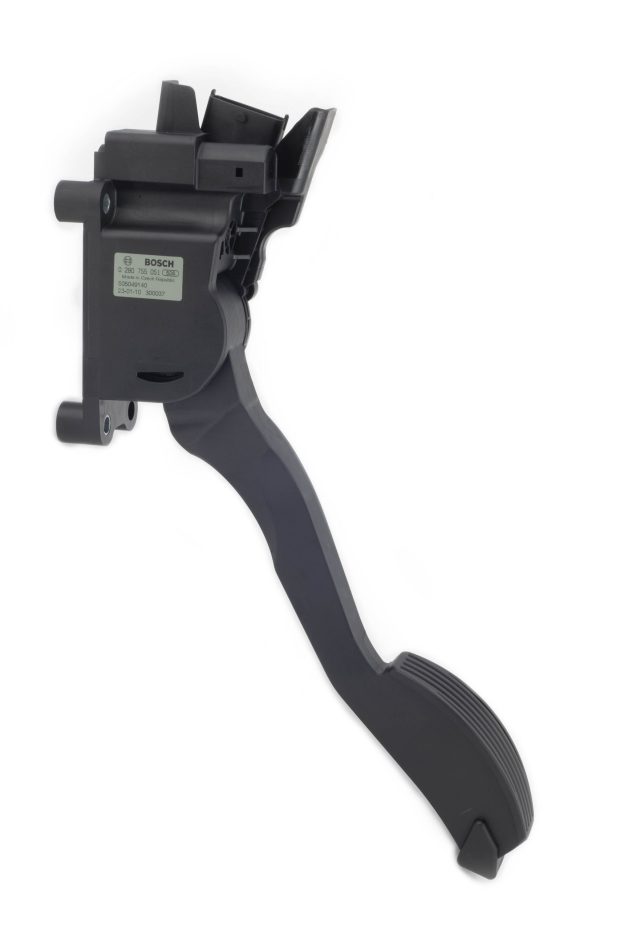

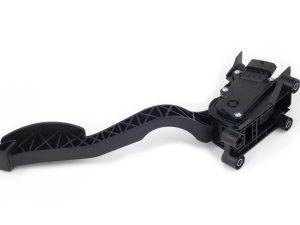

Precision Control: Bosch Drive-By-Wire Pedal Assembly
The transition from mechanical cable throttles to electronic Drive-By-Wire (DBW) is one of the most significant upgrades in modern performance tuning. The Bosch DBW Pedal Assembly is the industry-standard interface for this technology, offering a robust, hanging-style pedal solution for motorsport and high-performance street applications. Designed to work seamlessly with Haltech Nexus and Elite series ECUs (and other DBW-capable standalone units), this pedal assembly translates physical driver input into precise digital signals. It features a firewall-mounted hanging design, making it ideal for retrofitting into older chassis where floor-mounted pedals may not be suitable, or for custom pedal box fabrication in race vehicles.
Redundancy and Reliability
Safety is the cornerstone of any DBW system. The Bosch pedal assembly utilizes dual redundant potentiometer tracks to provide two independent voltage outputs to the ECU. This redundancy allows the engine management system to continuously cross-check the signals; if the curves do not correlate within a defined tolerance, the ECU can instantly revert to a safety mode, preventing unintended acceleration. Unlike older mechanical sensors that wear and develop “dead spots,” Bosch’s modern design ensures linear, noise-free signal delivery across its full 16-degree (70mm) travel range. This linearity is crucial for tuning advanced features like torque management, traction control, and launch control, where pedal position is a primary calculation variable.
Installation and Fitment
The assembly is a self-contained unit constructed from high-strength composite materials, ensuring rigidity and minimal weight. It includes the mating connector set, simplifying the wiring process. The pedal feel is engineered to provide consistent resistance and spring return, giving the driver confident feedback during modulation. When installing, it is critical to ensure the pedal is mounted securely to a reinforced section of the firewall to prevent flex, which can be interpreted by the driver as a spongy throttle.
Technical Specifications
| Feature | Specification |
|---|---|
| Sensor Technology | Dual Potentiometer Redundancy |
| Pedal Travel | 16 Degrees / 70mm Linear Travel |
| Mounting Style | Firewall Mounted / Hanging |
| Compatibility | Haltech Nexus, Elite, and most aftermarket DBW ECUs |
| Material | Composite Housing with Steel Arm Structure |

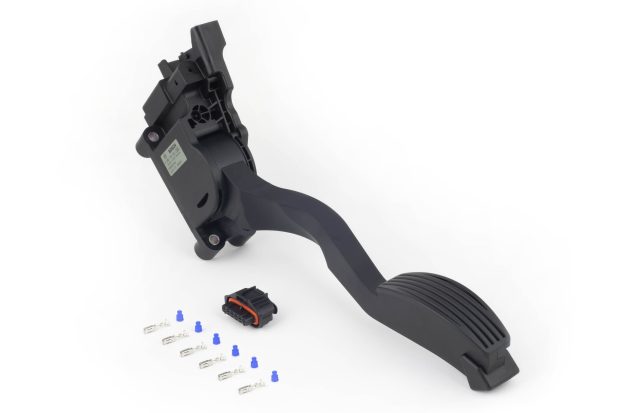

Includes
- 1 x Bosch DBW Pedal Assembly
- 1 x Mating Connector Housing
- Pin and Seal Set
