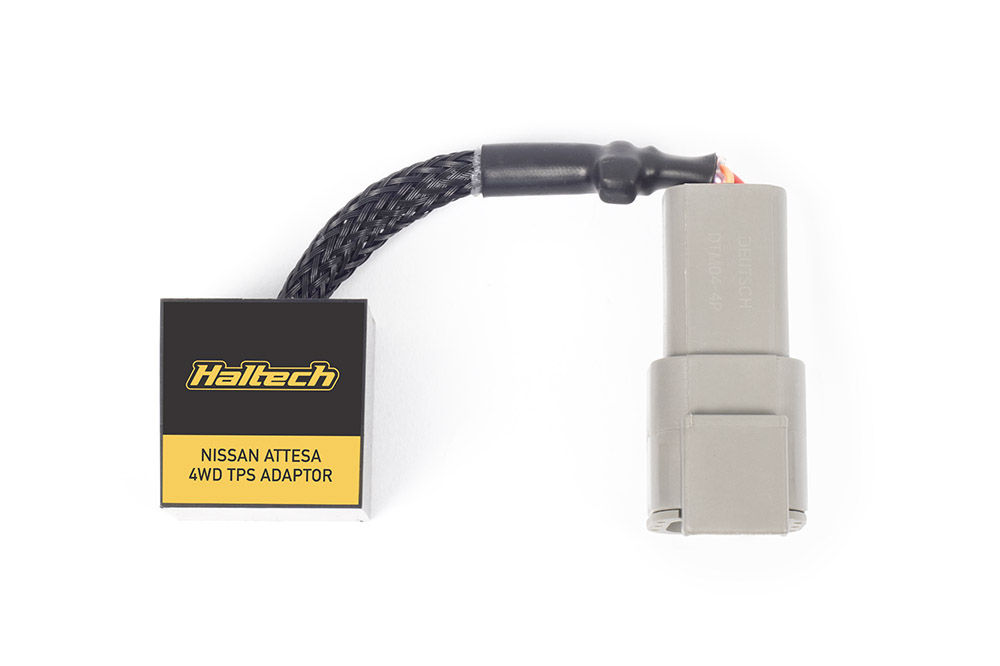

Nissan Attesa 4WD TPS Adaptor

Advanced Traction Integration: Nissan Attesa 4WD TPS Adaptor

The Nissan R34 Skyline GT-R is world-renowned for its ATTESA E-TS all-wheel-drive system, which uses a complex torque-splitting logic to provide unparalleled traction. However, when upgrading to a standalone ECU integration, a common problem arises: the ATTESA 4WD controller and the Multi-Function Display (MFD) require a specific, scaled Throttle Position Sensor (TPS) signal that many aftermarket ECUs cannot output natively. The Nissan Attesa 4WD TPS Adaptor is the engineered solution. This device acts as a signal translator, taking the TPS signal and scaling it to the precise voltage range required by the OEM 4WD ECU. This ensures that the vehicle’s traction management remains fully operational, preserving the legendary GT-R driving dynamics while allowing for advanced engine tuning.

Engineering Principles: Signal Scaling for Torque Management

The ATTESA system relies heavily on the rate of throttle change and absolute throttle position to determine how much torque to send to the front wheels. If this signal is missing or incorrect, the system may default to a 2WD mode or exhibit unpredictable behavior. This adaptor uses a PWM-to-Analogue converter logic or high-precision voltage scaling to ensure the output waveform matches the Nissan factory specification. It essentially bridges the gap between the new high-resolution TPS used for fuel map calibration and the older, specific requirements of the ATTESA control unit. For enthusiasts pushing the limits of the RB26DETT, this adaptor is a non-negotiable component to ensure that the 4WD system can effectively put the power to the ground.

Operational Benefits and Protection Features

By providing a clean, scaled signal to the ATTESA ECU, this adaptor prevents the AWD system from entering a limp mode. It also ensures that the MFD (Multi-Function Display) correctly shows throttle percentage, which is a vital diagnostic tool for the driver. In high-performance scenarios, such as circuit racing or drag racing, the closed-loop boost control and detonation protection managed by the standalone ECU can work in harmony with the 4WD system’s torque splitting. This prevents excessive driveline shock and maximizes the efficiency of the ATTESA E-TS logic. Without this adaptor, the tuner is often forced to compromise on the AWD system’s sensitivity, leading to slower corner exits and reduced safety.

Fitment Restrictions and Installation Notes

This adaptor is specifically designed for the Nissan Skyline GT-R R34. It is important to note that this unit is intended for Cable Throttle only and is not suitable for Drive-By-Wire (DBW) applications. Furthermore, this adaptor is non-required for Plug ‘n’ Play units such as the Haltech Platinum PRO Direct Plug-in range, as those ECUs already incorporate the necessary signal scaling internally. This adaptor is primarily for users building custom Harness Integration solutions or using universal standalone ECUs where the factory 4WD signal path must be manually reconstructed.

Technical Specifications

Summary & Includes

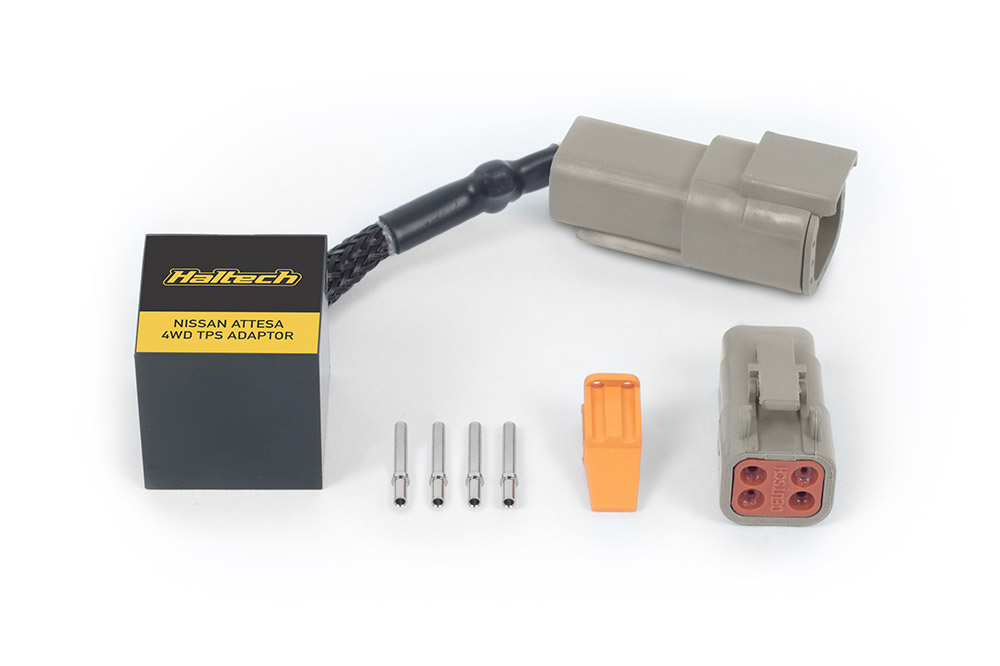

The Nissan Attesa 4WD TPS Adaptor is the vital link for maintaining AWD functionality in high-end R34 builds. Includes: 1 x TPS Adaptor and 1 x Matching Set of Deutsch DTM 4 Connectors. Note: Check your ECU type before ordering; this is for universal or custom loom applications only.
