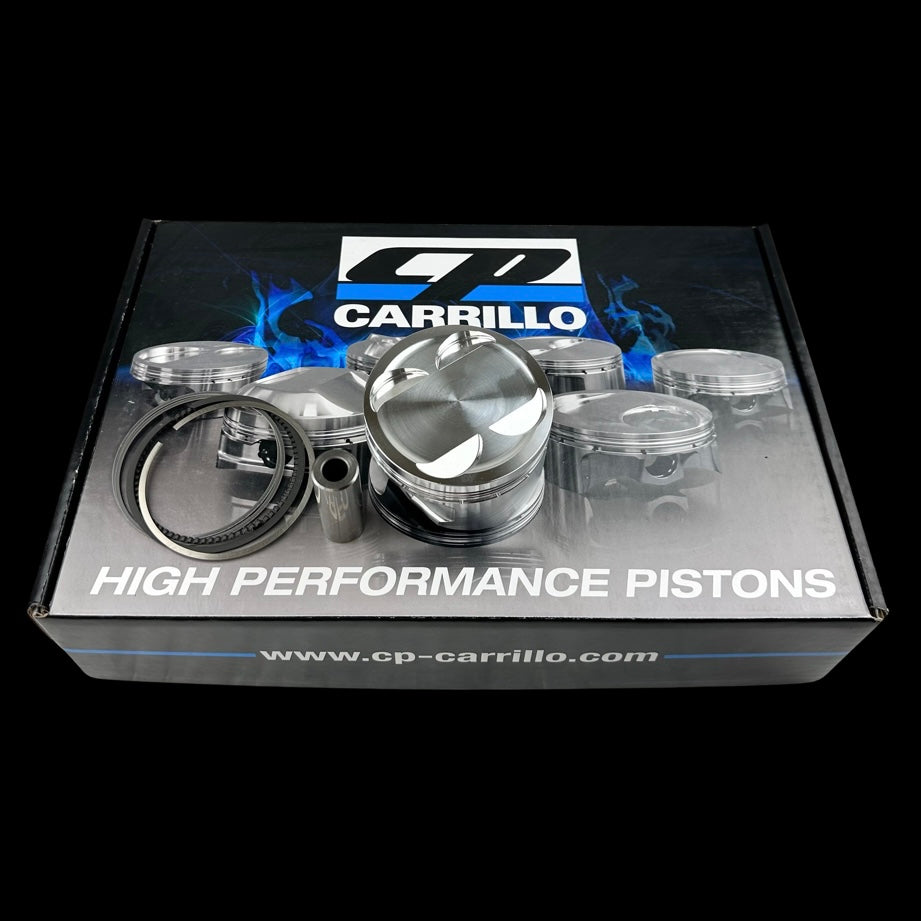

CP7705 – BMW/TOYOTA B58B30 CP Shelf Pistons w/All Hardware – 82mm x 11:1

In the relentless pursuit of horsepower and durability, the piston stands as the sentinel of the combustion chamber. For tuners and builders pushing the celebrated BMW B58B30 and its Toyota Supra counterpart beyond factory limits, the choice of piston is a fundamental determinant of an engine’s ceiling. The CP7705 Shelf Piston Set is not merely a component; it is a calculated upgrade engineered for those who understand that genuine performance is built from the inside out. Designed as a direct, no-compromise replacement and enhancement for the 3.0-liter inline-six, these 82mm, 11:1 compression ratio pistons from CP-Carrillo represent a pinnacle of off-the-shelf forced induction componentry. They bridge the gap between OEM reliability and full-race billet specifications, offering a forged billet solution for builds targeting elevated boost levels, aggressive timing, and sustained high-RPM operation without the extended lead times of custom designs. This is the foundation upon which 600+ horsepower B58 builds are confidently constructed.

Material Science & Forged Billet Construction

The core advantage of the CP7705 piston lies in its genesis: it is machined from a solid billet of 2618-T6 aluminum alloy. Unlike cast or even conventional forged pistons that are formed from a slug, the billet process begins with a denser, more homogeneous material structure. CP-Carrillo’s proprietary forging and machining process aligns the metal grain flow to the final contour of the piston, dramatically increasing tensile and fatigue strength at critical stress points such as the pin bosses and ring lands. The 2618 alloy itself is chosen for its superior high-temperature strength and thermal stability compared to the 4032 alloy often used in lower-stress applications. While 2618 exhibits slightly greater thermal expansion, requiring meticulous clearancing, it retains its strength and resists cracking under the extreme thermal and pressure cycles of a high-boost, direct-injection engine like the B58. This material choice is a clear statement of intent: these pistons are built for the severe environment of modified, high-output engines where margin of safety is paramount.

Precision Geometry for the B58 Platform

Beyond the raw material, the CP7705 is meticulously sculpted for its specific role. The 82mm bore size maintains the factory displacement, ensuring compatibility with standard cylinder liners while allowing for a necessary overbore during engine refresh. The 11:1 static compression ratio is strategically selected. It preserves the engine’s responsive, efficient character on low boost and pump gasoline while providing a stable platform for significant boost increases. When paired with modern fuel systems and tuning, this ratio supports immense power potential without resorting to the detonation-prone extremes of higher compression or the lag-inducing drawbacks of greatly reduced ratios.

The piston’s profile features a contoured, anti-detonation dome designed to complement the B58’s combustion chamber, promoting efficient flame travel and mitigating hot spots. Critical dimensions such as compression height and pin bore location are held to exacting tolerances to maintain proper deck clearance and rod geometry, ensuring the rotating assembly remains balanced and harmonious. The valve reliefs are precision-machined to provide ample clearance for aggressive camshafts without unnecessarily compromising crown strength, a common pitfall in generic piston designs.

Key Performance Benefits & Design Features

• Forged Billet 2618-T6 Aluminum: Maximizes strength and fatigue resistance for high-boost and high-RPM applications.
• Optimized 11:1 Compression Ratio: Balances off-boost driveability with high-boost power potential on pump and race fuels.
• CNC-Machined Anti-Detonation Topography: Contoured crown design controls combustion dynamics for efficiency and safety.
• Proprietary Skirt Coating: Reduces friction, minimizes cold-start wear, and enhances scuff resistance.
• Precision-Machined Ring Grooves: Finished with a nitride treatment for extreme hardness, providing a stable, wear-resistant seat for high-performance ring sets and preventing groove roll.
• Moly-Black Anodized Crown: Provides a durable thermal barrier, reducing heat intake into the piston and directing energy to the turbocharger.
• Included High-Grade Hardware: Set comes complete with CP’s own wrist pins and Spirolox retaining rings, engineered as a cohesive system.

Complete Vehicle Fitment & Application Notes

The CP7705 is engineered as a direct-fit performance solution for the BMW B58B30 engine and its Toyota-branded variant. Correct installation is critical and assumes the block will be measured, bored, and honed with torque plates to final dimensions by a qualified machinist. Proper piston-to-wall clearance must be established based on CP’s recommendations and the final engine use case.

Primary Vehicle Fitment Includes:

• BMW Applications: All models equipped with the B58B30 engine (2016+), including but not limited to:
  • F22/F23 240i
  • F30/F31/F34 340i
  • G20/G21 330i/340i (B58 specific)
  • F32/F33/F36 440i
  • G02/G01 X3/X4 M40i
  • MINI Clubman JCW (F54)
• Toyota (GR Supra) Application:
  • A90/A91 Toyota GR Supra (2020+) with the B58 engine.

Note: Always verify engine code and specific displacement. This piston set is designed for the standard 82mm bore B58B30. For expert insights on maximizing the B58 platform’s potential with forged internals, refer to this detailed technical resource on modern inline-six engine tuning principles.

Installation & Technical Specifications

Installing CP7705 pistons requires a methodical, precision-focused approach. The block must be cleaned and inspected. Cylinders should be bored and honed to the target final diameter (typically 82mm with a specified clearance) using a torque plate to simulate head clamping force, ensuring perfect cylinder roundness under operational conditions. Piston rings must be gapped according to CP’s specifications for your intended power level and fuel type, as forced induction and nitrous oxide use require larger end gaps. Always use a quality assembly lubricant and follow a staged torque sequence when installing the connecting rods to the piston pins.

The CP7705 piston set transforms the B58 from a formidable factory engine into a resilient, high-strung powerhouse. It provides the foundational integrity needed to harness the capabilities of large turbochargers, aggressive ethanol blends, and advanced tuning strategies. By selecting a shelf piston engineered with the rigor of a motorsport component, you are investing not just in parts, but in predictable, reliable performance. This is the definitive choice for the discerning builder who refuses to compromise on the integrity of their engine’s core.
