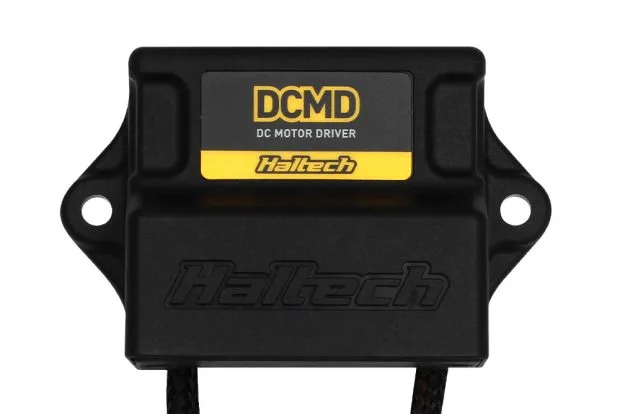

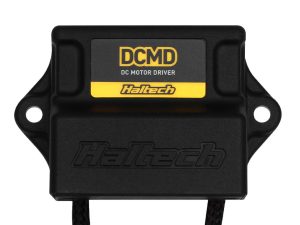

DC Motor Driver – DCMD Size: 86mm x 55.5mm

Precision Actuator Management: DC Motor Driver (DCMD)

As automotive engineering moves toward more sophisticated electronic controls, the demand for high-current motor management has increased. The DC Motor Driver (DCMD) is a heavy-duty power interface designed to bridge the gap between low-current ECU outputs and high-current DC motors. Measuring a compact 86mm x 55.5mm, this driver is the definitive solution for controlling advanced peripherals that require bidirectional movement and precise speed control. Its most common application is for Turbosmart Electronic Wastegates (e-gates), where closed-loop boost control demands millisecond-perfect response times. By using an internal H-Bridge motor driving circuit, the DCMD allows a standalone ECU to command high-torque motors with professional-grade accuracy.

The Engineering of H-Bridge Motor Control

At the core of the DCMD is the H-Bridge architecture. A standard ECU output can only switch power in one direction. However, an electronic wastegate or a Varex valved exhaust motor needs to move both forward and backward. The H-Bridge uses four transistors to switch the polarity of the power going to the motor, allowing the ECU to control direction and speed via Pulse Width Modulation (PWM). This is critical for standalone ECU integration because it protects the ECU’s sensitive internal drivers from the high current and inductive flyback generated by large DC motors. The DCMD acts as a ruggedized power stage, handling the heavy electrical lifting while the ECU provides the intelligent logic signals.

Operational Benefits and Boost Management

The DCMD is a game-changer for turbocharger management. Traditional pneumatic wastegates are limited by spring pressure and exhaust backpressure. With an e-gate driven by a DCMD, the tuner has absolute control over the wastegate position. This enables features like Instant Spool, where the gate is held shut with motor force, and Over-boost Protection, where the gate can be snapped open in a fraction of a second. Additionally, this driver is perfect for controlling DC motors in variable-vane turbos or electric water pumps. In a fuel map calibration context, the ability to control heat through motor-driven peripherals ensures more consistent air-intake temperatures and improved engine longevity.

Installation, Fitment, and ECU Logic

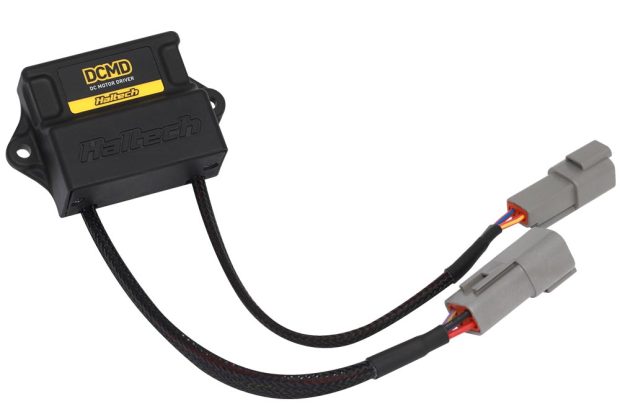

The DCMD is designed to work seamlessly with Haltech Nexus and Elite series ECUs. It requires two Digital Pulse Outputs (DPO) from the ECU to control the bridge (Active State = Low). The unit includes a comprehensive connector kit, featuring Deutsch DT and DTM series plugs for a professional, harness integration compliant finish. While the DCMD is exceptionally versatile, it is important to note that the Platinum Series ECUs do not natively support the e-gate function, though their outputs can still drive this unit for simpler DC motor applications. The compact size allows it to be mounted near the motor or within the vehicle’s electronics bay.

Technical Specifications

Summary & Includes

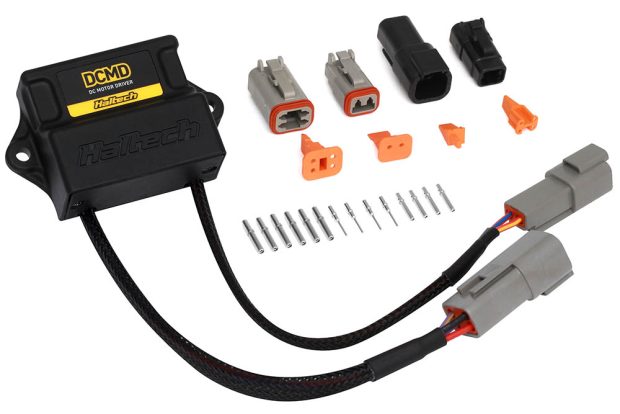

The DC Motor Driver (DCMD) is the essential power stage for modern electronic actuators. Includes: 1 x DCMD Driver, all necessary Deutsch connectors/pins, and a Quick Start Guide. Note: Mandatory for running electronic wastegates on standalone ECUs.
