Elite 1000/1500 Honda OBD-I B-Series Plug ‘n’ Play Adaptor Harness

Seamless Integration: The Honda B-Series OBD-I to Elite Adaptor

For the Honda enthusiast dedicated to the B-Series platform, the transition from a factory OBD-I ECU to a modern standalone engine management system is the definitive step toward unlocking true performance. The Elite 1000/1500 Honda OBD-I Plug ‘n’ Play Adaptor Harness is engineered to bridge this technological gap with military-grade precision. This component is not merely a wiring adapter; it is a meticulously designed interface that connects the advanced logic of a Haltech Elite 1000 or 1500 ECU directly to the factory wiring harness of 1992-1995 Honda Civic, Integra, and Prelude models. By eliminating the need for invasive wire cutting, splicing, or pin-swapping, this adaptor preserves the integrity of the vehicle’s original electrical architecture while providing the tuner with the absolute control required for forced induction, high-compression, or individual throttle body setups.

Engineering for Reliability and Ease of Installation

The architecture of this adaptor harness prioritizes signal fidelity and mechanical robustness. In a performance environment, high-RPM vibration and thermal cycling can wreak havoc on inferior electrical connections. This Haltech adaptor utilizes OEM-grade connectors that mate perfectly with the factory Honda OBD-I plugs, ensuring a secure, tactile lock that resists disconnection under track conditions. The wiring between the adaptor interface and the ECU is constructed from high-temperature, cross-linked polyethylene (XLPE) insulated wire, offering superior resistance to abrasion and heat compared to standard PVC.

Furthermore, this plug-and-play solution drastically reduces installation time. What typically requires hours of reviewing pinout diagrams and soldering is reduced to a simple plug-in operation. This efficiency allows the builder to focus on what matters most: calibration and tuning. The harness also integrates an essential M14 x 1.5 Air Intake Temp (AIT) sensor, a critical component for shifting from the factory mass airflow or narrowband logic to a responsive Speed Density fuel strategy favoured in performance tuning.

Operational Benefits for the Tuner

Installing this adaptor harness unlocks the full suite of Elite ECU features without the headache of custom wiring. Tuners gain immediate access to fully programmable fuel and ignition maps, advanced knock control, and data logging capabilities. The harness correctly routes all critical factory signals—including Crank Position (CKP), Top Dead Center (TDC), and Cylinder Position (CYP) sensors inside the distributor—ensuring the Elite ECU synchronizes perfectly with the engine’s mechanical timing. It supports the factory VTEC solenoid activation, allowing for user-definable VTEC engagement points based on load and RPM, rather than the static factory parameters.

Fitment and Application Guide

This adaptor is specifically engineered for Honda vehicles equipped with OBD-I engine harnesses and B-Series engines. It is designed for manual transmission applications only.

• Honda Civic (1992-1995): EG, EH chassis with B16 or B18 swaps using OBD-I harness.
• Honda Integra (1994-1995): DC2 chassis with B18C1/C5.
• Honda Prelude (1992-1995): BB chassis with H-Series or B-Series adaptation.
• Honda Accord (1990-1995): CB/CD chassis requiring OBD-I conversion.

Fitment Note: This unit connects directly to the factory engine harness. Ideally suited for vehicles retaining the stock instrument cluster and chassis electronics.

Technical Specifications

Summary & What’s Included

The kit provides a comprehensive solution for integrating a standalone ECU into a classic Honda chassis. By adhering to the factory OBD-I pinout standard, it ensures that your B-Series engine receives the precise control it needs for modern performance standards.

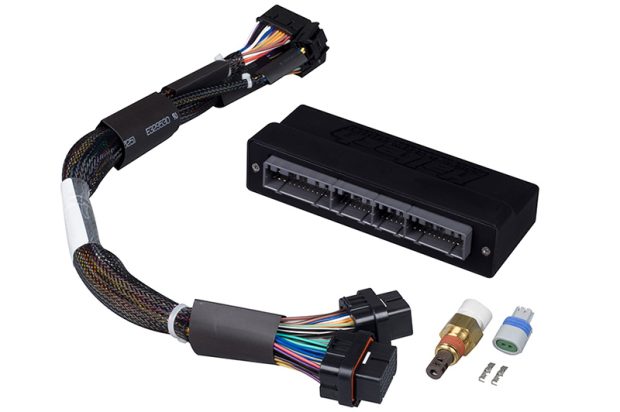

Includes:

• Injection Molded Plastic Plug ‘n’ Play Adaptor Harness
• M14 x 1.5 Air Temp Sensor
• Air Temp Sensor Plug and Pins
• Auxiliary I/O 16 Pin Tyco Plug and Pins
