Elite 1000/1500 Mazda Miata (MX-5) NA Plug’n’Play Adaptor Harness

Name: Elite 1000/1500 Mazda Miata (MX-5) NA Plug'n'Play Adaptor Harness
SKU: HT-140872
Price: 460.00 USD
Availability: InStock

$460.00

Suits: Mazda Miata (MX-5) NA 1.6L and 1.8L with 2-plug, 2-row factory ECU. Manual transmission only.

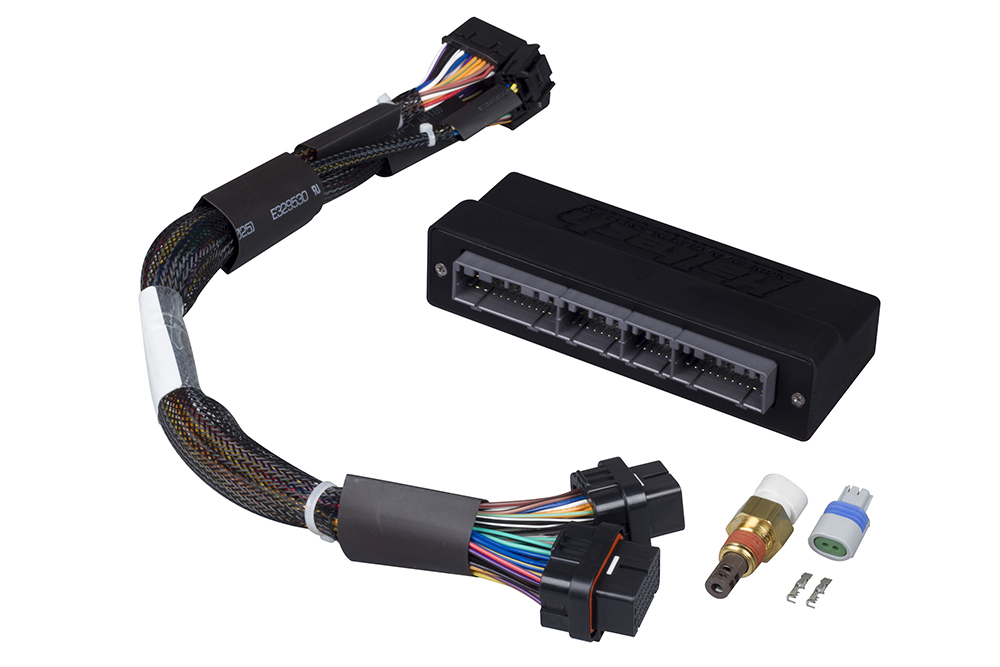

Includes: Plug’n’Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 pin Tyco plug and pins.

Notes: Does not support USDM OBDII 96-97, Special Edition SE and Anniversary models.
All manual transmission 1.6L variants will require the factory throttle position sensor to be unplugged and removed. A full-range throttle position sensor alternative must be installed for correct functionality. Failure to do so will result in erratic behavior of the ECU at wide-open throttle along with damage to the ECU.

SKU: HT-140872 Category: NA MX-5 (Miata)

Description
Reviews (0)

Elite Integration: Adaptor Harness for NA Miata

The Elite 1000/1500 Plug’n’Play Adaptor Harness allows for the installation of Haltech’s mid-tier ECUs into the Mazda MX-5 NA chassis (1990-1995). This harness bridges the factory wiring to the Elite 1000 or 1500, offering greater I/O capacity and features than the Elite 750. It is the preferred choice for builds requiring advanced features like drive-by-wire (with retrofit), multiple CAN devices, or extensive data logging.

Engineering for Advanced Builds

This harness is wired to support the full capabilities of the Elite 1500, including sequential injection and direct fire ignition for the BP engine. It correctly routes the factory CAS signals and supports the idle control valve. The harness includes an auxiliary I/O connector for adding sensors such as fuel pressure, oil pressure, or ethanol content directly to the ECU. It facilitates the conversion to Speed Density tuning with the included air temperature sensor.

Operational Benefits

With this adaptor, users can leverage the Elite 1500’s advanced features, including traction control, launch control, and 4D tuning maps. The installation is reversible and non-destructive. The harness ensures reliable connection for both street and track use, maintaining factory dashboard functionality.
