Elite 1000-2500 Mazda RX7 FD3S-S7&8 Plug ‘n’ Play Adaptor Harness

Rotary Precision: Elite Adaptor for RX-7 FD Series 7 & 8

The late-model Mazda RX-7 FD3S (Series 7 and 8) utilizes a sophisticated 16-bit ECU to manage its sequential twin-turbo 13B-REW engine. The Elite 1000-2500 Plug ‘n’ Play Adaptor Harness allows owners to replace this complex factory computer with a modern Haltech Elite ECU. This harness is the critical link for properly tuning a rotary engine, offering the precise fuel and ignition control required to prevent detonation and apex seal failure. It connects directly to the factory 4-row ECU connector, providing a seamless installation that retains key vehicle functions.

Engineering for the 13B-REW

The Series 7/8 FD harness is wired to support the specific requirements of the late-model rotary. It correctly interfaces with the Metering Oil Pump (MOP), a critical component for engine longevity (Note: Elite 1500/2500 is recommended for full MOP position control). The harness manages the complex solenoid rack used for the sequential turbo system, or simplifies control for single-turbo conversions. It routes the Crank Angle Sensor (CAS) signals via shielded wires to ensure interference-free RPM data. Additionally, it supports the factory fans, air conditioning request, and power steering pressure switch to maintain street drivability.

Operational Benefits

Installing this adaptor enables the use of engine protection strategies based on oil pressure and lean-out conditions. It allows for the removal of the MAF sensor in favor of a responsive MAP-based tune using the included air temperature sensor. The harness facilitates the use of the Elite’s advanced rotary-specific features, such as split-timing maps and trailing ignition split control, which are vital for extracting safe power from the wankel engine.

Fitment Guide

• Mazda RX-7 FD3S: Series 7 (1996-1998) & Series 8 (1999-2002)
• ECU Header: 4-Row Connector (Check visual match)

Technical Specifications

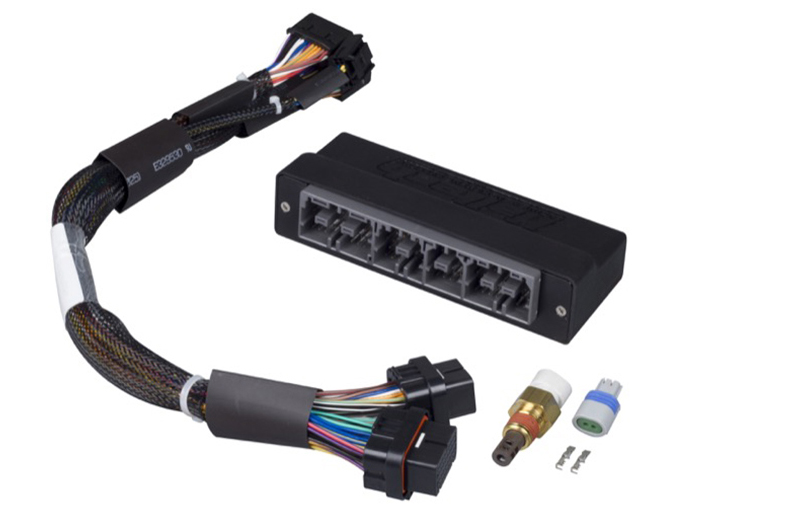

Summary & Includes

Includes:

• 1 x Injection Molded Plug ‘n’ Play Adaptor Harness
• 1 x M14 x 1.5 Air Temp Sensor with matching plug and pins
• 1 x Auxiliary I/O 16 Pin Tyco plug and pins

Note: Manual transmission only. Fits 4-row ECU plug models (Series 7 & 8).
