Elite 2000/2500 Toyota Chaser JZX100 (1JZ-GTE) Plug ‘n’ Play Adaptor Harness Kit

$460.00

Suits: Plug ‘n’ Play replacement of the factory ECU for Toyota Mark II/Cresta/Chaser JZX100 1JZ-GTE VVT-I (JDM)
Soarer (MY96-01) JZZ30 1JZ-GTE VVT-I (JDM)
Manual transmissions only.

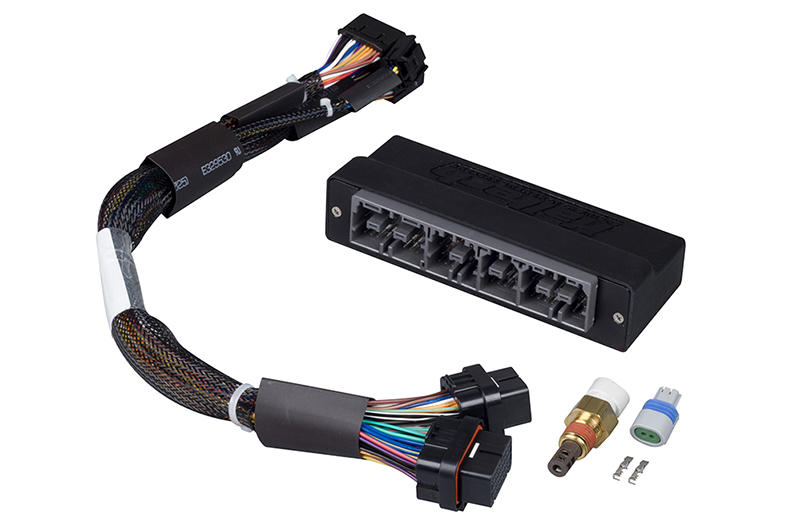

Includes: Elite 2500 ECU with DBW and Race Functions, injection molded plastic plug ‘n’ play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins, USB programming cable.

Notes: Installation of this Haltech product will prevent the factory TRC and ETCS systems from operating. Warning lights will illuminate on the dash cluster to indicate these systems are disabled. Removal of the TRC and ETCS warning bulbs from the dash cluster is recommended.

Precision Integration: Elite Adaptor Harness for Toyota 1JZ-GTE VVT-i

For the JDM enthusiast optimizing a Toyota Chaser JZX100 or Soarer JZZ30, the transition to a standalone engine management system is the definitive step toward unlocking the 1JZ-GTE’s true potential. The Elite 2000/2500 Plug ‘n’ Play Adaptor Harness Kit is the critical interface engineered to bridge the gap between your factory chassis wiring and the advanced processing power of a Haltech Elite ECU. This is not a universal pigtail; it is a vehicle-specific, injection-molded interface that connects directly to the OEM header plug. By preserving the integrity of the factory wiring loom, this harness eliminates the invasive and risky process of cutting, splicing, and repinning, ensuring a reversible and reliable installation that maintains the vehicle’s electrical fidelity.

Engineering and Signal Integrity

The 1JZ-GTE VVT-i engine utilizes a complex array of sensors, including the specific reluctor-type crank and cam position sensors and the ETCS-i (Electronic Throttle Control System – intelligent) hardware. This adaptor harness is meticulously wired to route these critical analog and digital signals to the appropriate inputs on the Elite 2500 ECU. The harness supports the Elite’s advanced Drive-By-Wire (DBW) capabilities, allowing for full control over the factory electronic throttle body (requires Elite 2500 for DBW support). The construction features high-temperature automotive-grade wire insulation and OEM-specification terminals to minimize voltage drop and protect against signal interference (EMI), which is crucial for maintaining precise ignition timing and fuel delivery under high-boost conditions.

Operational Benefits and Limitations

Installing this adaptor harness provides immediate access to the Elite ECU’s tuning suite, enabling features such as precise boost control, flex-fuel integration, and engine protection strategies. However, integration with a vintage chassis involves specific trade-offs. While the harness provides full engine control, the factory Traction Control (TRC) and ETCS-i systems are managed by the stock ECU logic that is bypassed. Consequently, the TRC and ETCS warning lights on the dashboard will illuminate. This is a standard characteristic of standalone conversion in this platform, and for a clean cabin aesthetic, it is recommended to remove these specific bulbs from the instrument cluster. This harness is designed for manual transmission applications; automatic transmission control is not supported through this adaptor.

Fitment Guide

This harness is engineered for specific JDM Toyota platforms equipped with the 1JZ-GTE VVT-i engine and manual transmission.

Toyota Chaser / Mark II / Cresta (JZX100): 1JZ-GTE VVT-i
Toyota Soarer (JZZ30): MY96-01 1JZ-GTE VVT-i

Technical Specifications

Parameter	Specification
Supported ECU	Haltech Elite 2000 or Elite 2500
Throttle Control	Supports DBW (Elite 2500 required)
Transmission	Manual Transmission Only
Harness Type	Plug ‘n’ Play Adaptor (Injection Molded)
