Elite CAN HUB 4 Port DTM-4

Centralize Your Haltech CAN Network

The Elite CAN HUB 4 Port DTM-4 is the central nervous system for expanded Haltech engine management setups. As you add sophisticated peripherals to your build—such as the IC-7 Digital Dash, WB1/WB2 Wideband Controllers, CAN Keypads, or I/O Expanders—daisy-chaining devices can become messy and complex. The Elite CAN Hub resolves this by providing a central distribution point, allowing for a clean “star” topology or a streamlined branch in your CAN bus network.

Robust Connectivity for Professional Looms

Engineered for the rigors of motorsport, this hub features four parallel DTM-4 ports. This allows you to connect up to three peripheral devices to a single ECU port (using the fourth port as the input/link to the ECU). The DTM-4 connectors are the industry standard for race-spec electronics, offering superior environmental sealing (IP67) and vibration resistance compared to standard plastic connectors. This ensures that your critical data network remains intact even during the high G-forces and vibration of competitive racing.

The hub is a passive device, meaning it does not require separate power; it simply distributes the CAN High, CAN Low, 12V Power, and Ground signals shared across the Haltech CAN bus. This simplifies wiring significantly, as you do not need to run individual power feeds to every sensor or module.

Technical Specifications

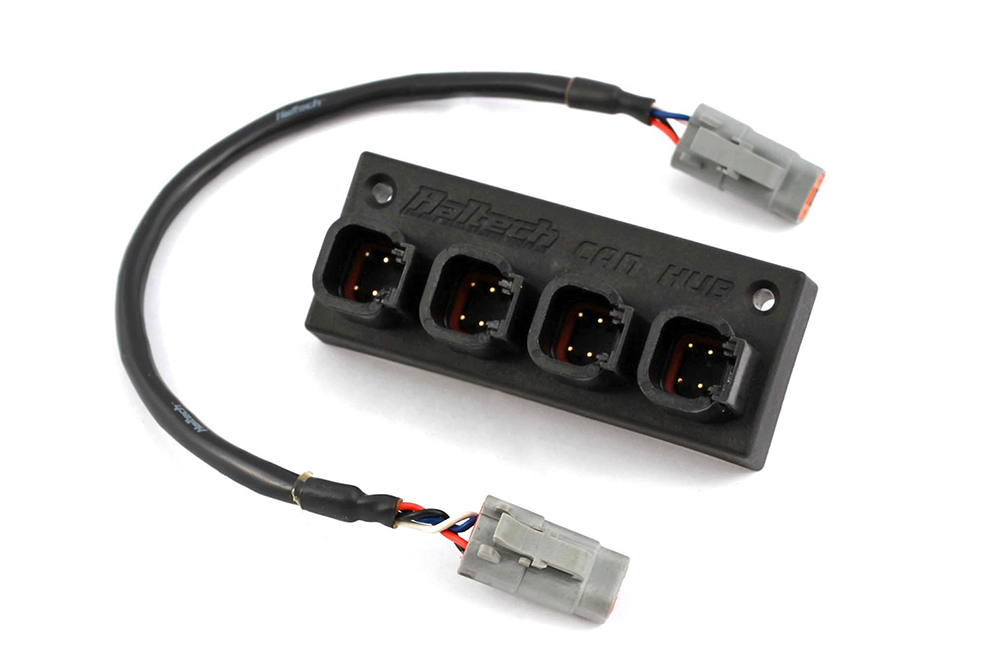

Includes

• 1 x Elite 4 Port CAN Hub
• 1 x Elite CAN Cable DTM-4 to DTM-4 (300mm)

Expansion Note: Multiple hubs can be daisy-chained together if more than 3 devices need to be connected. Always ensure proper network termination rules are followed when expanding the CAN bus.
