Professional Integration for Elite PRO and Dash Systems
In the high-stakes world of automotive wiring, the difference between a reliable race car and a DNF often comes down to the quality of the connections. The Elite PRO Direct Plug-in and iC-7 / uC-10 Auxiliary Connector Kit is a premium, terminated harness solution designed to facilitate the seamless integration of auxiliary inputs and outputs into your Haltech ecosystem. Whether you are adding extra sensors to an Elite PRO Plug-in ECU or expanding the I/O capabilities of your iC-7 or uC-10 display dash, this kit provides the professional-grade hardware required. It eliminates the need to source individual pins, plugs, and specialized crimp tools, offering a pre-terminated 300mm (12″) flying lead harness that allows for easy splicing into your custom vehicle wiring.
Engineering Deep-Dive: Connector Reliability & Sealing
This kit centers around the robust AMP Superseal and DTM connector standards, chosen for their superior resistance to vibration, moisture, and thermal cycling. The primary 34-pin AMP connector features a 4-row, keyway-specific design that ensures positive locking and high-density connectivity in a compact footprint. The terminals are precision-crimped to 16-18 AWG automotive-grade wire, utilizing cross-linked polyethylene insulation for maximum heat resistance in the engine bay. By providing a 300mm flying lead, Haltech ensures that the critical crimp connections at the plug are factory-perfect, leaving the installer to perform the simpler wire-to-wire joins further down the line. This minimizes voltage drop and resistance issues that plague amateur harness builds.
Operational Benefits: Expanding System Capabilities
For users of the Elite PRO Plug-in ECUs, this harness is the gateway to expansion. It breaks out the auxiliary pins necessary for adding features like Flex Fuel sensors, boost control solenoids, or additional pressure transducers that were not supported by the factory wiring harness. For iC-7 and uC-10 Dash owners, this connector kit is essential for accessing the unit’s rear I/O, enabling hard-wired inputs for turn signals, high beams, or fuel level senders, as well as outputs for controlling external relays or warning lights. It transforms the dash from a passive display into an active control hub.
Fitment and Compatibility
This kit is a direct replacement or expansion part for:
- Haltech Elite PRO Plug-in ECUs: Auxiliary Port connection.
- Haltech iC-7 Display Dash: Main rear connector.
- Haltech uC-10 Display Dash: Main rear connector.
It is ideal for repairing damaged harnesses or creating a second harness for a quick-swap application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Length | 300mm (12 inches) |
| Main Connector | AMP 34-Pin (4 Row, 4 Keyway) |
| CAN Connector | DTM-4 (Deutsch) |
| Wire Type | Automotive Grade, High-Temp Insulation |
| Sealing | Environmentally Sealed Housing with Blanking Plugs |
Summary & Includes
The HT-131001 is the definitive service and expansion harness for your advanced Haltech electronics. It provides the secure, professional interface needed to add functionality without compromising reliability.
Includes:

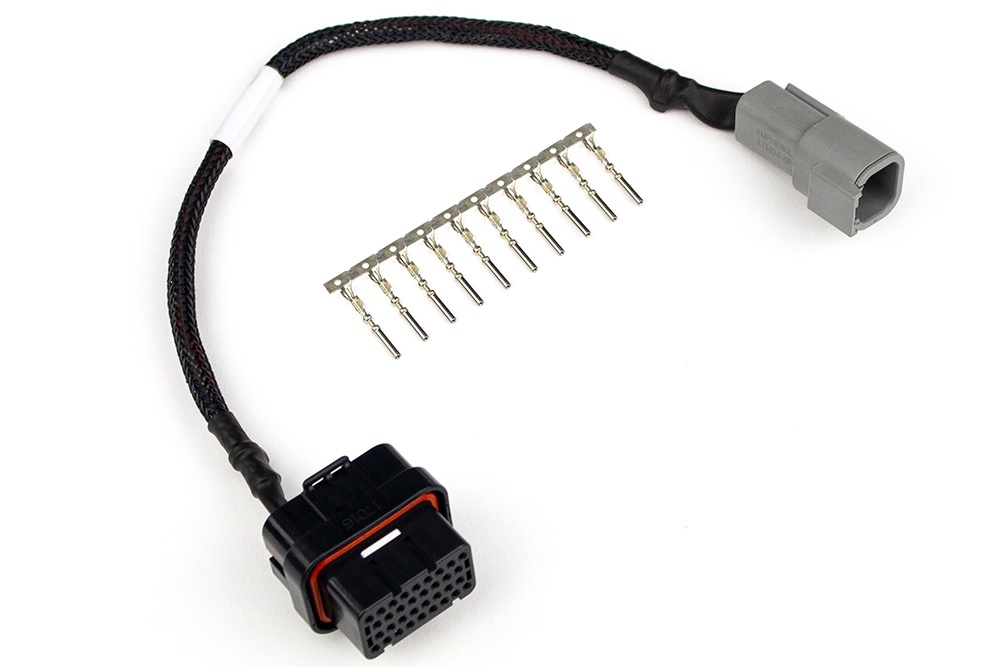

- 1 x Terminated Harness (300mm length)
- 1 x AMP 34 Pin Connector (4 Row, 4 Keyway)
- 1 x DTM-4 CAN Connector
- 15 x Spare Pins to suit AMP Connector
- 30 x Sealing Plugs (for unused pin cavities)
Note: This harness is typically included with new Elite Pro Plug-ins and Dash units. Purchase this kit if a replacement or secondary harness is required.
