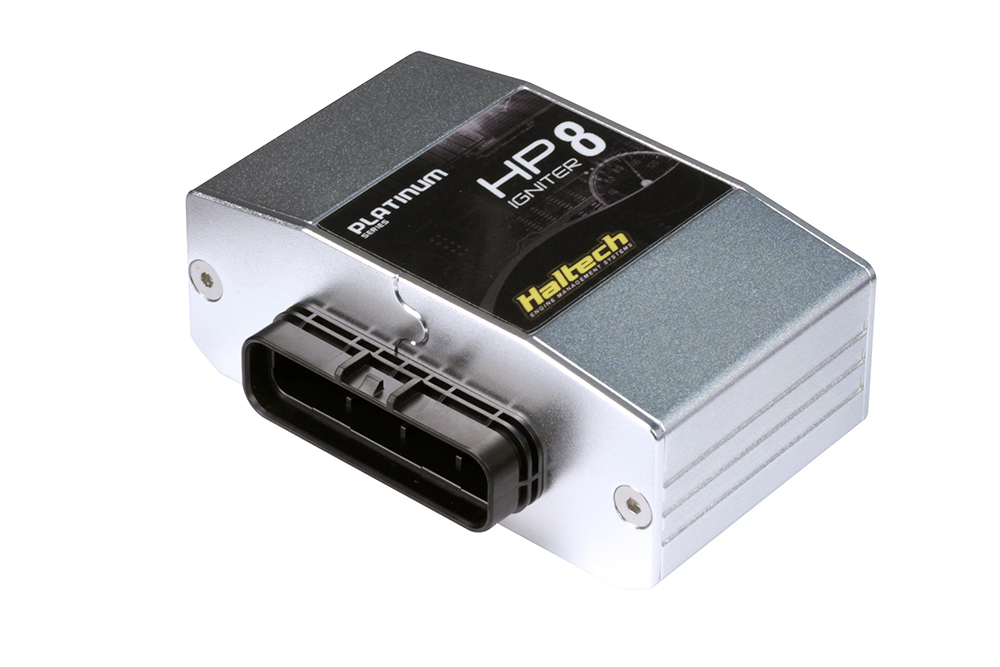

High-Density Ignition Power: HPI8 8-Channel Module Only
The HPI8 High Power Igniter – 15 Amp Eight Channel Module Only is the heart of a world-class sequential ignition system. Designed for high-end standalone ECU integration, this module acts as a high-current power stage, amplifying the trigger signals from the ECU to drive up to eight “Dumb” ignition coils. With a continuous rating of 15 amps per channel, it is engineered for extreme duty cycles on LS-swap, 1UZ, and exotic multi-cylinder or multi-rotor racing engines. This SKU is intended as a replacement module or for builders who already have their custom harness integration in place, providing the electrical muscle needed for absolute detonation protection.
Engineering Principles: Signal Amplification and Noise Isolation
In a high-current Inductive ignition system, the switching of the coil primary can generate massive electrical noise. The HPI8 is engineered with advanced MOSFET technology to perform this switching with microsecond precision while isolating the ECU from high-voltage flyback. This Analogue-to-Digital interface (trigger signal to ground switching) is critical for maintaining accurate Ignition Timing. By centralizing the switching in this module, builders can keep the high-current noise localized, preventing EMI from interfering with the ECU’s sensor data. The aluminum heatsink chassis is a calculated design feature, ensuring that even at 10,000+ RPM on a V8, the module remains within its safe operating temperature range.
Operational Benefits for the Serious Tuner
The primary benefit of the HPI8 is Consistency. When tuning a high-boost 2JZ or RB26 running an 8-coil wasted-spark or sequential setup, the tuner needs to know that the spark energy will not taper off as the session progresses. The HPI8’s 15-amp capacity ensures that the magnetic field in each coil is fully saturated every time. This consistency allows for a much more aggressive fuel map calibration and higher boost levels without the risk of spark blow-out. For the calibrator, the HPI8 is a tool that removes one of the most common variables in engine failure, providing a stable foundation for extracting maximum power safely.
Technical Specs Table
| Parameter | Specification |
|---|---|
| Model | HPI8 (Module Only) |
| Number of Channels | 8 Independent |
| Current Rating | 15 Amps Continuous per channel |
| Compatible Coils | All 12V Inductive “Dumb” Coils |
| Enclosure Material | Anodized Aluminum with Mounting Flanges |
| Protection Logic | Thermal and Over-Current Protection |
Summary & Includes
The HPI8 Module Only is the core component for high-output 8-channel ignition amplification. Includes: 1 x HPI8 Eight-Channel Module. Note: This SKU does not include the connector or wiring loom; see HT-020042 or HT-020043 for kits.
