NEXUS R5 Universal Wire-In Harness 5 Metre Length Length: 5M

Extended Reach for Specialized Nexus R5 Installations

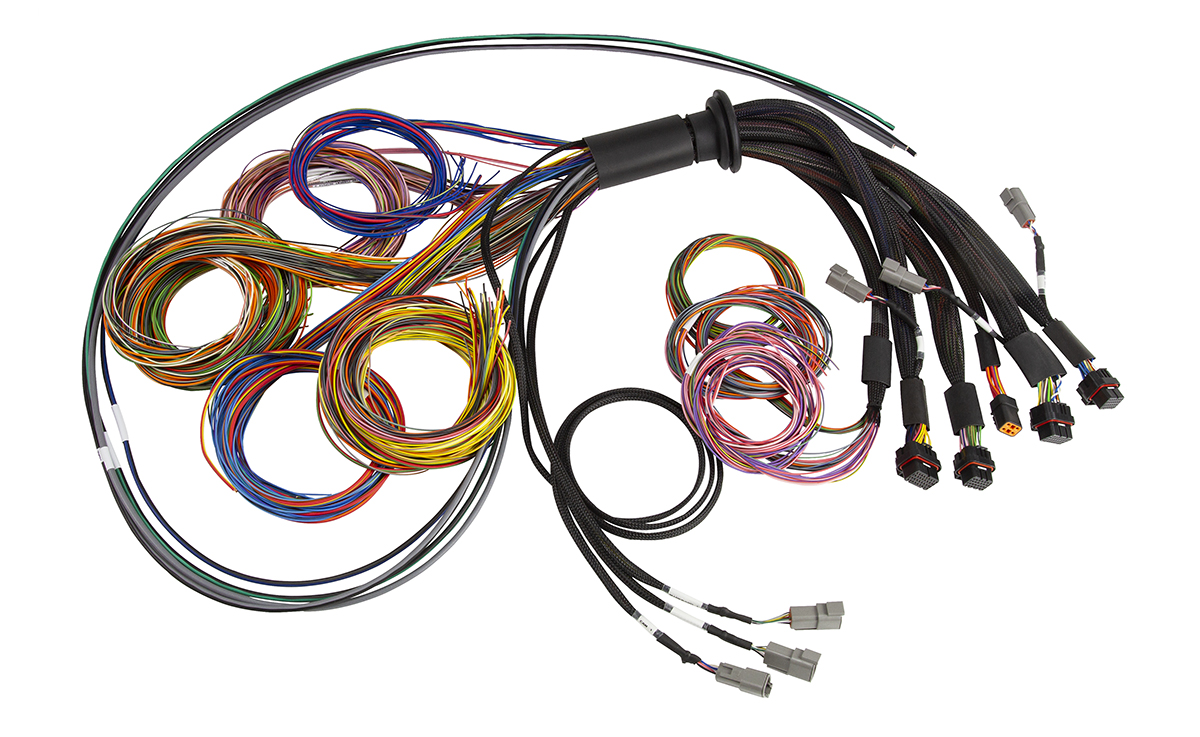

The Nexus R5 Universal Wire-In Harness (5 Meter) is the extended-length version of Haltech’s premium flying lead harness, designed specifically for vehicles with rear-mounted engines, large chassis, or marine applications where the VCU is located far from the engine bay. At 16 feet (5 meters) in length, this harness eliminates the need for unreliable butt-splices and extensions when wiring a drag car, off-road trophy truck, or a large boat. It connects directly to the Nexus R5’s five main connectors and provides color-coded, labeled wires for every input and output available on the unit.

Engineering Deep-Dive: Handling Voltage Drop Over Distance

Running wires over long distances introduces resistance, which causes voltage drop. This is particularly critical for the Nexus R5’s High Current Outputs (HCOs) which drive fuel pumps and fans. Haltech has engineered this harness with appropriately sized conductors to ensure that even at 5 meters, the power delivery remains stable and within tolerance. The High Current Outputs (2 to 12) and Extra High Current Outputs (1 to 4) are specifically run at the full 5-meter length to support remote-mounted components. The TXL insulation minimizes bulk while offering superior protection against the abrasion and vibration inherent in long harness runs through a chassis.

Operational Benefits: The Solution for Dragsters and Boats

In a dragster, the electronics are often in the nose or behind the driver, while the engine is in the rear. A standard 2.5m harness simply won’t reach. The HT-185201 solves this problem, allowing for a continuous, unbroken run of copper from the VCU to the sensors and actuators. This improves signal-to-noise ratio and reduces the potential for failure points at splice junctions. The harness is fully populated, giving access to every feature of the R5, including transmission control, multiple widebands, and extensive data logging channels.

Fitment and Application Scope

Designed for:

• Rear Engine Vehicles: Dragsters, VW bugs, Porsches, MR2s.
• Marine: Powerboats with helm-mounted electronics and stern-mounted engines.
• Off-Road: Trophy trucks with central electronics mounting.

Technical Specifications

Summary & Includes

The HT-185201 ensures that distance is no barrier to performance. It provides the reach needed for specialized chassis without compromising electrical integrity.

Includes:

• 1 x Nexus R5 Wire-in Harness (5m)
• 5 x Main ECU Connectors (Pre-terminated)
• 4 x CAN Connectors
• Fully populated with TXL wire

Note: The harness is bulky due to the length and wire count. Plan your routing paths carefully through the chassis to accommodate the bundle size.
