Plug and Pins Only – Matching Set of Deutsch DTM-12 Connectors (7.5 Amp)

Deutsch DTM-12 Connector Set: High-Density, Low-Amp Connectivity

When space is at a premium and amperage requirements are low, the Deutsch DTM Series is the engineer’s choice. This 12-Pin DTM Connector Set allows for the termination of up to 12 individual circuits in a compact footprint. Rated for 7.5 Amps per pin, the DTM series utilizes size 20 contacts (smaller than the standard DT size 16). This makes it ideal for bundling multiple sensor signals—such as input/output harnesses for ECUs, data loggers, or complex switch panels—into a single, waterproof interface.

Engineering: The Advantage of DTM

The DTM series maintains the legendary ruggedness of the Deutsch brand—IP67 waterproofing, robust thermoplastic housings, and secure wedgelocks—but scales it down. The 7.5A rating is sufficient for virtually all 5V and 12V sensor signals, CAN bus communication lines, and low-power LED lighting. This matching set includes both the Male (Plug) and Female (Receptacle) housings, along with the necessary wedgelocks and pins, giving you everything needed to create a connection point in your harness.

Fitment

• Application: Sensor harnesses, ECU I/O, CAN Bus hubs.
• Wire Size: 20-24 AWG (Miniature wire).

Technical Specifications

Summary & What’s Included

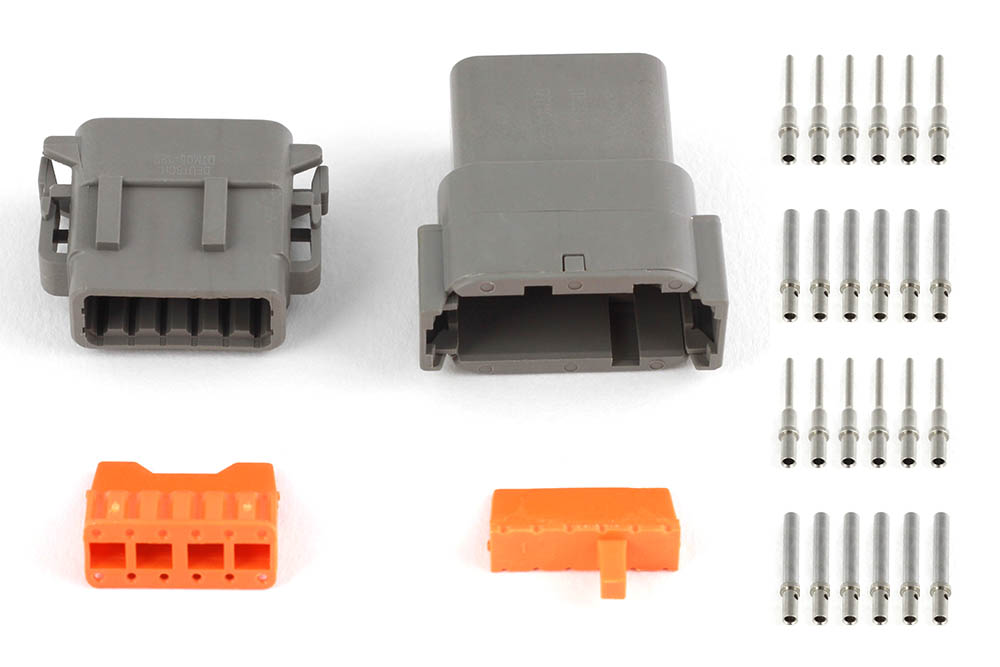

Includes:

• 1 x DTM-12 Male Plug Housing
• 1 x DTM-12 Female Receptacle Housing
• 2 x Wedgelocks
• Matching Set of Male & Female Pins (Size 20)
