Plug and Pins Only – Matching Set of Deutsch DTM-8 Connectors (7.5 Amp)

Deutsch DTM-8 Connector Set: Compact Signal Distribution

The Deutsch DTM-8 Connector Set provides a robust, sealed connection for 8-wire interfaces. Rated at 7.5 Amps per pin, this DTM (Deutsch Miniature) connector is significantly smaller than a standard DT-8, making it perfect for tight engine bays or under-dash wiring. It is commonly used for sub-harnesses, such as grouping ignition coils (signal side), injectors (on small engines), or connecting a digital dash display.

Engineering: Sealed Reliability

Despite its small size, the DTM-8 offers the same environmental protection as larger Deutsch connectors. Silicone rear grommets seal each wire individually, and a peripheral facial seal ensures no water enters the connection when mated. The kit includes solid-barrel pins for the ultimate in crimp reliability and electrical connection stability.

Fitment

• Application: Sub-harness connections, Dash displays, Sensor groups.
• Wire Size: 20-24 AWG.

Technical Specifications

Summary & What’s Included

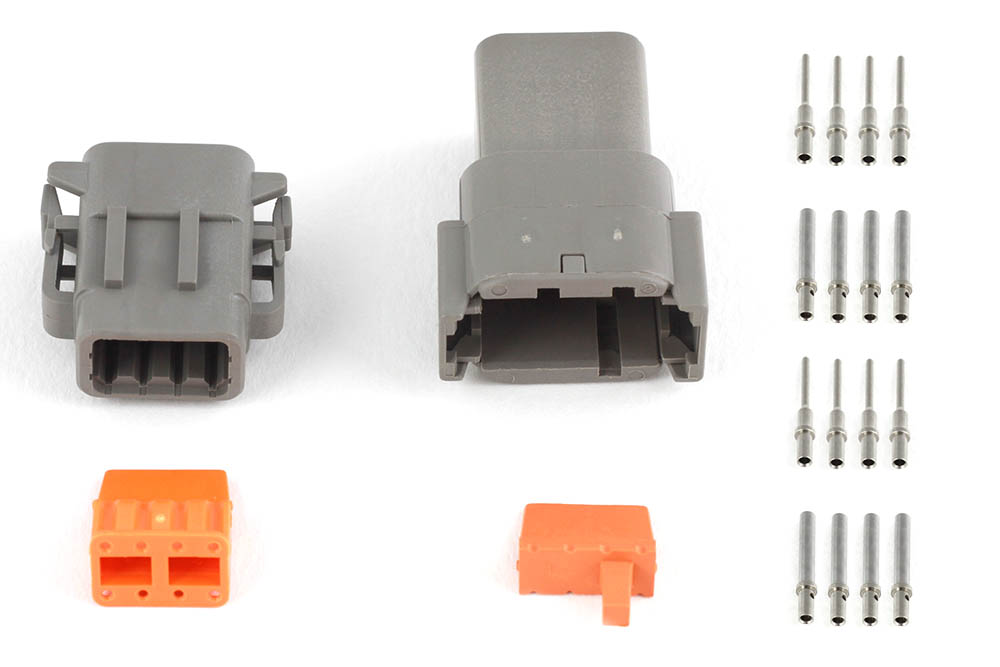

Includes:

• 1 x DTM-8 Male Plug Housing
• 1 x DTM-8 Female Receptacle Housing
• 2 x Wedgelocks
• Matching Set of Male & Female Pins (Size 20)
