Quad Channel OEM Igniter (DUMB)

Robust Ignition Control: Quad Channel OEM Igniter (DUMB)

In the landscape of performance electronics, the term “Dumb” refers to an igniter that operates without internal logic or digital feedback, relying entirely on the ECU for control. The Quad Channel OEM Igniter (DUMB) is a high-current switching module designed to bridge the gap between a standalone ECU integration and four independent “Dumb” ignition coils. This is the definitive solution for sequential ignition on 4-cylinder engines or for running two units on a V8. By offloading the high-current switching to this dedicated module, you protect your ECU’s internal circuitry and ensure that the coils receive the power needed for detonation protection in high-boost K-swap or SR20DET builds.

Engineering Principles: Logic-to-Current Conversion

The Quad Channel Igniter functions as a quadruple high-speed electronic switch. It takes a low-current 5V logic trigger from the ECU and pulls the negative terminal of each ignition coil to ground. This Analogue-to-Digital interface logic allows the ECU to maintain absolute control over the Ignition Timing and dwell. Unlike smart coils with internal igniters, this setup allows the tuner to mount the heat-generating electronics away from the cylinder head, which is critical for long-term reliability in racing. The module features high-speed power transistors that minimize signal latency, ensuring the spark is delivered at the exact millisecond required for optimal combustion during fuel map calibration.

Operational Benefits for Professional Tuning

For the professional tuner, the Quad Channel Igniter provides a level of durability that is hard to find in factory components. It is built to handle the intense thermal and electrical stresses of continuous high-RPM operation. In a fuel map calibration scenario, the consistency of this igniter ensures that spark energy remains stable pull after pull, allowing the tuner to find the true Maximum Brake Torque (MBT) timing timing. Furthermore, the inclusion of the thermal paste and mounting hardware in this kit is a critical engineering detail; proper heat dissipation into the chassis prevents timing jitter and hardware failure during endurance track events. It is a vital component for any builder seeking the reliability of a sequential Coil-on-Plug (COP) ignition setup.

Installation and Harness Integration

This igniter kit is designed for a professional harness integration finish. It includes the mounting bracket, thermal paste, and matching plugs and pins. The 5-pin Bosch Junior Timer connector is used for the ECU control side, and a separate high-current connector handles the coil paths. Installation requires bolting the unit to a clean, flat aluminum surface using the provided thermal paste to ensure efficient cooling. It is compatible with all Haltech Elite and Nexus series ECUs, as well as most standalone systems that support logic-level ignition triggering. For V8 builds, two modules can be used in parallel to achieve full 8-channel sequential ignition.

Technical Specs Table

Summary & Includes

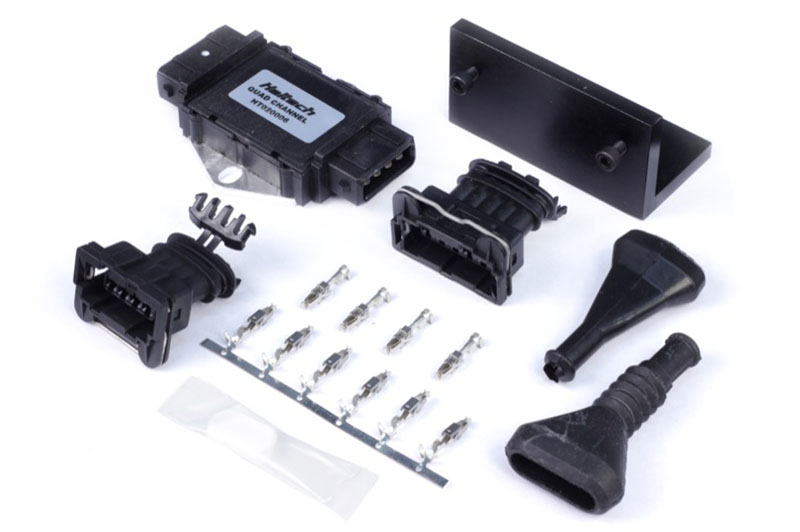

The Quad Channel OEM Igniter is the professional foundation for sequential 4-cylinder ignition. Includes: 1 x Quad-Channel Module, Mounting Bracket, Thermal Paste, and full Connector Set. Note: Mandatory for high-current applications utilizing “Dumb” ignition coils.
