Plug and Pins Only – Bosch 5 Pin Junior Timer Female Connector

Signal Protocol Integrity: Bosch 5-Pin Junior Timer Connector

In the hierarchy of automotive interconnects, the Bosch Junior Timer series is renowned for its reliability in high-vibration engine environments. The Plug and Pins Only – Bosch 5 Pin Junior Timer Female Connector is the essential electrical interface for specific high-performance peripherals, most notably the ECU control/Switch side of the Haltech HT-020006 Quad Channel OEM Igniter. Maintaining the integrity of this connection is foundational for harness integration, as any resistance on the trigger pins will directly result in timing jitter and reduced detonation protection.

Engineering Principles: Contact Reliability and Seal Quality

The Bosch Junior Timer system uses a flat-blade terminal design that provides a large surface area for electrical contact. This is critical for the Analogue-to-Digital interface of ignition trigger signals, where millivolt accuracy is required. The housing is constructed from high-temp, glass-reinforced polymer that resists heat warping, which is common in the tight confines of an LS-swap or K-swap engine bay. The internal locking mechanism ensures that the pins remain seated even under extreme harmonic vibration. This connector set is specifically intended for the control side of the igniter, where it receives the 5V logic pulses from the standalone ECU integration to command spark events.

Operational Benefits for Custom Igniter Harnesses

For the custom loom builder, this kit is the professional prerequisite for a clean HT-020006 installation. It allows you to terminate your ECU’s ignition trigger wires with a factory-standard interface, eliminating the need for unreliable spade connectors or pigtail splices. In a fuel map calibration context, having a secure, low-resistance trigger path means the tuner can trust that the Ignition Timing is consistent cylinder-to-cylinder. Furthermore, the 5-pin configuration handles the switching logic for four independent channels plus a signal reference, enabling full sequential ignition in a compact, modular footprint. The high-quality weatherproof design ensures that these critical signals remain stable in all environmental conditions.

Technical Specs Table

Summary & Includes

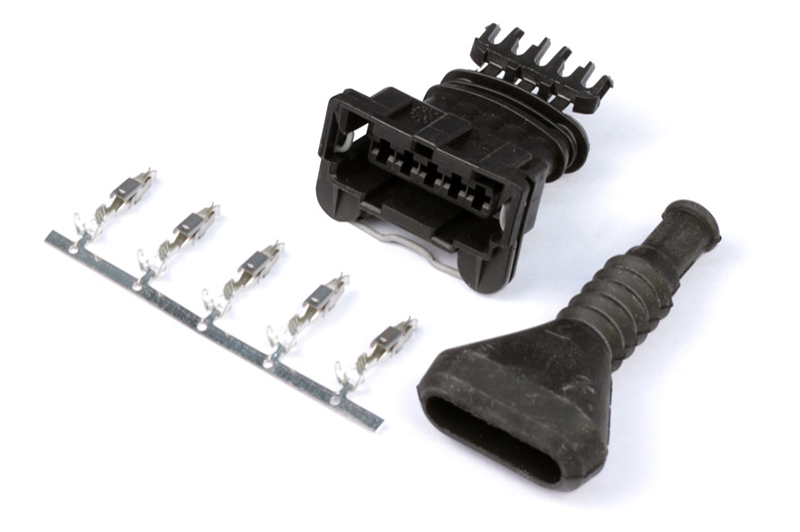

The Bosch 5-Pin Junior Timer connector is the essential link for Quad-Channel igniter control. Includes: 1 x 5-Pin Connector Housing and 5 Precision Crimp Pins. Note: Specifically designed for the control/input side of the HT-020006 igniter.
