“Red” Single Channel Hall Effect Sensor Thread: M12x1.0

High-Frequency Accuracy: “Red” Single Channel Hall Effect Sensor (M12)

In the landscape of engine management, the “Red” Single Channel Hall Effect Sensor is a high-performance specialist designed for rapid target detection. Featuring a standardized M12x1.0 thread, this sensor is a staple for professional standalone ECU integration, providing the digital signal required for crankshaft position, camshaft phase, and wheel speed sensing. Its distinctive red cap signifies its high-frequency capability, making it the preferred choice for tuners who require sub-degree timing accuracy in 2JZ, RB26, or LS-swap configurations. This sensor is the first line of defense in maintaining detonation protection through a stable and jitter-free RPM reference.

Engineering Principles: Digital Frequency Signal Logic

The “Red” sensor is an active Hall-effect device that converts the passing of ferrous metal teeth into a clean 0V to 12V digital square wave. Unlike inductive (reluctor) sensors, this Hall sensor’s output is independent of target speed, meaning it provides a rock-solid ground speed or engine speed signal even at 0.1 MPH or low-speed cranking. This Analogue-to-Digital interface happens internally, providing a stable signal to the ECU’s SPI (Standard Pulse Input) or DPI (Digital Pulse Input). In a fuel map calibration context, this ensured that the ECU’s trigger system is synchronous with the crankshaft’s true physical position, which is foundational for finding the Maximum Brake Torque (MBT) timing cell.

Operational Benefits: Traction and Sequential Firing

Moving to a high-frequency “Red” Hall sensor allows the tuner to utilize advanced traction control strategies with confidence. By providing a clean digital pulse, the sensor enables the ECU to detect minute wheel speed accelerations, allowing for more aggressive power delivery without breaking traction. For Mazda 13B or high-RPM V8s, this sensor ensures that sequential ignition commands are followed perfectly, preventing the timing scatter that can occur with lesser sensors at 10,000+ RPM. The M12x1.0 threaded body allows for a secure, fine-threaded installation into custom brackets or factory block locations, providing a professional and vibration-proof mounting solution for harness integration.

Installation and Harness Integration

The Haltech “Red” sensor includes a matching set of Deutsch DTM 3 connectors (HT-031014), ensuring that the wiring meets modern motorsport standards. For optimal harness integration, use shielded cable for the signal wire to prevent EMI (Electromagnetic Interference). The sensor requires a 12V supply, signal, and signal ground. During installation, the air gap should be set between 1.0mm and 2.0mm depending on the target diameter. This sensor is universally suits wheel speed, crank, and cam duties across all professional standalone engine management platforms, including the Haltech Elite and Nexus range.

Technical Specifications

Summary & Includes

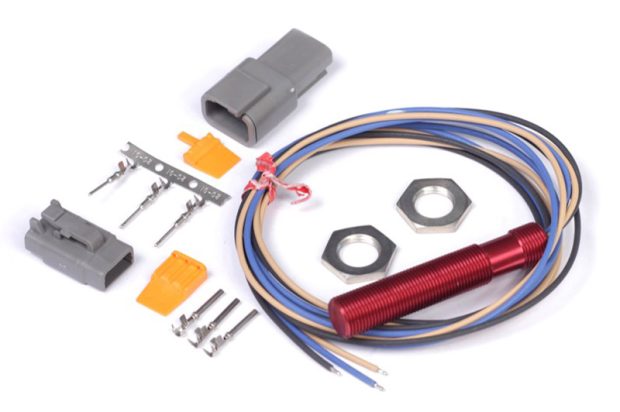

The “Red” M12 Hall Effect Sensor is the professional’s choice for high-speed target acquisition. Includes: 1 x “Red” Hall Effect Sensor and a Matching Set of Deutsch DTM 3 Connectors. Note: Specifically optimized for high-tooth count trigger wheels at high RPM.
